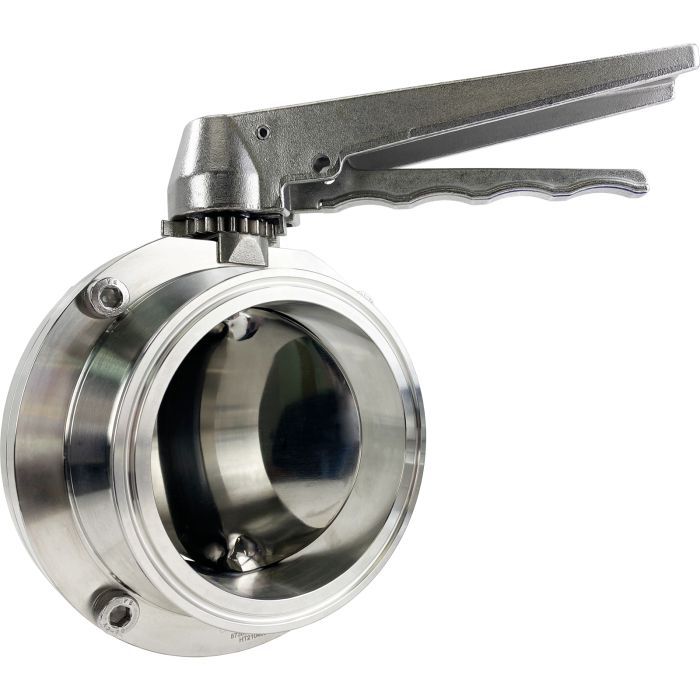

4" Sanitary Butterfly Valve, Tri-Clamp w/ Handle
SKU
574007
Series
5740
List Price: $268.00
Price:
$214.40
- Buy 3 for $192.96 each and save 10%
Valworx 574007 sanitary butterfly valves are typically used for food, beverage, pharmaceutical, personal care and pet care applications where sanitary construction is required, as well as for utility, process and corrosive environment applications where quick clamp applications are needed.
Forged valve bodies are machined and chamfered in a single set-up for a precise fit.Single piece disc/stem with disc polished to mirror finish 32 Ra finish on all wetted surfaces EPDM seat materials meets FDA CFR 177.2600 All materials comply with FDA and USDA requirements 316L stainless steel valve body and disc for superior corrosion resistance Standard Tri-Clamp ends for sanitary connections 304 stainless steel handle with trigger position control All valves are tested per API 598 Suitable for vacuum up to 29.5inHg
Forged valve bodies are machined and chamfered in a single set-up for a precise fit.
| Body | ASTM 316L stainless steel |
|---|---|
| Bolts/Nuts | ASTM 304 stainless steel |
| Bushings | Polypropylene |
| Disc/Stem | ASTM 316L stainless steel |
| Internal Finish | 32 Ra |
| Pipe Size | 4" ~ 4" |
| Port Size | 3.8 inch orifice, Cv 800 |
| Pressure (Max) | 140 PSI WOG |
| Temperature Range | -67 to 302 °F (-55 to 150 °C) |
| Type | 2-Way |
| Valve Seat | EPDM |
-
