Sanitary Butterfly Valve Gear Operator, 4"
Stock #
565934
Series
5659
List Price: $490.00
Price: $392.00
- Buy 3 for $352.80 each
Usually Ships: Same Day

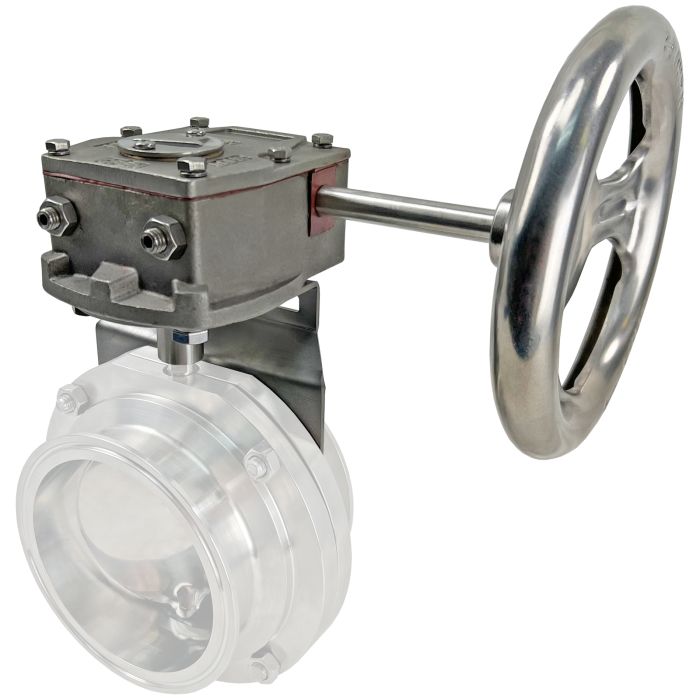

Valworx 565934 manual hand wheel gear operator for 4" sanitary butterfly valves. 316 stainless steel body, shaft and handwheel, and aluminum-bronze gear drive and Viton seals offer excellent corrosion resistance. Rugged IP65 weatherproof enclosure with visual valve position indicator. Adjustable travel stops are factory set. Standard bolts and nuts are made of SS304. Fits standard ISO5211 F07 mounting with 11mm square stem.
Includes 304 stainless steel bracket and coupler. Installed at no additional cost when ordered with a Valworx sanitary butterfly valve.
Includes 304 stainless steel bracket and coupler. Installed at no additional cost when ordered with a Valworx sanitary butterfly valve.
| Type | High Performance Gear Operator |
|---|---|
| Temperature Range | 5 to 320°F (-15 to 160°C) |
| Stem Size | 11mm |
| Disc Seat/Liner | EPDM |
| Shaft | 316 Stainless Steel |
| ISO 5211 Mount | F07 |
| Gear Ratio | 40: 1 |
| Gearing | Aluminum-Bronze |
| Handwheel | 316 Stainless Steel |
| Housing | 316 Stainless Steel |
| Output Torque | 200Nm |
| Seals | Viton |
Please email sales@valworx.com to request the specific files you need. Include the stock number of the valve and any accessories with your request.
