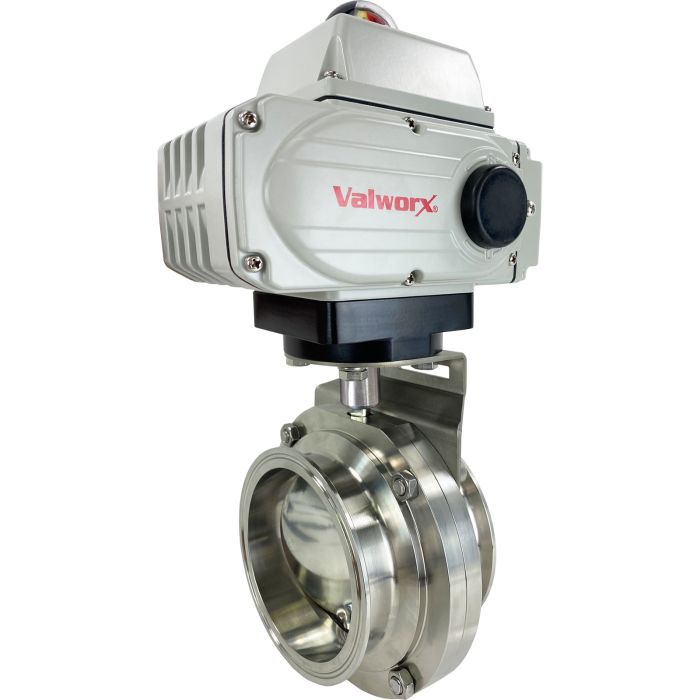

4" Sanitary Butterfly Valve, 110 VAC, Tri-Clamp
SKU
574107
Series
5741
List Price: $1,281.30
Price:
$1,025.04
- Buy 3 for $922.54 each and save 10%
Valworx 574107 electric actuated sanitary butterfly valves are typically used for food, beverage, pharmaceutical, personal care and pet care applications where sanitary construction is required, as well as for utility, process and corrosive environment applications where quick clamp applications are needed.
Butterfly Valve Standard Features
Forged valve bodies are machined and chamfered in a single set-up for a precise fit. Single piece disc/stem with disc polished to mirror finish 32 Ra finish on all wetted surfaces EPDM seat materials meets FDA CFR 177.2600 All materials comply with FDA and USDA requirements 316L stainless steel valve body and disc for superior corrosion resistance Standard Tri-Clamp ends for sanitary connections All valves are tested per API 598 Suitable for vacuum up to 29.5inHg
Electric Actuator Standard Features
Quarter turn operation with mechanical limits Rugged Type 4X weatherproof aluminum alloy housing Visual valve position indicator Manual override Heavy duty motor with overload protection Thermostatically controlled anti-condensation heater Two auxiliary limit switches to confirm valve position Self-locking all metal gear drive, no additional brake required CSA Listed per UL429 and CSA C22.2, CE mark
Options (see Accessories tab)
Butterfly Valve Standard Features
Electric Actuator Standard Features
Options (see Accessories tab)
| Anti-Condensation Heater | 4 watts thermostatically controlled |
|---|---|
| Body | ASTM 316L stainless steel |
| Bolts/Nuts | ASTM 304 stainless steel |
| Bushings | Polypropylene |
| Cycle Time | 25 seconds per 90° rotation (no load) |
| Disc/Stem | ASTM 316L stainless steel |
| Duty Cycle | 70% |
| Electrical Connections | Terminal strip, 1/2" NPT conduit (optional) / cable connector (included) |
| Enclosure | Aluminum alloy, polyester painted, SS fasteners |
| Enclosure Rating | Type 4X (IP67) weatherproof |
| Internal Finish | 32 Ra |
| Manual Override | 5mm hex drive with protective cover |
| Motor Protection | Thermal overload |
| Pipe Size | 4" ~ 4" |
| Port Size | 3.8 inch orifice, Cv 800 |
| Pressure (Max) | 140 PSI WOG |
| Temperature Range | -67 to 302 °F (-55 to 150 °C) |
| Type | 2-Way Electric Actuated 110 VAC |
| Valve Position Confirmation | 2 x SPST auxiliary limit switches rated 3A@125/250VAC,30VDC resistive load |
| Valve Seat | EPDM |
-
