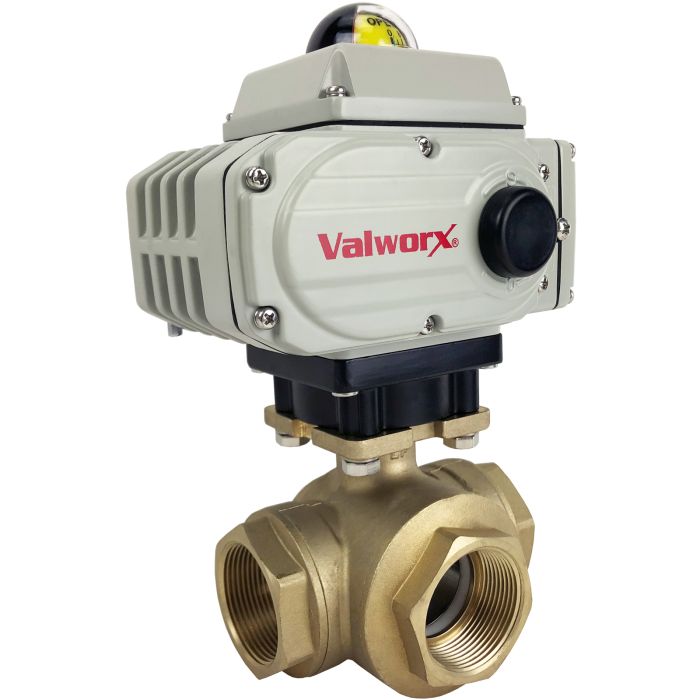

1 1/2" Electric 3-way Brass T-Port Valve 24 VDC, EPS Positioner
SKU
562412
Series
5624
List Price: $1,787.52
Price:
$1,430.02
- Buy 3 for $1,287.01 each and save 10%
Valworx 562412 electric actuated T-port brass valves can be used as a diverter, selector or mixing valve to control the flow of water, air, oil, and other media compatible with the materials of construction. Four ball seat design allows for full pressure at any port. Ideal where lead free and NSF approved construction are required for potable drinking water or other general industrial applications. The EPS- Electronic Positioning System provides an accurate valve positioning function whereby the movement of the actuator is controlled by a 4-20mA input control signal. Any change in the control input signal results in a corresponding and proportional change in the position of the ball. The internal microprocessor and closed loop feedback system continuously monitors and maintains accurate valve position. The valve will remain in the last known position with loss of electric power. There is no flow shutoff position with this type valve.
The ball valve is direct mounted to the actuator using the international standard ISO5211 mounting pad. Rugged unique integral motor/housing design provides higher torque in a very small package. Actuators are tested to rigorous UL and CSA standards and certified by CSA. Anti-condensation heater is standard and will help protect actuator against damage caused by condensation. Two auxiliary limit switches are provided to confirm valve position.
High performance ball and stem are made of 316 stainless steel rather than the typical plated brass. Energized PTFE ball seats are designed for low torque and extended cycle life. These ball valves offer a unique triple PTFE/Viton leak free stem seal design.
High temperature valve mounting kit available for extended temperature range or wall mounting applications. Suitable for vacuum to 29 inch Hg.
Modbus control is available as a factory-installed option. Click on the Accessories tab for details.
Ball Valve Standard FeaturesFull Port design Lead free brass body 400 PSI working pressure (see P/T chart) Direct mounting valve per ISO5211 Stainless steel ball and stem Four ball seat design allows for full pressure at any port Energized PTFE ball seats for extended cycle life and reduced torque Leak free triple PTFE/Viton stem seal design Certified per NSF372 and NSF61 for use with potable/drinking water
Electric Actuator Standard Features EPS-Electronic Positioning System with 4-20mA input Quarter turn operation with mechanical limits Rugged Type 4X weatherproof aluminum alloy housing Visual valve position indicator Manual override Heavy duty motor with overload protection Thermostatically controlled anti-condensation heater Analog output signal to confirm valve position Self-locking all metal gear drive, no additional brake required CSA Listed per UL429 and CSA C22.2, CE marked
Options (see Accessories tab)
The ball valve is direct mounted to the actuator using the international standard ISO5211 mounting pad. Rugged unique integral motor/housing design provides higher torque in a very small package. Actuators are tested to rigorous UL and CSA standards and certified by CSA. Anti-condensation heater is standard and will help protect actuator against damage caused by condensation. Two auxiliary limit switches are provided to confirm valve position.
High performance ball and stem are made of 316 stainless steel rather than the typical plated brass. Energized PTFE ball seats are designed for low torque and extended cycle life. These ball valves offer a unique triple PTFE/Viton leak free stem seal design.
High temperature valve mounting kit available for extended temperature range or wall mounting applications. Suitable for vacuum to 29 inch Hg.
Modbus control is available as a factory-installed option. Click on the Accessories tab for details.
Ball Valve Standard Features
Electric Actuator Standard Features
Options (see Accessories tab)
| Actuator Temperature Range | -13 to +131 °F (-25 to +55 °C) |
|---|---|
| Anti-Condensation Heater | 4 watts thermostatically controlled |
| Ball and Stem | 316 Stainless Steel |
| Ball Seats | (4) PTFE (Teflon) energized with FKM (Viton) |
| Current Rating | 1.00A (full load amps) |
| Cycle Time | 20 seconds per 90° rotation (no load) |
| Duty Cycle | 70% |
| Electrical Connections | Terminal strip, 1/2" NPT conduit (optional) / cable connector (included) |
| Enclosure | Aluminum alloy, polyester painted, SS fasteners |
| Enclosure Rating | Type 4X (IP67) weatherproof |
| Input Control Signal | 4-20mA |
| Manual Override | 5mm hex drive with protective cover |
| Max Fluid Velocity | 10 feet per second |
| Motor Protection | Thermal overload |
| Pipe Size | 1 1/2" NPT female |
| Port Size | Full Port, Orifice 1.50 inches, Cv 49 |
| Pressure (Max) | 400 PSI (see P/T chart),25 PSI saturated steam with high temp. kit, vacuum service to 29" Hg |
| Stem Seals | PTFE (Teflon) with dual FKM (Viton) seals |
| Type | Electric Actuated 3 Way Brass Valve- Positioner |
| Valve Body | Lead Free Brass C69300 |
| Valve Position Confirmation | 4-20mA output monitoring signal (same type as input signal) |
| Valve Temperature Range | -4 to 344 °F (-20 to +173 °C) |
| Voltage | 24 VDC |
