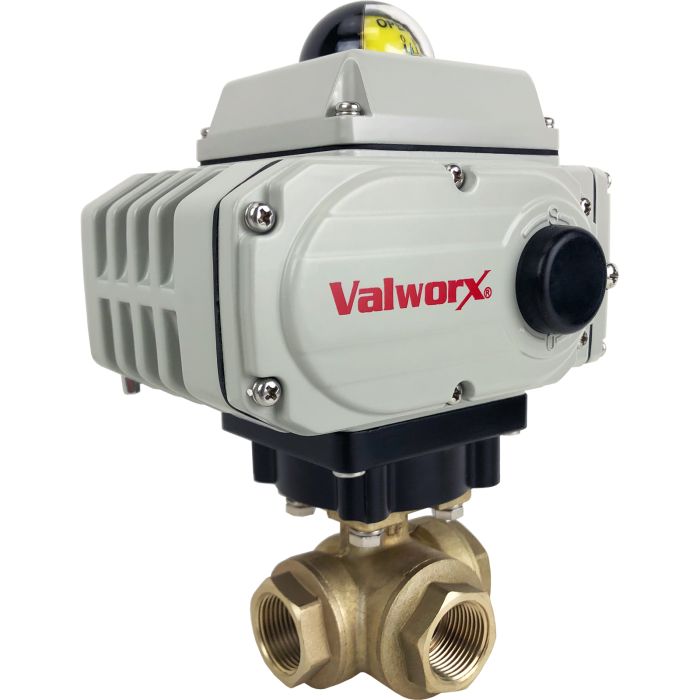

3/4" Electric 3-way Brass T-Port Valve 24 VDC, EPS Positioner

Valworx 562406 electric actuated T-port brass valves can be used as a diverter, selector or mixing valve to control the flow of water, air, oil, and other media compatible with the materials of construction. Four ball seat design allows for full pressure at any port. Ideal where lead free and NSF approved construction are required for potable drinking water or other general industrial applications. The EPS- Electronic Positioning System provides an accurate valve positioning function whereby the movement of the actuator is controlled by a 4-20mA input control signal. Any change in the control input signal results in a corresponding and proportional change in the position of the ball. The internal microprocessor and closed loop feedback system continuously monitors and maintains accurate valve position. The valve will remain in the last known position with loss of electric power. There is no flow shutoff position with this type valve.

The ball valve is direct mounted to the actuator using the international standard ISO5211 mounting pad. Rugged unique integral motor/housing design provides higher torque in a very small package. Actuators are tested to rigorous UL and CSA standards and certified by CSA. Anti-condensation heater is standard and will help protect actuator against damage caused by condensation. Two auxiliary limit switches are provided to confirm valve position.

High performance ball and stem are made of 316 stainless steel rather than the typical plated brass. Energized PTFE ball seats are designed for low torque and extended cycle life. These ball valves offer a unique triple PTFE/Viton leak free stem seal design.

High temperature valve mounting kit available for extended temperature range or wall mounting applications. Suitable for vacuum to 29 inch Hg.

Modbus control is available as a factory-installed option. Click on the Accessories tab for details.

Ball Valve Standard Features

Full Port design

Lead free brass body

400 PSI working pressure (see P/T chart)

Direct mounting valve per ISO5211

Stainless steel ball and stem

Four ball seat design allows for full pressure at any port

Energized PTFE ball seats for extended cycle life and reduced torque

Leak free triple PTFE/Viton stem seal design

Certified per NSF372 and NSF61 for use with potable/drinking water

Electric Actuator Standard Features

EPS-Electronic Positioning System with 4-20mA input

Quarter turn operation with mechanical limits

Rugged Type 4X weatherproof aluminum alloy housing

Visual valve position indicator

Manual override

Heavy duty motor with overload protection

Thermostatically controlled anti-condensation heater

Analog output signal to confirm valve position

Self-locking all metal gear drive, no additional brake required

CSA Listed per UL429 and CSA C22.2, CE marked

Options (see Accessories tab)
