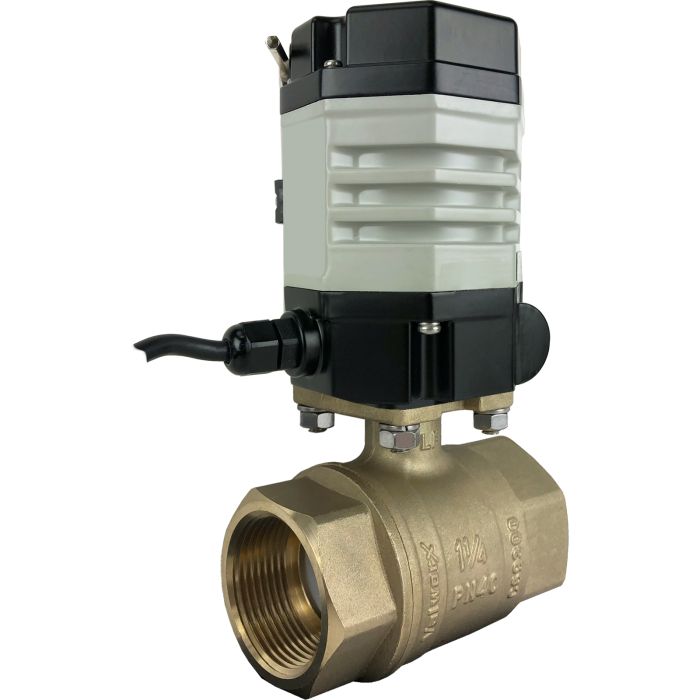

1-1/4" Compact Electric Actuated Brass Ball Valve 24 VDC EPS Positioner
SKU
568570
Series
5685
List Price: $1,022.18
Price:
$817.74
- Buy 3 for $735.97 each and save 10%
Valworx 568570 compact electric actuated lead free brass ball valve is used to control the flow of water, air, oil, and other media compatible with the materials of construction. Ideal where lead free and NSF construction are required for potable drinking water as well as other industrial applications. The EPS- Electronic Positioning System provides an accurate valve positioning function whereby the movement of the actuator is controlled by a 4-20mA input control signal. Any change in the input signal results in a corresponding and proportional change in the position of the ball. The internal microprocessor and closed loop feedback system continuously monitors and maintains accurate valve position. Valve can be set to fail closed, in-place or open with loss of control signal. The valve will remain in the last known position with loss of electric power.
Valve position can be monitored with onboard analog output signal.
The valve is direct mounted to the actuator using the international standard ISO5211 mounting pad. Rugged unique integral motor/housing design provides higher torque in a very small package.
High temperature valve mounting kit available for extended temperature range or wall mounting applications.
Ball Valve Standard FeaturesLead free brass body 600 PSI working pressure (see P/T chart) Direct mount ball valve per ISO5211 Full port design for unrestricted flow 316 Stainless steel ball and stem Blow out proof stem Energized PTFE ball seats for lower torque and extended cycle life Leak free triple PTFE/Viton stem seal packing Certified per NSF372 and NSF 61 for potable/drinking water
Electric Actuator Standard FeaturesEPS-Electronic Positioning System with 4-20mA input Quarter turn operation Rugged Type 4X weatherproof aluminum alloy housing Visual valve position indicator Manual override Heavy duty motor with overload protection Analog output signal to confirm valve position All metal gear drive CSA Listed per UL429 and CSA C22.2, CE mark
Options (see Accessories tab)
Valve position can be monitored with onboard analog output signal.
The valve is direct mounted to the actuator using the international standard ISO5211 mounting pad. Rugged unique integral motor/housing design provides higher torque in a very small package.
High temperature valve mounting kit available for extended temperature range or wall mounting applications.
Ball Valve Standard Features
Electric Actuator Standard Features
Options (see Accessories tab)
| Actuator Temperature Range | -13 to +131 °F (-25 to +55 °C) |
|---|---|
| Ball and Stem | 316 Stainless Steel |
| Ball Seats | PTFE (Teflon) energized with FKM (Viton) |
| Current Rating | 0.7A (full load amps) |
| Cycle Time | 15 seconds per 90° rotation (no load) |
| Duty Cycle | 60% |
| Electrical Connections | Prewired cable with flying leads 3 meter (9.8 feet) |
| Enclosure | Aluminum alloy, polyester coating, SS fasteners |
| Enclosure Rating | Type 4X and IP67 weatherproof |
| Manual Override | 5mm hex drive with protective cover |
| Max Fluid Velocity | 10 feet per second |
| Motor Protection | Thermal overload |
| Pipe Size | 1-1/4" NPT female |
| Port Size | Full Port, orifice 1.22 inches, Cv 89 |
| Pressure Rating | 600 PSI (see P/T chart), 25 PSI saturated steam with high temp kit, vacuum service to 29" Hg |
| Stem Seals | PTFE (Teflon) with dual FKM (Viton) seals |
| Type | Electric Actuated Brass Ball Valve- Positioner |
| Valve Body | Lead Free Brass C69300 |
| Valve Position Confirmation | 2 x SPST auxiliary limit switches rated 3A@125/250VAC,30VDC resistive load |
| Valve Temperature Range | -4 to 366 °F (-20 to +185 °C) |
| Voltage | 24 VDC |
