10" Electric Actuated Butterfly Valve, Wafer, EPDM, 24 VDC, EPS Positioner
SKU
567134A
Series
5671
List Price: $3,853.07
Price:
$3,082.46
- Buy 3 for $2,774.21 each and save 10%

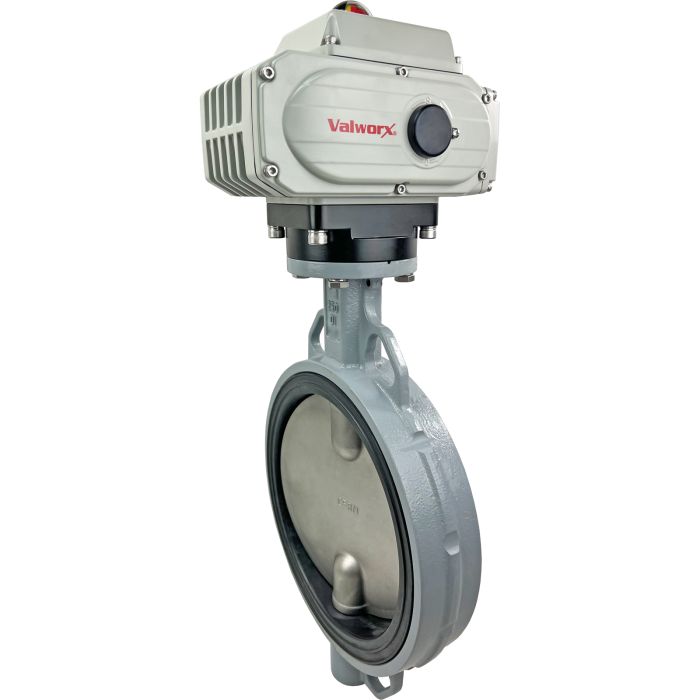

Valworx 567134A electric actuated soft seated butterfly valve is used to control the flow of water and other media compatible with the materials of construction. Wafer style valve sandwich mounts between customer supplied standard ANSI/ASME Class 150 and other international standard flanges. The EPS- Electronic Positioning System provides an accurate valve positioning function whereby the movement of the actuator is controlled by a 4-20mA input control signal. Any change in the control input signal results in a corresponding and proportional change in the position of the disc. The internal microprocessor and closed loop feedback system continuously monitors and maintains accurate valve position. The valve will remain in the last known position with loss of electric power. EPS positioning module is self-calibrating and fully potted to help protect the electronics against vibration and moisture. Valve position can be monitored with the onboard analog output signal.
The valve is direct mounted to the actuator using the international standard ISO5211 mounting pad. Actuator has a rugged unique integral motor/housing design which provides higher torque in a very small package. Special wave line seat and disc shape, reduces the required torque and extends the life of the valve. Precision machined 316SS disc with two-piece stem (shaft) construction, enhances the flow capacity of the valve and reduces turbulence. The stem shaft utilizes PTFE/graphite bearings with V-ring seals to preventing leakage.
Actuators are tested to rigorous UL and CSA standards and certified by CSA. Anti-condensation heater is standard and will help protect actuator against damage caused by condensation.
Butterfly Valve Standard FeaturesRugged ductile iron body with epoxy coating Precision machined 316 Stainless Steel disc Unique wave line seat design reduces the torque and extends the seal life PTFE/graphite stem bearings with V-ring seals Two piece stem/disc construction enhances flow and reduces turbulence Standard ISO5211 actuator to valve direct mounting Leak proof flange seals included as part of valve seat
Electric Actuator Standard FeaturesEPS-Positioner controlled by a 4-20mA input Quarter turn operation with mechanical limits Rugged Type 4X weatherproof aluminum alloy housing Visual valve position indicator Manual override Heavy duty motor with overload protection Thermostatically controlled anti-condensation heater Analog output signal to confirm valve position Self-locking all metal gear drive, no additional brake required CSA Listed per UL429 and CSA C22.2, CE mark
The valve is direct mounted to the actuator using the international standard ISO5211 mounting pad. Actuator has a rugged unique integral motor/housing design which provides higher torque in a very small package. Special wave line seat and disc shape, reduces the required torque and extends the life of the valve. Precision machined 316SS disc with two-piece stem (shaft) construction, enhances the flow capacity of the valve and reduces turbulence. The stem shaft utilizes PTFE/graphite bearings with V-ring seals to preventing leakage.
Actuators are tested to rigorous UL and CSA standards and certified by CSA. Anti-condensation heater is standard and will help protect actuator against damage caused by condensation.
Butterfly Valve Standard Features
Electric Actuator Standard Features
| Actuator Temperature Range | -13 to +131 °F (-25 to +55 °C) |
|---|---|
| Anti-Condensation Heater | 4 watts thermostatically controlled |
| Current Rating | 6.04A (full load amps) |
| Cycle Time | 45 seconds per 90° rotation (no load) |
| Disc | 316 Stainless Steel |
| Disc Seat/Liner | EPDM |
| Duty Cycle | 70% |
| Electrical Connections | Terminal strip, 1/2"NPT conduit (optional) / cable connector (included) |
| Enclosure | Aluminum alloy, polyester painted, SS fasteners |
| Enclosure Rating | Type 4X (IP67) weatherproof |
| Flow Factor | Cv 4498 (Cv = number of GPM of 60 °F water at 1 psi pressure drop) |
| Input Control Signal | 4-20mA |
| Manual Override | 6mm hex drive with protective cover |
| Motor Protection | Thermal overload |
| Pipe Size | 10 inch (DN250) |
| Pressure Rating | 145 PSI (16 Bar), 29 inHg vacuum |
| Shaft Seals | EPDM V-ring |
| Suitable Flanges | ANSI /ASME B16.5 Class 150, B16.1 Class 105, EN1092 PN10, PN16, BS10 D, E, JIS B2239 10K, 16K |
| Type | Electric Actuated Wafer Butterfly Valve- Positioner |
| Valve Body | Ductile iron, epoxy coating (seat facing acts as flange gasket) |
| Valve Position Confirmation | 4-20mA output monitoring signal (same type as input signal) |
| Valve Temperature Range | 0 to 248 °F (-30 to +100 °C) |
| Voltage | 24 VDC |
