1" Compact Electric Actuated Brass Ball Valve 24 VDC
Stock #
568549
Series
5685
List Price: $577.92
Price: $462.34
- Buy 3 for $416.10 each
Usually Ships: Same Day

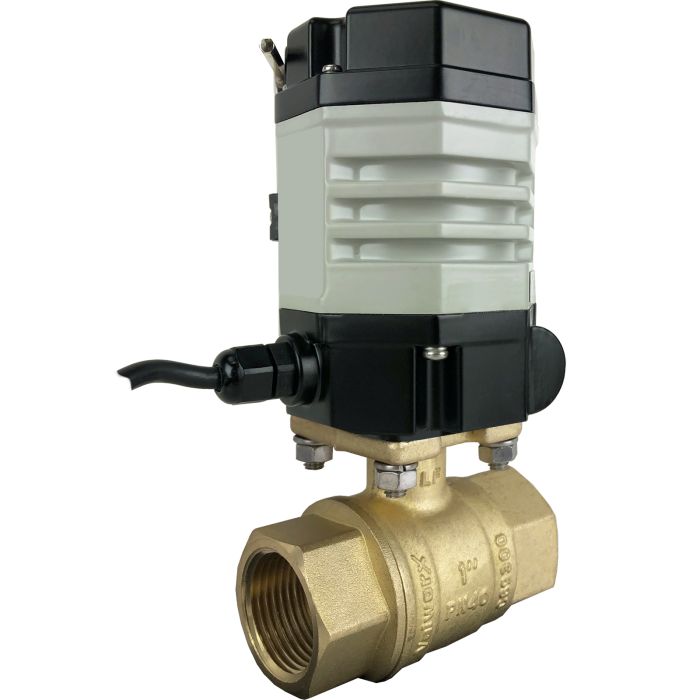

Valworx 568549 compact electric actuated lead free brass ball valve is used for on-off control of water, air, oil, and other media compatible with the materials of construction. Ideal where lead free and NSF construction are required for potable drinking water as well as other industrial applications. These actuated valves use power-to-open (position 1) and power-to-close (position 2), stays in last known position with loss of power. On receipt of a continuous voltage signal, the motor runs and via an all metal gear drive rotates the ball. The motor is stopped by internal cams striking limit switches. On receipt of a reversing continuous signal, the motor turns in the opposite direction reversing the valve position.
The valve is direct mounted to the actuator using the international standard ISO5211 mounting pad. Rugged unique integral motor/housing design provides higher torque in a very small package.
High temperature valve mounting kit available for extended temperature range or wall mounting applications.
Ball Valve Standard FeaturesLead free brass body 600 PSI working pressure (see P/T chart) Direct mount ball valve per ISO5211 Full port design for unrestricted flow 316 Stainless steel ball and stem Blow out proof stem Energized PTFE ball seats for lower torque and extended cycle life Leak free triple PTFE/Viton stem seal packing Certified per NSF372 and NSF 61 for potable/drinking water
Electric Actuator Standard FeaturesQuarter turn operation Rugged Type 4X weatherproof aluminum alloy enclosure Visual valve position indicator Manual override Heavy duty motor with overload protection Two auxiliary limit switches to confirm valve positions All metal gear drive CSA Listed per UL429 and CSA C22.2, CE mark
Options (see Accessories tab)
The valve is direct mounted to the actuator using the international standard ISO5211 mounting pad. Rugged unique integral motor/housing design provides higher torque in a very small package.
High temperature valve mounting kit available for extended temperature range or wall mounting applications.
Ball Valve Standard Features
Electric Actuator Standard Features
Options (see Accessories tab)
| Type | Electric Actuated Brass Ball Valve- On/Off |
|---|---|
| Actuator Voltage | 24 VDC |
| Current Rating | 0.7A (full load amps) |
| Cycle Time | 11 seconds per 90° rotation |
| Duty Cycle | 60% |
| Pipe Size (in)-Specs | 1" NPT female |
| Full Port Orifice Size (inches) | 1.00 |
| Cv | 60 |
| Pressure Rating | 600 PSI (see P/T chart), 25 PSI saturated steam with high temp kit, vacuum up to 29 InHg |
| Valve Temperature Range | -4 to 366°F (-20 to 186°C) |
| Actuator Temperature Range | -13 to 131°F (-25 to 55°C) |
| Valve Body-Specs | Lead Free Brass C69300 |
| Ball/Stem Material | 316 Stainless Steel |
| Ball Seat Material | PTFE/ Viton |
| Stem Seal Material | PTFE/ Viton |
| Disc Seat/Liner | EPDM |
| Enclosure | Aluminum alloy, polyester painted, SS fasteners |
| Enclosure Protection | IP67, NEMA 4, 4X weatherproof |
| Electrical Connections | Prewired cable with flying leads 3 meter (9.8 feet) |
| Valve Position Confirmation | 2 x SPST auxiliary limit switches rated 3A@125/250VAC, 30VDC resistive load |
| Valve Position Indicator | Dial Indicator |
| Manual Override | 5mm hex drive with protective cover |
| Motor Protection | Thermal overload |
| Max Fluid Velocity | 10 feet per second |
Accessories
High Temperature Mounting Kit
-
-
Compact Electric Actuator 160 in.lbs (18Nm), 24 VDCStock #: 561704Usually Ships: Same DayPrice: $416.02
