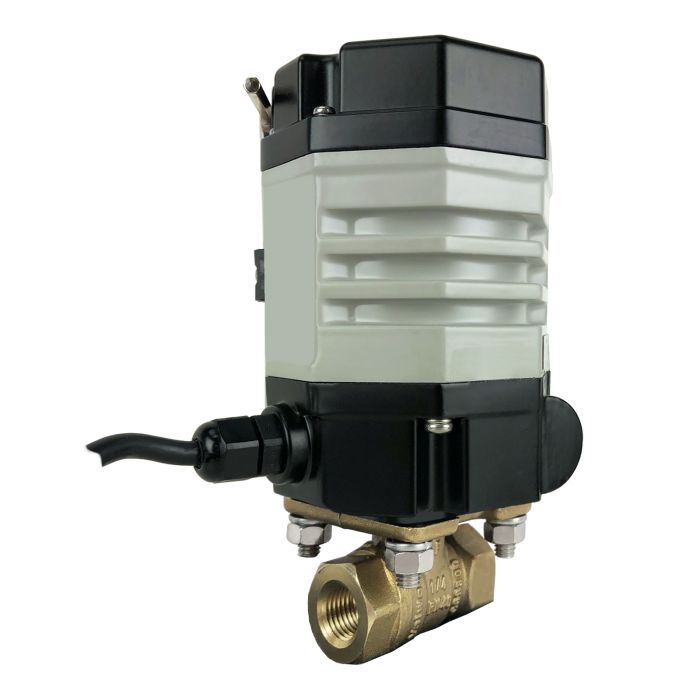

1/4" Compact Electric Actuated Brass Ball Valve 110 VAC, EPS Positioner
Stock #
568555
Series
5685
List Price: $908.11
Price: $726.49
- Buy 3 for $653.84 each
Usually Ships: 4- 6 Weeks
Valworx 568555 compact electric actuated lead free brass ball valve is used to control the flow of water, air, oil, and other media compatible with the materials of construction. Ideal where lead free and NSF construction are required for potable drinking water as well as other industrial applications. The EPS- Electronic Positioning System provides an accurate valve positioning function whereby the movement of the actuator is controlled by a 4-20mA input control signal. Any change in the input signal results in a corresponding and proportional change in the position of the ball. The internal microprocessor and closed loop feedback system continuously monitors and maintains accurate valve position. Valve can be set to fail closed, in-place or open with loss of control signal. The valve will remain in the last known position with loss of electric power.
Valve position can be monitored with onboard analog output signal.
The valve is direct mounted to the actuator using the international standard ISO5211 mounting pad. Rugged unique integral motor/housing design provides higher torque in a very small package.
High temperature valve mounting kit available for extended temperature range or wall mounting applications.
Ball Valve Standard FeaturesLead free brass body 600 PSI working pressure (see P/T chart) Direct mount ball valve per ISO5211 Full port design for unrestricted flow 316 Stainless steel ball and stem Blow out proof stem Energized PTFE ball seats for lower torque and extended cycle life Leak free triple PTFE/Viton stem seal packing Certified per NSF372 and NSF 61 for potable/drinking water
Electric Actuator Standard FeaturesEPS-Electronic Positioning System with 4-20mA input Quarter turn operation Rugged Type 4X weatherproof aluminum alloy housing Visual valve position indicator Manual override Heavy duty motor with overload protection Analog output signal to confirm valve position All metal gear drive CSA Listed per UL429 and CSA C22.2, CE mark
Options (see Accessories tab)
Valve position can be monitored with onboard analog output signal.
The valve is direct mounted to the actuator using the international standard ISO5211 mounting pad. Rugged unique integral motor/housing design provides higher torque in a very small package.
High temperature valve mounting kit available for extended temperature range or wall mounting applications.
Ball Valve Standard Features
Electric Actuator Standard Features
Options (see Accessories tab)
| Type | Electric Actuated Brass Ball Valve- Positioner |
|---|---|
| Actuator Voltage | 110 VAC 50/60Hz |
| Current Rating | 0.3A (full load amps) |
| Cycle Time | 12 seconds per 90° rotation |
| Duty Cycle | 60% |
| Pipe Size (in)-Specs | 1/4" NPT female |
| Full Port Orifice Size (inches) | 0.39 |
| Cv | 6 |
| Pressure Rating | 600 PSI (see P/T chart), 25 PSI saturated steam with high temp kit, vacuum up to 29 InHg |
| Valve Temperature Range | -4 to 366°F (-20 to 186°C) |
| Actuator Temperature Range | -13 to 131°F (-25 to 55°C) |
| Valve Body-Specs | Lead Free Brass C69300 |
| Ball/Stem Material | 316 Stainless Steel |
| Ball Seat Material | PTFE/ Viton |
| Stem Seal Material | PTFE/ Viton |
| Disc Seat/Liner | EPDM |
| Enclosure | Aluminum alloy, polyester painted, SS fasteners |
| Enclosure Protection | IP67, NEMA 4, 4X weatherproof |
| Electrical Connections | Prewired cable with flying leads 3 meter (9.8 feet) |
| Input Control Signal | 4-20mA |
| Output signal | 4-20mA output monitoring signal (same type as input signal) |
| Valve Position Indicator | Dial Indicator |
| Manual Override | 5mm hex drive with protective cover |
| Motor Protection | Thermal overload |
| Max Fluid Velocity | 10 feet per second |
