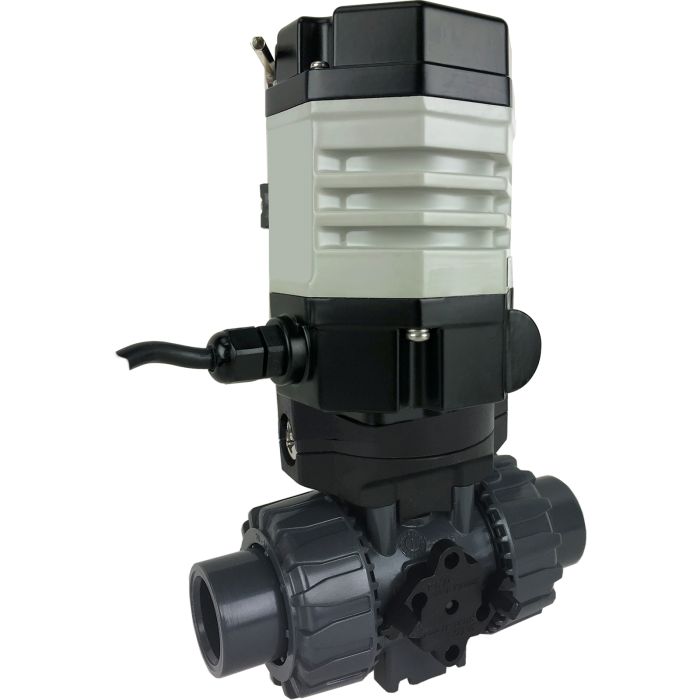

1/2" Compact Electric Actuated PVC Ball Valve PTFE/EPDM, 24 VDC

Valworx 566246 compact electric actuated PVC ball valves are typically used for on-off control of water and liquid media compatible with the materials of construction (not suitable for air or gas). Ideal where NSF certified construction is required for potable drinking water as well as other industrial applications. These actuated valves use power-to-open (position 1) and power-to-close (position 2), stays in last known position with loss of power. On receipt of a continuous voltage signal, the motor runs and via a self-locking all metal gear drive rotates the ball. The motor is stopped by internal cams striking limit switches. On receipt of a reversing continuous signal, the motor turns in the opposite direction reversing the valve position.

Rugged unique integral motor/housing design provides higher torque in a very small package. Two auxiliary limit switches are included to confirm valve open and closed positions. Typical applications include industrial/process piping, pulp and paper, food processing, water treatment and irrigation.

Ball Valve Standard Features

Industrial grade full port PVC ball valve

Tru Union with bi-directional flow

Union nut locking device prevents back-off

Energized PTFE ball seats for lower torque and extended life

Leak free dual stem seal design

Micro-adjustable ball seat carrier

Pressure rated 232 PSI at 73°F

Series 5510 NSF/ANSI/CAN 60 and NSF/ANSI 372 certified valve for potable drinking water

Includes IPS glue sockets and NPT end connectors

Electric Actuator Standard Features

Quarter turn operation

Rugged Type 4X weatherproof aluminum alloy enclosure

Visual valve position indicator

Manual override

Heavy duty motor with overload protection

Two auxiliary limit switches to confirm valve positions

All metal gear drive

CSA Listed per UL429 and CSA C22.2, CE mark
