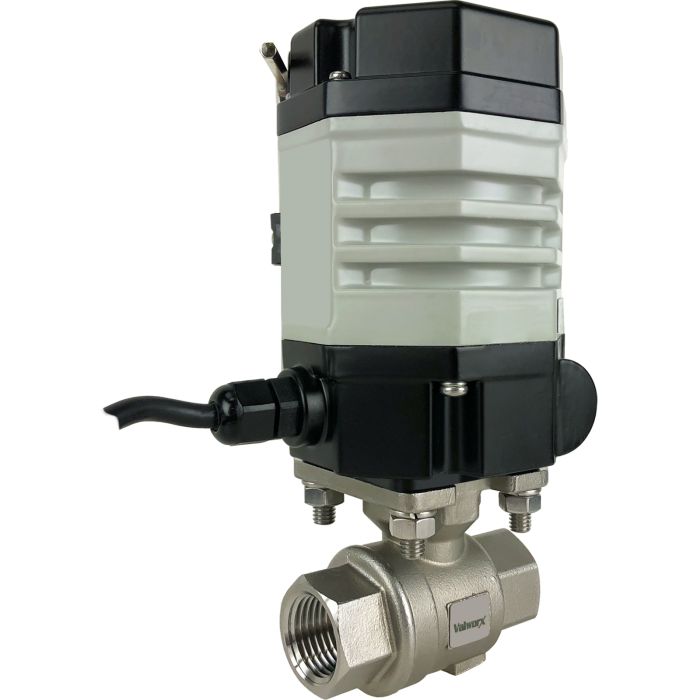

1/2" Compact Electric Actuated Stainless Ball Valve 24 VDC
Stock #
566546A
Series
5665
List Price: $651.21
Price: $520.97
- Buy 3 for $468.87 each
Usually Ships: Same Day
Valworx 566546A compact electric actuated 2-piece stainless steel ball valve is used for on-off control of water, air, oil, and other media compatible with the materials of construction. Standard unit is power-to-open (position 1) and power-to-close (position 2), stays in last known position with loss of power. On receipt of a continuous voltage signal, the motor runs and via a metal gear drive rotates the ball. The motor is stopped by internal cams striking limit switches. On receipt of a reversing continuous signal, the motor turns in the opposite direction reversing the valve position.
The valve is direct mounted to the actuator using the international standard ISO5211 mounting pad. Rugged unique integral motor/housing design provides higher torque in a very small package.
High temperature valve mounting kit available for extended temperature range or wall mounting applications.
Ball Valve Standard Features1000 PSI working pressure (see P/T chart) Direct mounting valve per ISO5211 Full port for unrestricted flow 316 stainless steel body, ball and stem Blow out proof stem RTFE ball seats extend cycle life Triple PTFE/Viton stem seal design, live loaded
Electric Actuator Standard FeaturesQuarter turn operation Rugged Type 4X weatherproof aluminum alloy housing Visual valve position indicator Manual override Heavy duty motor with overload protection Two auxiliary limit switches to confirm valve position All metal gear drive CSA Listed per UL429 and CSA C22.2, CE mark
Options (see Accessories tab)
The valve is direct mounted to the actuator using the international standard ISO5211 mounting pad. Rugged unique integral motor/housing design provides higher torque in a very small package.
High temperature valve mounting kit available for extended temperature range or wall mounting applications.
Ball Valve Standard Features
Electric Actuator Standard Features
Options (see Accessories tab)
| Type | Electric Actuated 2 Way Ball Valve- On/Off |
|---|---|
| Actuator Voltage | 24 VDC |
| Current Rating | 0.7A (full load amps) |
| Cycle Time | 11 seconds per 90° rotation |
| Duty Cycle | 60% |
| Pipe Size (in)-Specs | 1/2" NPT female |
| Full Port Orifice Size (inches) | 0.59 |
| Cv | 9.7 |
| Pressure Rating | 1000 PSI (see P/T chart), 25 PSI saturated steam with high temp kit, vacuum up to 29.92 InHg (2.3 x 10-3 Torr) |
| Valve Temperature Range | -4 to 392°F (-20 to 200°C) |
| Actuator Temperature Range | -13 to 131°F (-25 to 55°C) |
| Valve Body/Ball | 316 SS |
| Body/Ball Material | 316 Stainless Steel |
| Ball Seat Material | RTFE (reinforced Teflon) |
| Stem Seal Material | PTFE/ Viton |
| Enclosure | Aluminum alloy, polyester painted, SS fasteners |
| Electrical Connections | Prewired cable with flying leads 3 meter (9.8 feet) |
| Valve Position Confirmation | 2 x SPST auxiliary limit switches rated 3A@125/250VAC, 30VDC resistive load |
| Valve Position Indicator | Dial Indicator |
| Manual Override | 5mm hex drive with protective cover |
| Motor Protection | Thermal overload |
| Max Fluid Velocity | 10 feet per second |
Accessories
High Temperature Mounting Kit
Spring Check Valve
-
-
Compact Electric Actuator 160 in.lbs (18Nm), 24 VDCStock #: 561704Usually Ships: Same DayPrice: $416.02
