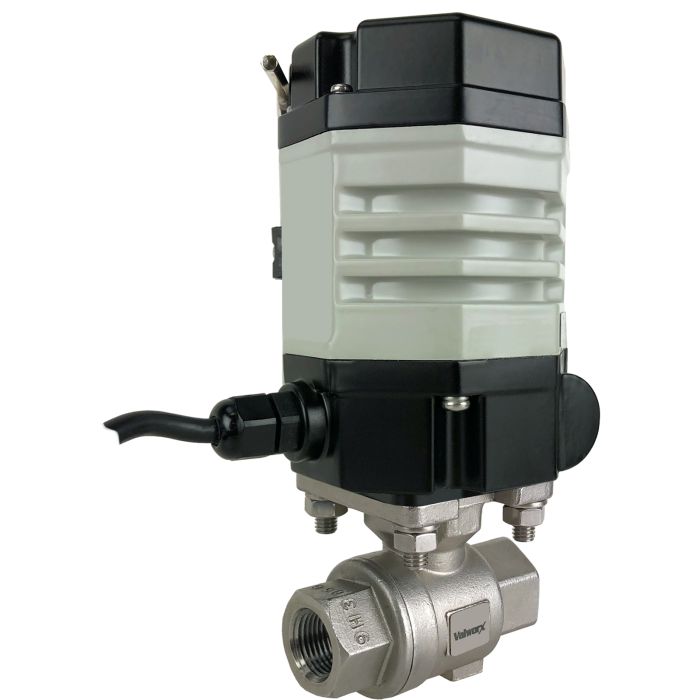

3/8" Compact Electric Actuated Stainless Ball Valve 110 VAC, EPS Positioner
Stock #
566556A
Series
5665
List Price: $968.22
Price: $774.58
- Buy 3 for $697.12 each
Usually Ships: Same Day
Valworx 566556A compact electric actuated 2-piece stainless steel ball valve is used to control the flow of water, air, oil, and other media compatible with the materials of construction. The EPS- Electronic Positioning System provides an accurate valve positioning function whereby the movement of the actuator is controlled by a 4-20mA input control signal. Any change in the control input signal results in a corresponding and proportional change in the position of the ball. The internal microprocessor and closed loop feedback system continuously monitors and maintains accurate valve position. The valve will remain in the last known position with loss of electric power.
Valve position can be monitored with onboard analog output signal.
The valve is direct mounted to the actuator using the international standard ISO5211 mounting pad. Rugged unique integral motor/housing design provides higher torque in a very small package.
High temperature valve mounting kit available for extended temperature range or wall mounting applications.
Ball Valve Standard Features1000 PSI working pressure (see P/T chart) Direct mounting valve per ISO5211 Full port for unrestricted flow 316 stainless steel body, ball and stem Blow out proof stem RTFE ball seats extend cycle life Triple PTFE/Viton stem seal design, live loaded
Electric Actuator Standard FeaturesEPS-Electronic Positioning System with 4-20mA input Quarter turn operation Rugged Type 4X weatherproof aluminum alloy housing Visual valve position indicator Manual override Heavy duty motor with overload protection Analog output signal to confirm valve position All metal gear drive CSA Listed per UL429 and CSA C22.2, CE mark
Options (see Accessories tab)
Valve position can be monitored with onboard analog output signal.
The valve is direct mounted to the actuator using the international standard ISO5211 mounting pad. Rugged unique integral motor/housing design provides higher torque in a very small package.
High temperature valve mounting kit available for extended temperature range or wall mounting applications.
Ball Valve Standard Features
Electric Actuator Standard Features
Options (see Accessories tab)
| Type | Electric Actuated 2 Way Ball Valve- Positioner |
|---|---|
| Actuator Voltage | 110 VAC 50/60Hz |
| Current Rating | 0.3A (full load amps) |
| Cycle Time | 12 seconds per 90° rotation |
| Duty Cycle | 60% |
| Pipe Size (in)-Specs | 3/8" NPT female |
| Full Port Orifice Size (inches) | 0.49 |
| Cv | 6.9 |
| Pressure Rating | 1000 PSI (see P/T chart), 25 PSI saturated steam with high temp kit, vacuum up to 29.92 InHg (2.3 x 10-3 Torr) |
| Valve Temperature Range | -4 to 392°F (-20 to 200°C) |
| Actuator Temperature Range | -13 to 131°F (-25 to 55°C) |
| Valve Body/Ball | 316 SS |
| Body/Ball Material | 316 Stainless Steel |
| Ball Seat Material | RTFE (reinforced Teflon) |
| Stem Seal Material | PTFE/ Viton |
| Enclosure | Aluminum alloy, polyester painted, SS fasteners |
| Electrical Connections | Prewired cable with flying leads 3 meter (9.8 feet) |
| Input Control Signal | 4-20mA |
| Output signal | 4-20mA output monitoring signal (same type as input signal) |
| Valve Position Indicator | Dial Indicator |
| Manual Override | 5mm hex drive with protective cover |
| Motor Protection | Thermal overload |
| Max Fluid Velocity | 10 feet per second |
