Declutchable Manual Override Gear Operator, 14 x 88mm Shaft
SKU
575244
Series
5752
List Price: $296.00
Price:
$236.80
- Buy 3 for $213.12 each and save 10%

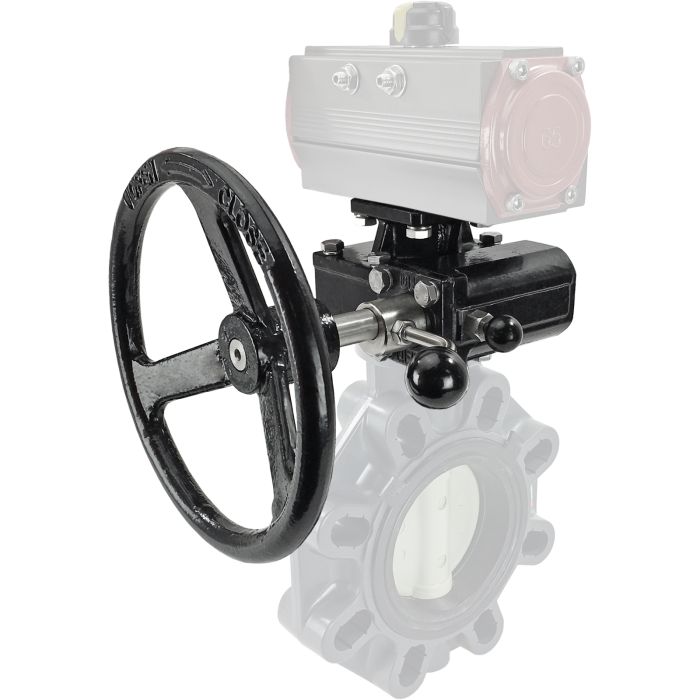

Valworx 575244 declutchable manual override gear operator for manual operation of pneumatically actuated valves. IP65 weatherproof enclosure. Factory-set adjustable travel stops. Pre-engineered to fit selected Valworx 14mm stem valves. (See individual valve assembly accessories for details.) ISO 5211 standard F07 mounting.
The manual override gear operator is pre-installed and tested at no additional charge when ordered as part of a Valworx actuated valve assembly. Fasteners are not included when ordered as an individual item.
The manual override gear operator is pre-installed and tested at no additional charge when ordered as part of a Valworx actuated valve assembly. Fasteners are not included when ordered as an individual item.
| Gear Ratio | 26:01:00 |
|---|---|
| Handwheel Stem | Nickel-Plated Steel |
| Housing | Gray Iron, Electrostatic Powder-Coated Polyurethane |
| ISO5211 Mounting, Actuator Side | F07 |
| ISO5211 Mounting, Valve Side | F07 |
| Output Torque | 300Nm |
| Seals | NBR |
| Shaft Coupler | 316 Stainless Steel |
| Shaft Coupler Length | 88mm |
| Stem Size | 14mm |
| Temperature Rating | -4°F to 185°F (-20°C to 85°C) |
| Type | Declutchable Gear Operator |
| Worm Gear | Cast Iron |
