Declutchable Manual Override Gear Operator, 22 x 79mm Shaft
Stock #
575232
Series
5752
List Price: $377.00
Price: $301.60
- Buy 3 for $271.44 each
Usually Ships: Same Day

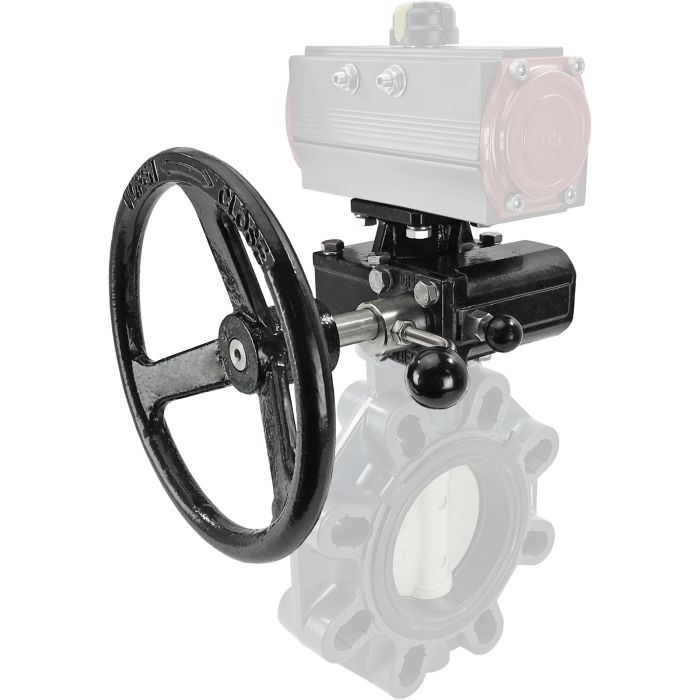

Valworx 575232 declutchable manual override gear operator for manual operation of pneumatically actuated valves. IP65 weatherproof enclosure. Factory-set adjustable travel stops. Pre-engineered to fit selected Valworx 22mm stem valves. (See individual valve assembly accessories for details.) ISO 5211 standard F07/F10 mounting.
The manual override gear operator is pre-installed and tested at no additional charge when ordered as part of a Valworx actuated valve assembly. Fasteners are not included when ordered as an individual item.
The manual override gear operator is pre-installed and tested at no additional charge when ordered as part of a Valworx actuated valve assembly. Fasteners are not included when ordered as an individual item.
| Type | Declutchable Gear Operator |
|---|---|
| Temperature Range | -4 to 185°F (-20 to 85°C) |
| Stem Size | 22mm |
| Gear Ratio | 38: 1 |
| Handwheel Stem | Nickel-Plated Steel |
| Housing | Gray Iron, Electrostatic Powder-Coated Polyurethane |
| ISO 5211 Mounting, Actuator Side | F07/F10 |
| ISO 5211 Mounting, Valve Side | F07/F10 |
| Output Torque | 620Nm |
| Seals | NBR |
| Shaft Coupler | 316 Stainless Steel |
| Shaft Coupler Length | 79mm |
| Worm Gear | Cast Iron |
