Declutchable Manual Override Gear Operator, 27 x 85mm Shaft
Stock #
575297
Series
5752
List Price: $388.00
Price: $310.40
- Buy 3 for $279.36 each
Usually Ships: Same Day

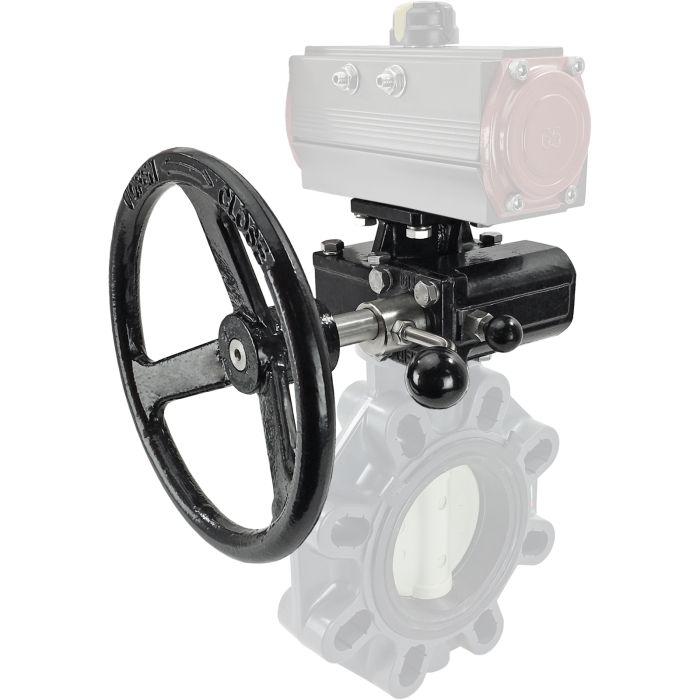

Valworx 575297 declutchable manual override gear operator for manual operation of pneumatically actuated valves. IP65 weatherproof enclosure. Factory-set adjustable travel stops. Pre-engineered to fit selected Valworx 27mm stem valves. (See individual valve assembly accessories for details.) ISO 5211 standard F10 mounting (valve side) and F12 mounting (actuator side).
The manual override gear operator is pre-installed and tested at no additional charge when ordered as part of a Valworx actuated valve assembly. Fasteners are not included when ordered as an individual item.
The manual override gear operator is pre-installed and tested at no additional charge when ordered as part of a Valworx actuated valve assembly. Fasteners are not included when ordered as an individual item.
| Type | Declutchable Gear Operator |
|---|---|
| Temperature Range | -4 to 185°F (-20 to 85°C) |
| Stem Size | 27mm |
| Gear Ratio | 38: 1 |
| Handwheel Stem | Nickel-Plated Steel |
| Housing | Gray Iron, Electrostatic Powder-Coated Polyurethane |
| ISO 5211 Mounting, Actuator Side | F12 |
| ISO 5211 Mounting, Valve Side | F10 |
| Output Torque | 620Nm |
| Seals | NBR |
| Shaft Coupler | 316 Stainless Steel |
| Shaft Coupler Length | 85mm |
| Worm Gear | Cast Iron |
