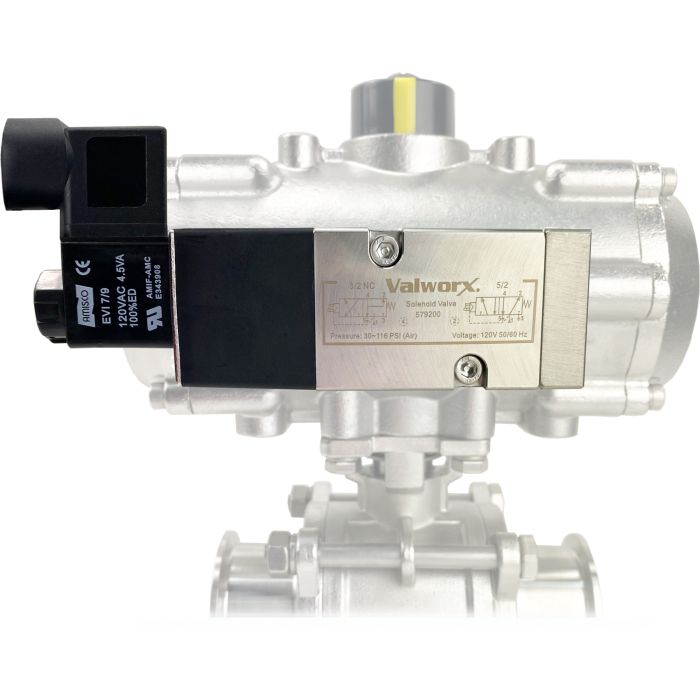

Direct Mount Stainless Steel Solenoid Valve 120V 50/60Hz
SKU
579200
Series
5792
List Price: $254.10
Price:
$203.28
- Buy 3 for $182.95 each and save 10%
Direct mount stainless steel air solenoid valves can be adapted for 5/2 or 3/2 NC functions for electrically controlling double acting or spring return air actuated valves. Valves mount directly to actuators with the international standard Namur interface saving time, space and plumbing. Compact high flow design includes a 316 stainless steel body with a low wattage molded coil. Long life stainless steel spool and sleeve design can be used with lubricated or non-lubricated compressed air. Twist and lock manual override is useful in operating the valve during setup, testing or power outage situations. Easy to wire 1/2" conduit DIN plug connector with screw terminals is included with each valve. This valve offers excellent environmental protection against the ingress of liquids, dust and other foreign matter. Optional actuator speed controls and mufflers are listed under accessories.
These solenoid valves are PRE-INSTALLED and TESTED when ordered with a Valworx air actuated valve.
Series 5792 solenoid valves are for use on Valworx Scotch Yoke and stainless steel rack & pinion actuators.
These solenoid valves are PRE-INSTALLED and TESTED when ordered with a Valworx air actuated valve.
Series 5792 solenoid valves are for use on Valworx Scotch Yoke and stainless steel rack & pinion actuators.
| Approvals | UL recognized coil - File E343908, CE |
|---|---|
| Coil Type | General purpose, class F coil, continuous duty 100% duty cycle |
| Construction | Stainless steel body, glass filled PA, POM and NBR seals |
| Flow | 0.20 orifice, Cv 1.1, 52 SCFM |
| Manual Override | Twist and lock |
| Pipe Size | 1/4" NPT inlet and (2) exhaust ports |
| Pressure (Min-Max) | 30-116 PSI (air) |
| Solenoid Enclosure | IP65 dusttight and weatherproof |
| Type | 3 or 4-way, 2-Position spring return (3/2 NC or 5/2) |
| Voltage/Watts | 120 VAC 50/60Hz, 4.5 VA |
| Wiring | 1/2" conduit DIN Plug connector with screw terminals (included) |
| Working Media | 40 micron filtered and dried compressed air |
| Working Temperature | -13 to 176 °F (coil ambient temp. -4 to 122 °F) |
