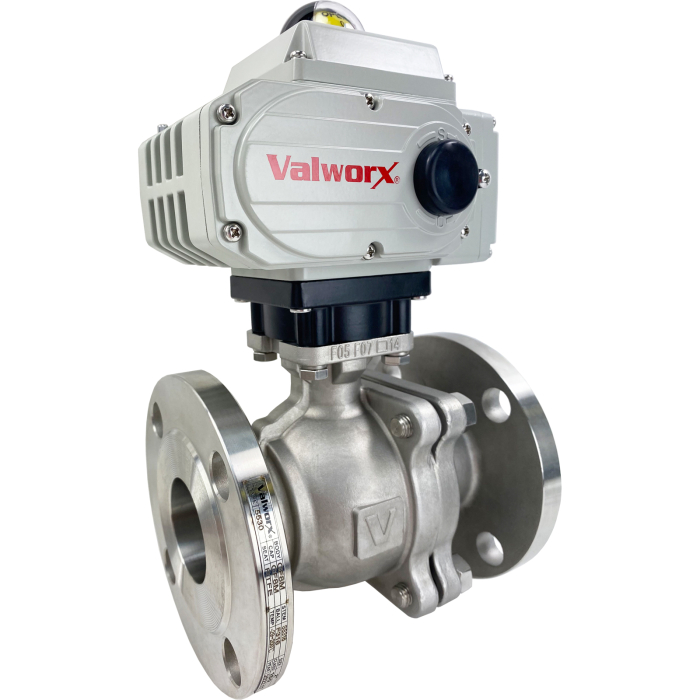

2" Electric 150# Flanged SS Ball Valve 24 VDC
Stock #
566049E
Series
5660
List Price: $1,649.89
Price: $1,319.91
- Buy 3 for $1,187.92 each
Usually Ships: Same Day
Valworx 566049E electric actuated low emission 2-piece 150# flanged stainless steel ball valves for on-off control of oil & gas, water, air and other media compatible with the materials of construction. Dual-certified fire-safe/low emission valve made of 316 stainless steel mounts between standard ANSI 150 pound pipe flanges. The actuator function is power-to-open and power to close, stays in last known position with loss of power. On receipt of a continuous voltage signal, the motor runs and via a self-locking gear drive rotates the ball one quarter turn. The motor is stopped by internal cams striking limit switches. On receipt of a reversing continuous signal, the motor turns in the opposite direction reversing the valve position.
The valve is direct mounted to the actuator using the international standard ISO5211 mounting pad. Rugged unique integral motor/housing design provides higher torque in a very small package. Actuators are tested to rigorous UL and CSA standards and certified by CSA. Anti-condensation heater is standard and will help protect actuator against damage caused by condensation.
High temperature valve mounting kit available for extended temperature range or wall mounting applications.
Ball Valve Standard Features275 PSI working pressure (see P/T chart) Direct mounting valve per ISO5211 Full port for unrestricted flow 316 stainless steel body, ball and stem Blow out proof stem RTFE ball seats extend cycle life Braided Graphite/Viton stem seal design, live loaded and adjustable
Electric Actuator Standard FeaturesQuarter turn operation with mechanical limits Rugged Type 4X weatherproof aluminum alloy housing Visual valve position indicator Manual override Heavy duty motor with overload protection Thermostatically controlled anti-condensation heater Two auxiliary limit switches to confirm valve position Self-locking all metal gear drive, no additional brake required CSA Listed per UL429 and CSA C22.2, CE mark
Options (see Accessories tab)
The valve is direct mounted to the actuator using the international standard ISO5211 mounting pad. Rugged unique integral motor/housing design provides higher torque in a very small package. Actuators are tested to rigorous UL and CSA standards and certified by CSA. Anti-condensation heater is standard and will help protect actuator against damage caused by condensation.
High temperature valve mounting kit available for extended temperature range or wall mounting applications.
Ball Valve Standard Features
Electric Actuator Standard Features
Options (see Accessories tab)
| Type | Electric Actuated Flange Valve- On/Off |
|---|---|
| Actuator Voltage | 24 VDC |
| Current Rating | 1.28A (full load amps) |
| Cycle Time | 20 seconds per 90° rotation |
| Duty Cycle | 70% |
| Pipe Size (in)-Specs | 2" ANSI Class 150# Flanged (RF) |
| Full Port Orifice Size (inches) | 2.00 |
| Cv | 240 |
| Pressure Rating | 275 PSI (see P/T chart), 25 PSI saturated steam with high temp kit, vacuum up to 29.91 InHg (3.7 x 10-1 Torr) |
| Valve Temperature Range | -4 to 392°F (-20 to 200°C) |
| Actuator Temperature Range | -13 to 131°F (-25 to 55°C) |
| Valve Body/Ball | 316 SS |
| Body/Ball Material | 316 Stainless Steel |
| Ball Seat Material | RTFE (reinforced Teflon) |
| Stem Seal Material | Braided Graphite/ FKM (Viton) |
| Enclosure | Aluminum alloy, polyester painted, SS fasteners |
| Enclosure Protection | IP67, NEMA 4, 4X weatherproof |
| Electrical Connections | Terminal strip, 1/2" NPT conduit (optional) / cable connector (included) |
| Valve Position Confirmation | 2 x SPST auxiliary limit switches rated 3A@125/250VAC, 30VDC resistive load |
| Valve Position Indicator | Dome Indicator |
| Manual Override | 5mm hex drive with protective cover |
| Motor Protection | Thermal overload |
| Anti-Condensation Heater | 4 watts thermostatically controlled |
| Low Emission Approval | API 641 |
| Fire Safe Approval | API 607 |
| Pipeline Use Approval | API 608 |
| Stem Packing Approval | API 622 |
| Flange Dimensions | ANSI B16.5 Class 150 |
| Flange Face to Face | ANSI B16.10 Class 150 |
| Max Fluid Velocity | 10 feet per second |
Accessories
Quick Close Option
Connectors & Cables
-
Conduit Adapter 1/2" NPT for 5618 Series Electric ActuatorsStock #: 561890Usually Ships: Same DayPrice: $21.40 -
7-Conductor Cable for 5618 Series Electric Actuators- 8ftStock #: 588008AUsually Ships: Same DayPrice: $28.37 -
7-Conductor Cable for 5618 Series Electric Actuators- 16ftStock #: 588009AUsually Ships: Same DayPrice: $53.50 -
7-Conductor Cable for 5618 Series Electric Actuators- 32ftStock #: 588010AUsually Ships: Same DayPrice: $103.75
High Temperature Mounting Kit
-
2" Stainless ANSI 150# Flanged Ball Valve - ISO Direct MountStock #: 553016AUsually Ships: Same DayPrice: $696.38 -
