1" Electric 3-Way Stainless L-Diverter Valve, 24 VDC
SKU
565749F
Series
5657
List Price: $1,024.88
Price:
$819.90
- Buy 3 for $737.91 each and save 10%

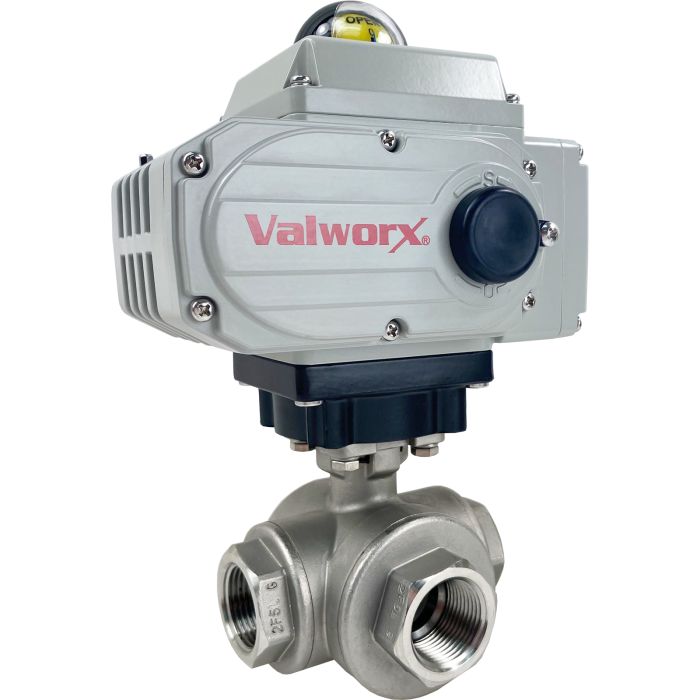

Valworx 565749F electric actuated 3-way Full Port stainless steel ball valve is used to control the flow of water, air, oil, and other media compatible with the materials of construction. Use as an L-port diverter valve (directs flow from center inlet port to either side outlet port 1 or 2) or as a selector valve (two separate inlet ports and one center outlet port). Actuator uses power-to-open (position 2) and power-to-close (position 1), stays in last known position with loss of power. On receipt of a continuous voltage signal, the motor runs and via an all metal self-locking gear drive rotates the ball one quarter turn. The motor is automatically stopped by internal cams striking limit switches. On receipt of a reversing continuous signal, the motor turns in the opposite direction reversing the valve position.
The ball valve is direct mounted to the actuator using the international standard ISO5211 mounting pad. Rugged unique integral motor/housing design provides higher torque in a very small package. Actuators are tested to rigorous UL and CSA standards and certified by CSA. Anti-condensation heater is standard and will help protect actuator against damage caused by condensation. Two auxiliary limit switches are provided to confirm valve position.
High temperature valve mounting kit available for extended temperature range or wall mounting applications.
Ball Valve Standard Features1000 PSI working pressure (see P/T chart) Direct mounting valve per ISO5211 Full port design 316 stainless steel body, ball and stem Four ball seat design allows for Full Pressure at any port RTFE ball seats for extended cycle life Triple PTFE/Viton stem seal design, live loaded and adjustable
Electric Actuator Standard FeaturesQuarter turn operation with mechanical limits Rugged Type 4X weatherproof aluminum alloy housing Visual valve position indicator Manual override Heavy duty motor with overload protection Thermostatically controlled anti-condensation heater Two auxiliary limit switches to confirm valve position Self-locking all metal gear drive, no additional brake required CSA Listed per UL429 and CSA C22.2, CE mark
Options (see Accessories tab)
The ball valve is direct mounted to the actuator using the international standard ISO5211 mounting pad. Rugged unique integral motor/housing design provides higher torque in a very small package. Actuators are tested to rigorous UL and CSA standards and certified by CSA. Anti-condensation heater is standard and will help protect actuator against damage caused by condensation. Two auxiliary limit switches are provided to confirm valve position.
High temperature valve mounting kit available for extended temperature range or wall mounting applications.
Ball Valve Standard Features
Electric Actuator Standard Features
Options (see Accessories tab)
| Actuator Temperature Range | -13 to 131 °F (-25 to 55 °C) |
|---|---|
| Anti-Condensation Heater | 4 watts thermostatically controlled |
| Ball | 316 Stainless Steel |
| Ball Seats | RTFE (reinforced Teflon) |
| Current Rating | 1.28A (full load amps) |
| Cycle Time | 20 seconds per 90° rotation (no load) |
| Duty Cycle | 70% |
| Electrical Connections | Terminal strip, 1/2" NPT conduit (optional) / cable connector (included) |
| Enclosure | Aluminum alloy, polyester painted, SS fasteners |
| Enclosure Rating | Type 4X (IP67) weatherproof |
| Manual Override | 5mm hex drive with protective cover |
| Max Fluid Velocity | 10 feet per second |
| Motor Protection | Current sensor |
| Pipe Size | 1" NPT female |
| Port Size | Full Port, Orifice 1.00 inches, Cv 32 |
| Pressure (Max) | 1000 PSI (see P/T chart), 25 PSI steam with kit, vacuum service to 29" Hg |
| Stem Seals | RTFE (reinforced Teflon)/FKM (Viton) |
| Type | Electric Actuated 3 Way Valve- On/Off |
| Valve Body | 316 Stainless Steel |
| Valve Position Confirmation | 2 x SPST auxiliary limit switches rated 3A 125/250VAC,30VDC resistive load |
| Valve Temperature Range | -4 to 392 °F (-20 to 200 °C) |
| Voltage | 24VDC |
High Temperature Mounting Kit
Quick Close Option
Connectors & Cables
-
Conduit Adapter 1/2" NPT for 5618 Series Electric ActuatorsStock #: 561890Usually Ships: Same DayPrice: $21.40 -
7-Conductor Cable for 5618 Series Electric Actuators- 8ftStock #: 588008AUsually Ships: Same DayPrice: $28.37 -
7-Conductor Cable for 5618 Series Electric Actuators- 16ftStock #: 588009AUsually Ships: Same DayPrice: $53.50 -
7-Conductor Cable for 5618 Series Electric Actuators- 32ftStock #: 588010AUsually Ships: Same DayPrice: $103.75
-
1" Stainless 3-Way Ball Valve, L-Port, Direct MountStock #: 552808CUsually Ships: Same DayPrice: $300.22 -
