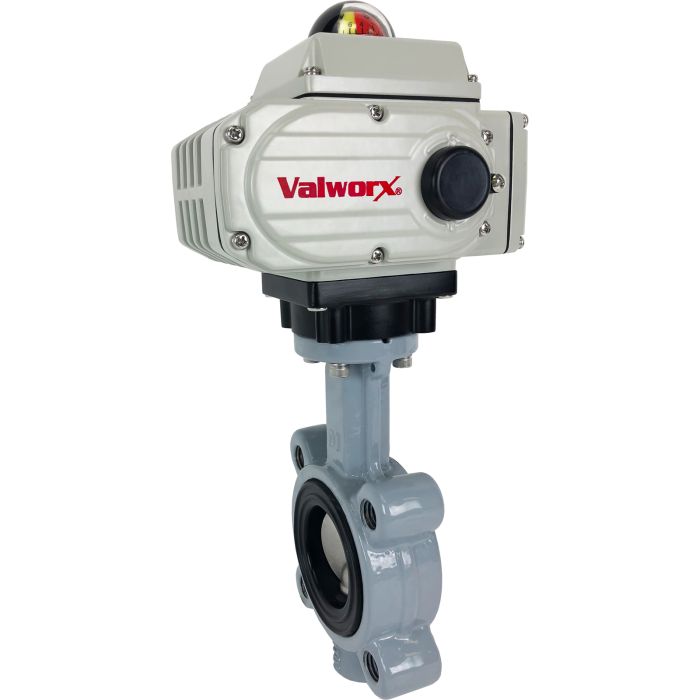

2-1/2" Electric Actuated Butterfly Valve, Lug, NBR, 110 VAC

Valworx 567337C electric actuated soft seated butterfly valve is used for on-off control of air, oil, vacuum and other media compatible with the materials of construction. Lug style valve sandwich mounts between customer supplied standard ANSI/ASME Class 125/ 150 pipe flanges. Standard unit is power-to-open and power to close, stays in last known position with loss of power. On receipt of a continuous voltage signal, the motor runs and via an all metal self-locking gear drive rotates the disc one quarter turn. The motor is automatically stopped by internal cams striking limit switches at both open and closed positions. On receipt of a reversing continuous signal, the motor turns in the opposite direction reversing the valve position.

The valve is direct mounted to the actuator using the international standard ISO5211 mounting pad. Rugged unique integral motor/housing design provides higher torque in a very small package. Special wave line seat and disc shape, reduces the required torque and extends the life of the valve. Precision machined 316SS disc with two-piece stem (shaft) construction, enhances the flow capacity of the valve and reduces turbulence. The stem utilizes PTFE/graphite bearings with V-ring seals preventing leakage.

Actuators are tested to rigorous UL and CSA standards and certified by CSA. Anti-condensation heater is standard and will help protect actuator against damage caused by condensation. Two auxiliary limit switches are supplied to confirm valve open and closed position.

Butterfly Valve Standard Features

Rugged ductile iron body with epoxy coating

Precision machined 316 Stainless Steel disc

Unique wave line seat design reduces the torque and extends the seal life

PTFE/graphite stem bearings with V-ring seals

Two piece stem/disc construction enhances flow and reduces turbulence

Standard ISO5211 actuator to valve direct mounting

Leak proof flange seals included as part of valve seat

Electric Actuator Standard Features

Quarter turn operation with mechanical limits

Rugged Type 4X weatherproof aluminum alloy housing

Visual valve position indicator

Manual override

Heavy duty motor with overload protection

Thermostatically controlled anti-condensation heater

Two auxiliary limit switches to confirm valve position

Self-locking all metal gear drive, no additional brake required

CSA Listed per UL429 and CSA C22.2, CE mark
