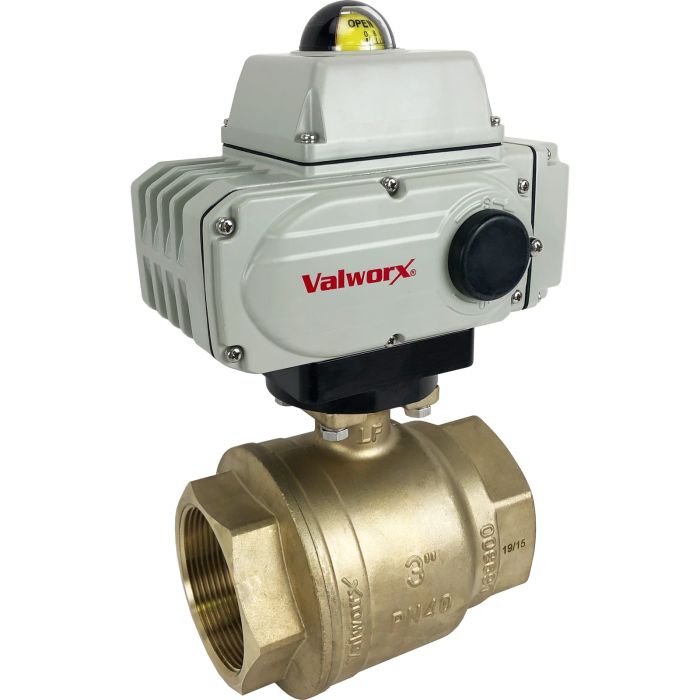

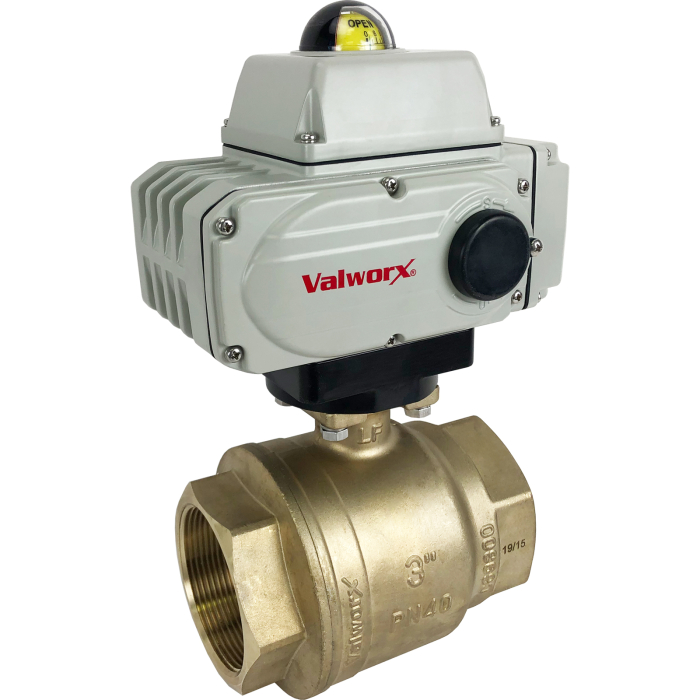

3" Electric Actuated Brass Ball Valve 24 VDC
SKU
567654A
Series
5676
List Price: $1,588.54
Price:
$1,270.83
- Buy 3 for $1,143.75 each and save 10%
Valworx 567654A electric actuated lead free brass ball valve is used for on-off control of water, air, oil, and other media compatible with the materials of construction. Ideal where lead free and NSF construction are required for potable drinking water as well as other industrial applications. These actuated valves use power-to-open and power to close, stays in last known position with loss of power. On receipt of a continuous voltage signal, the motor runs and via a self-locking all metal gear drive rotates the ball. The motor is stopped by internal cams striking limit switches. On receipt of a reversing continuous signal, the motor turns in the opposite direction reversing the valve position.
The valve is direct mounted to the actuator using the international standard ISO5211 mounting pad. Rugged unique integral motor/housing design provides higher torque in a very small package. Actuators are tested to rigorous UL and CSA standards and certified by CSA. Anti-condensation heater is standard and will help protect actuator against damage caused by condensation.
High temperature valve mounting kit available for extended temperature range or wall mounting applications.
Ball Valve Standard FeaturesLead free brass body 300 PSI working pressure (see P/T chart) Direct mount ball valve per ISO5211 Full port design for unrestricted flow 316 Stainless steel ball and stem Blow out proof stem Energized PTFE ball seats for lower torque and extended cycle life Leak free triple PTFE/Viton stem seal packing Certified per NSF372 and NSF 61 for potable/drinking water
Electric Actuator Standard FeaturesQuarter turn operation with mechanical stops Rugged Type 4X weatherproof aluminum alloy enclosure Visual valve position indicator Manual override Heavy duty motor with overload protection Thermostatically controlled anti-condensation heater Two auxiliary limit switches to confirm valve positions Self-locking all metal gear drive, no additional brake required CSA Listed per UL429 and CSA C22.2, CE mark
Options (see Accessories tab)
The valve is direct mounted to the actuator using the international standard ISO5211 mounting pad. Rugged unique integral motor/housing design provides higher torque in a very small package. Actuators are tested to rigorous UL and CSA standards and certified by CSA. Anti-condensation heater is standard and will help protect actuator against damage caused by condensation.
High temperature valve mounting kit available for extended temperature range or wall mounting applications.
Ball Valve Standard Features
Electric Actuator Standard Features
Options (see Accessories tab)
| Actuator Temperature Range | -22 to +140 °F (-30 to +60 °C) |
|---|---|
| Anti-Condensation Heater | 4 watts thermostatically controlled |
| Ball and Stem | 316 Stainless Steel |
| Ball Seats | PTFE (Teflon) energized with FKM (Viton) |
| Current Rating | 2.03A 24VDC (full load amps) |
| Cycle Time | 30 seconds per 90° rotation (no load) |
| Duty Cycle | 0.7 |
| Electrical Connections | Terminal strip, 1/2" NPT conduit (optional) / cable connector (included) |
| Enclosure | Aluminum alloy, polyester coating, SS fasteners |
| Enclosure Rating | Type 4X (IP67) weatherproof |
| Manual Override | 6mm hex drive with protective cover |
| Motor Protection | Thermal overload |
| Pipe Size | 3" NPT female |
| Port Size | Full Port, orifice 3.0 inches, Cv 551 |
| Pressure Rating | 300 PSI CWP non-shock (see P/T chart), Vacuum service to 29"Hg, 25 PSI steam with kit |
| Stem Seals | PTFE (Teflon) with dual FKM (Viton) seals |
| Type | 2-way On-Off |
| Valve Body | Lead Free Brass C69300 |
| Valve Position Confirmation | 2 x SPST auxiliary limit switches rated 3A 125/250VAC,30VDC resistive load |
| Valve Temperature Range | 0 to 366 °F (-18 to +185 °C) |
| Voltage | 24 VDC |
Quick Close Option
Connectors & Cables
-
Conduit Adapter 1/2" NPT for 5618 Series Electric ActuatorsStock #: 561890Usually Ships: Same DayPrice: $21.40 -
7-Conductor Cable for 5618 Series Electric Actuators- 8ftStock #: 588008AUsually Ships: Same DayPrice: $28.37 -
7-Conductor Cable for 5618 Series Electric Actuators- 16ftStock #: 588009AUsually Ships: Same DayPrice: $53.50 -
7-Conductor Cable for 5618 Series Electric Actuators- 32ftStock #: 588010AUsually Ships: Same DayPrice: $103.75
High Temperature Mounting Kit
-
-
Electric Actuator 885 in.lbs (100Nm), 24 VDCStock #: 561865AUsually Ships: 9- 16 WeeksPrice: $992.96
