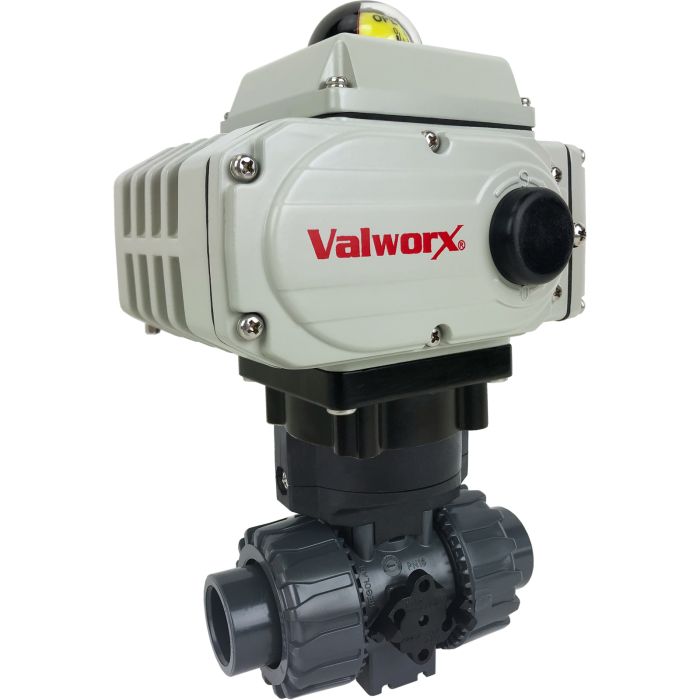

3/4" Electric Actuated PVC Ball Valve 24 VDC
SKU
565447C
Series
5654
List Price: $781.04
Price:
$624.83
- Buy 3 for $562.35 each and save 10%
Valworx 565447C electric actuated PVC ball valves are typically used for on-off control of water and liquid media compatible with the materials of construction (not suitable for air or gas). Ideal where NSF certified construction is required for potable drinking water as well as other industrial applications. These actuated valves use power-to-open and power to close, stays in last known position with loss of power. On receipt of a continuous voltage signal, the motor runs and via a self-locking all metal gear drive rotates the ball. The motor is stopped by internal cams striking limit switches. On receipt of a reversing continuous signal, the motor turns in the opposite direction reversing the valve position.
Rugged unique integral motor/housing design provides higher torque in a very small package. Actuators are tested to rigorous UL and CSA standards and certified by CSA. Anti-condensation heater is standard and will help protect actuator against damage caused by condensation. Two auxiliary limit switches are included to confirm valve open and closed positions. Typical applications include industrial/process piping, pulp and paper, food processing, water treatment and irrigation.
Ball Valve Standard FeaturesIndustrial grade full port PVC ball valve Tru Union with bi-directional flow Union nut locking device prevents back-off Energized PTFE ball seats for lower torque and extended life Leak free dual stem seal design Micro-adjustable ball seat carrier Pressure rated 232 PSI at 73°F Series 5510 NSF/ANSI/CAN 60 and NSF/ANSI 372 certified valve for potable drinking water Includes IPS glue sockets and NPT end connectors
Electric Actuator Standard FeaturesQuarter turn operation with mechanical stops Rugged Type 4X weatherproof aluminum alloy enclosure Visual valve position indicator Manual override Heavy duty motor with overload protection Thermostatically controlled anti-condensation heater Two auxiliary limit switches to confirm valve positions Self-locking all metal gear drive, no additional brake required CSA Listed per UL429 and CSA C22.2, CE mark
Rugged unique integral motor/housing design provides higher torque in a very small package. Actuators are tested to rigorous UL and CSA standards and certified by CSA. Anti-condensation heater is standard and will help protect actuator against damage caused by condensation. Two auxiliary limit switches are included to confirm valve open and closed positions. Typical applications include industrial/process piping, pulp and paper, food processing, water treatment and irrigation.
Ball Valve Standard Features
Electric Actuator Standard Features
| Actuator Temperature Range | -22 to 140 °F (-30 to 60 °C) |
|---|---|
| Anti-Condensation Heater | 4 watts thermostatically controlled |
| Ball and Stem | PVC |
| Ball Seats | PTFE (Teflon) energized with EPDM seals |
| Current Rating | 1.28A 24VDC (full load amps) |
| Cycle Time | 20 seconds per 90° rotation (+/- 10% no load) |
| Duty Cycle | 0.7 |
| Electrical Connections | Terminal strip, 1/2" NPT conduit (optional) / cable connector (included) |
| Enclosure | Aluminum alloy, polyester coating, SS fasteners |
| Enclosure Rating | Type 4X (IP67) weatherproof |
| Manual Override | 5mm hex drive with protective cover |
| Motor Protection | Current sensor |
| Pipe Size | 3/4 inch (both IPS glue socket and NPT end connectors included) |
| Port Size | Full Port, Cv 27 |
| Pressure Rating | 232 PSI (16 Bar) see P/T chart, Vacuum 29"Hg Not suitable for air or gas |
| Stem Seals | Dual EPDM seals |
| Type | 2-way On-Off |
| Valve Body | PVC |
| Valve Position Confirmation | 2 x SPDT auxiliary limit switches rated 3A 125/250VAC,30VDC resistive load |
| Valve Temperature Range | 32-140 °F (0 to 60 °C) |
| Voltage | 24 VDC |
