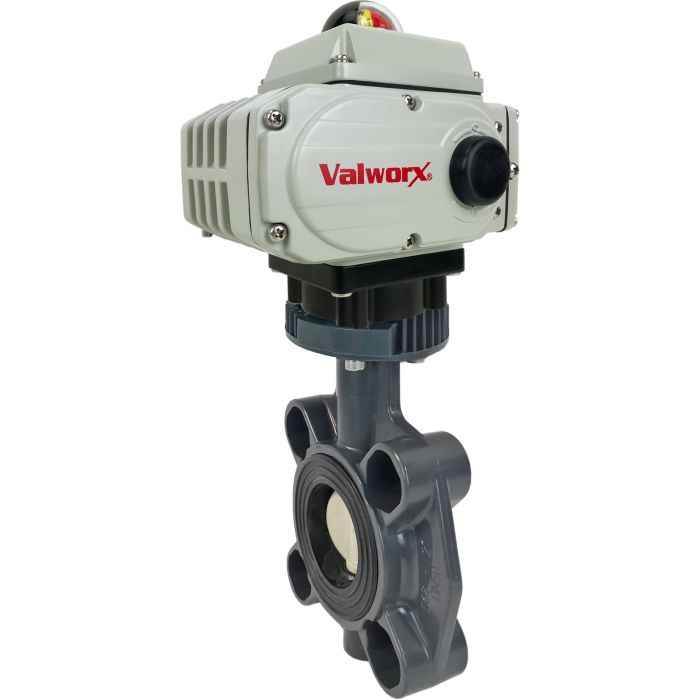

2" Electric Actuated PVC Butterfly Valve 24 VDC EPS Positioner
SKU
540902A
Series
5409
List Price: $1,838.51
Price:
$1,470.81
- Buy 3 for $1,323.73 each and save 10%
Valworx 540902A electric actuated PVC butterfly valves are typically used for control of water and liquid media compatible with the materials of construction. Ideal where NSF certified construction is required for potable drinking water as well as other industrial applications.
The EPS- Electronic Positioner System provides an accurate valve positioning function whereby the movement of the actuator is controlled by a 4-20mA input control signal. Any change in the input signal results in a corresponding and proDiscional change in the position of the ball. The internal microprocessor and closed loop feedback system continuously monitors and maintains accurate valve position. Valve can be set to fail closed, in-place or open with loss of control signal (4-20mA input). The valve will remain in the last known position with loss of electric power. The positioning module is self-calibrating and fully potted to help protect the electronics against vibration and moisture. Valve position can be monitored with onboard analog output signal.
Rugged unique integral motor/housing design provides higher torque in a very small package. Actuators are tested to rigorous UL and CSA standards and certified by CSA. Anti-condensation heater is standard and will help protect actuator against damage caused by condensation. Typical applications include industrial/process piping, pulp and paper, food processing, water treatment and irrigation.
Modbus control is available as a factory-installed option. Click on the Accessories tab for details.
PVC butterfly valves should never be used for compressed gas applications.
Butterfly Valve Standard FeaturesIndustrial grade PVC butterfly valve Pressure rated 232psi at 73°F Polypropylene (PP) disc ANSI 150 wafer-style flange connection 316 stainless steel shaft EPDM primary liner Series 5402 NSF/ANSI/CAN 60 and NSF/ANSI 372 certified valve for potable drinking water
Electric Actuator Standard Features Quarter turn operation with mechanical stops Rugged Type 4X weatherproof aluminum alloy enclosure Visual valve position indicator Manual override Heavy duty motor with overload protection Thermostatically controlled anti-condensation heater Analog output signal to confirm valve position Self-locking all metal gear drive, no additional brake required CSA Listed per UL429 and CSA C22.2, CE mark
The EPS- Electronic Positioner System provides an accurate valve positioning function whereby the movement of the actuator is controlled by a 4-20mA input control signal. Any change in the input signal results in a corresponding and proDiscional change in the position of the ball. The internal microprocessor and closed loop feedback system continuously monitors and maintains accurate valve position. Valve can be set to fail closed, in-place or open with loss of control signal (4-20mA input). The valve will remain in the last known position with loss of electric power. The positioning module is self-calibrating and fully potted to help protect the electronics against vibration and moisture. Valve position can be monitored with onboard analog output signal.
Rugged unique integral motor/housing design provides higher torque in a very small package. Actuators are tested to rigorous UL and CSA standards and certified by CSA. Anti-condensation heater is standard and will help protect actuator against damage caused by condensation. Typical applications include industrial/process piping, pulp and paper, food processing, water treatment and irrigation.
Modbus control is available as a factory-installed option. Click on the Accessories tab for details.
PVC butterfly valves should never be used for compressed gas applications.
Butterfly Valve Standard Features
Electric Actuator Standard Features
| Actuator Temperature Range | -22 to 140 °F (-30 to 60 °C) |
|---|---|
| Anti-Condensation Heater | 4 watts thermostatically controlled |
| Current Rating | 1.28A (full load amps) |
| Cv | 90 |
| Cycle Time | 20 seconds per 90° rotation (+/- 10% no load) |
| Disc | PP |
| Duty Cycle | 0.7 |
| Electrical Connections | Terminal strip, 1/2" NPT conduit (optional) / cable connector (included) |
| Enclosure | Aluminum alloy, polyester coating, SS fasteners |
| Enclosure Rating | Type 4X (IP67) weatherproof |
| Input Control Signal | 4-20mA |
| Manual Override | 5mm hex drive with protective cover |
| Motor Protection | Thermal overload |
| Pipe Size | 2 inch |
| Pressure Rating | 232 PSI (16 Bar) see P/T chart (not suitable for air or gas) |
| Primary Liner | EPDM |
| Shaft | 316 Stainless Steel |
| Type | 2-way with EPS Positioner |
| Valve Body | PVC |
| Valve Position Confirmation | 4-20mA output monitoring signal (same type as input signal) |
| Valve Temperature Range | 40-140 °F (4 to 60 °C) |
| Voltage | 24 VDC 50/60Hz |
