1-1/4" V-Port Stainless Steel Ball Valve 24 VDC
SKU
550210
Series
5502
List Price: $1,613.91
Price:
$1,291.13
- Buy 3 for $1,162.02 each and save 10%
Select the desired V-port vertex angle (30°, 60°, or 90°) from the Accessories tab.

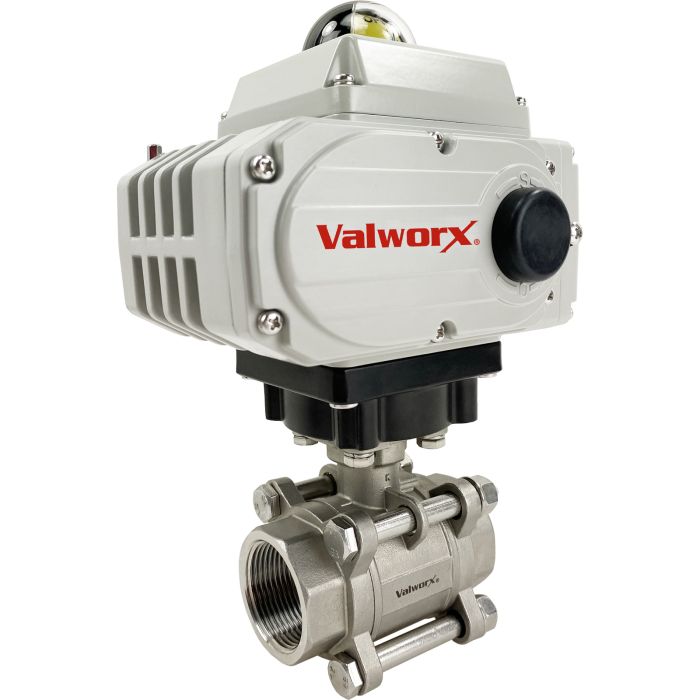

Valworx 550210 electric actuated stainless steel v-port valves are designed for applications requiring precise flow control. Suitable for use with water, air, oil, and other media compatible with the materials of construction. The valve has a unique three piece investment cast bolted body design with the advantage of a swing out body for easy inline maintenance. The EPS- Electronic Positioning System provides an accurate valve positioning function whereby the movement of the actuator is controlled by a 4-20mA input control signal. Any change in the control input signal results in a corresponding and proportional change in the position of the ball. The internal microprocessor and closed loop feedback system continuously monitors and maintains accurate valve position. The valve will remain in the last known position with loss of electric power.
The positioning module is self-calibrating and fully potted to help protect the electronics against vibration and moisture. Valve position can be monitored with onboard analog output signal.
The valve is direct mounted to the actuator using the international standard ISO5211 mounting pad. Rugged unique integral motor/housing design provides higher torque in a very small package. Actuators are tested to rigorous UL and CSA standards and certified by CSA. Anti-condensation heater is standard and will help protect actuator against damage caused by condensation. All valves trested per API 598.
High temperature valve mounting kit available for extended temperature range or wall mounting applications.
Modbus control is available as a factory-installed option. Click on the Accessories tab for details.
Ball Valve Standard Features1000 PSI working pressure (see P/T chart) Direct mounting valve per ISO5211 V-port valves available in 30, 60 & 90° vertex angles 316 stainless steel body, ball and stem Blow out proof stem RTFE ball seats extend cycle life Triple PTFE/Viton stem seal design, live loaded
Electric Actuator Standard FeaturesEPS-Electronic Positioning System with 4-20mA input Quarter turn operation with mechanical limits Rugged Type 4X weatherproof aluminum alloy housing Visual valve position indicator Manual override Heavy duty motor with overload protection Thermostatically controlled anti-condensation heater Analog output signal to confirm valve position Self-locking all metal gear drive, no additional brake required CSA Listed per UL429 and CSA C22.2, CE marked
Options (see Accessories tab)
Valworx 550210 electric actuated stainless steel v-port valves are designed for applications requiring precise flow control. Suitable for use with water, air, oil, and other media compatible with the materials of construction. The valve has a unique three piece investment cast bolted body design with the advantage of a swing out body for easy inline maintenance. The EPS- Electronic Positioning System provides an accurate valve positioning function whereby the movement of the actuator is controlled by a 4-20mA input control signal. Any change in the control input signal results in a corresponding and proportional change in the position of the ball. The internal microprocessor and closed loop feedback system continuously monitors and maintains accurate valve position. The valve will remain in the last known position with loss of electric power.
The positioning module is self-calibrating and fully potted to help protect the electronics against vibration and moisture. Valve position can be monitored with onboard analog output signal.
The valve is direct mounted to the actuator using the international standard ISO5211 mounting pad. Rugged unique integral motor/housing design provides higher torque in a very small package. Actuators are tested to rigorous UL and CSA standards and certified by CSA. Anti-condensation heater is standard and will help protect actuator against damage caused by condensation. All valves trested per API 598.
High temperature valve mounting kit available for extended temperature range or wall mounting applications.
Modbus control is available as a factory-installed option. Click on the Accessories tab for details.
Ball Valve Standard Features
Electric Actuator Standard Features
Options (see Accessories tab)
| Actuator Temperature Range | -13 to 131 °F (-25 to +55 °C) |
|---|---|
| Anti-Condensation Heater | 4 watts thermostatically controlled |
| Ball | 316 Stainless Steel |
| Ball Seats | RTFE (reinforced Teflon) |
| Current Rating | 1.0A (full load amps) |
| Cycle Time | 20 seconds per 90° rotation (no load) |
| Duty Cycle | 70% |
| Electrical Connections | Terminal strip, 1/2" NPT conduit / cable connector (included) |
| Enclosure | Aluminum alloy, polyester painted, SS fasteners |
| Enclosure Rating | Type 4X (IP67) weatherproof |
| Input Control Signal | 4-20mA |
| Manual Override | 5mm hex drive with protective cover |
| Max Fluid Velocity | 10 feet per second |
| Motor Protection | Current sensor |
| Pipe Size | 1-1/4" NPT female |
| Port Size | V-Port, orifice 1.3 inches, Cv 13.2/24.5/55.0 Vertex Angle 30°/60°/90° |
| Pressure (Max) | 1000 PSI (see P/T chart), 25 PSI saturated steam with kit, vacuum service to 29" Hg |
| Stem Seals | PTFE/ Viton (live loaded and adjustable) |
| Type | Electric Actuated V-Port Ball Valve- Positioner |
| Valve Body | 316 Stainless Steel |
| Valve Position Confirmation | 4-20mA output monitoring signal (same type as input signal) |
| Valve Temperature Range | -4 to 392 °F (-20 to 200 °C) |
| Voltage | 24 VDC |
V-Port Vertex Angle Options
Modbus Control System
Connectors & Cables
-
