Electric Actuator 3097 in.lbs (300Nm), 24-240V
SKU
561604C
Series
5616
List Price: $1,852.65
Price:
$1,482.12
- Buy 3 for $1,333.91 each and save 10%

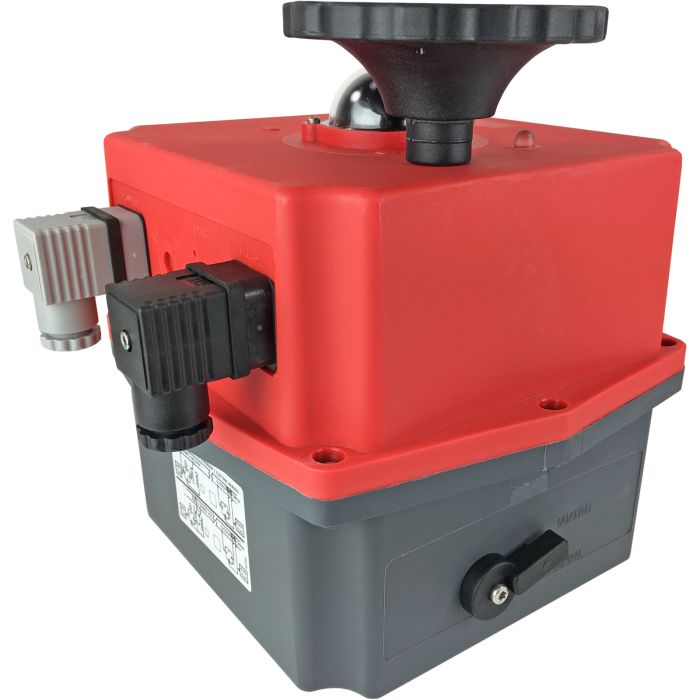

Electric Actuator Standard FeaturesBrushless motor Multi-voltage capable with auto-voltage sensing Electronic torque limiter - protects against valve jams Anti-condensation heater Manual override with visual valve position indicator All electrical connections via external DIN plugs (included) - no need to remove cover Two dry contact limit switches used to confirm open/closed valve position Rugged IP67 weatherproof housing, CE marked
The 5616 series feature packed electric actuators take the valve automation industry to the next level. Standard function for the 5616 is power open, power close, stays put on power failure. With an all new, rugged weatherproof and anti-corrosive Polyamide housing, the 5616 offers more user-friendly features. The 5616 is quick and easy to install, with IS0:5211 multi-flange mounting and a double square drive, allowing fast mounting to ISO:5211 valves.
There is no need to remove the cover to connect the 5616 electrically, saving installation time. Using the external DIN plugs and external wiring diagrams supplied with the actuator, installations can be pre-wired. Protection against valve jams is provided by an electronic torque limiter, which auto-relaxes the gearbox when activated, allowing the manual override to be selected to assist in clearing the jam. The effect of condensation is eliminated by an internal thermostatic anti-condensation heater that does not require a separate independent power supply.
Options for 5616 Actuator (see Accessories tab)
The 5616 series feature packed electric actuators take the valve automation industry to the next level. Standard function for the 5616 is power open, power close, stays put on power failure. With an all new, rugged weatherproof and anti-corrosive Polyamide housing, the 5616 offers more user-friendly features. The 5616 is quick and easy to install, with IS0:5211 multi-flange mounting and a double square drive, allowing fast mounting to ISO:5211 valves.
There is no need to remove the cover to connect the 5616 electrically, saving installation time. Using the external DIN plugs and external wiring diagrams supplied with the actuator, installations can be pre-wired. Protection against valve jams is provided by an electronic torque limiter, which auto-relaxes the gearbox when activated, allowing the manual override to be selected to assist in clearing the jam. The effect of condensation is eliminated by an internal thermostatic anti-condensation heater that does not require a separate independent power supply.
Options for 5616 Actuator (see Accessories tab)
| Auxiliary Switches | 2 x SPST dry contact 220/5A (confirm open/close position) |
|---|---|
| Cycle Time | 58 seconds per 90° rotation |
| Duty Cycle | 0.75 |
| Electrical Connections | DIN plug with cable entry (optional 1/2" conduit plugs or pre-wired cable) |
| Enclosure | IP67 weatherproof polyamide housing, UV protected |
| Heater | 4 watt (thermostatic anti-condensation) |
| ISO 5211 Mount | F07 & F10 |
| Max Break Torque | 3097 in lbs (350Nm) |
| Max Run Torque | 2655 in lbs (300Nm) |
| Motor Switches | 2 x SPST |
| Motor Type | Brushless |
| Output Drive | 22mm double square |
| Power Consumption | 0.8A 110VAC, 0.5A 240VAC, 3.3A 24VAC 2.7A 24VDC (full load amps) |
| Temperature Range | -4 to +158 °F (-20 to +70 °C) |
| Voltage | 24-240 Volt AC or DC (1ph, auto-voltage sensing) |
| Working Rotation | 90° |
Digital Positioner System
-
5616C DPS-Digital Positioner System Kit 4-20mA - InstalledStock #: 561108CUsually Ships: Same DayPrice: $655.59 -
5616C DPS-Digital Positioner System Kit 0-10v - InstalledStock #: 561109CUsually Ships: Same DayPrice: $655.59
Failsafe Battery Kit
-
5616C BSR-NC Failsafe Battery Kit - InstalledStock #: 561106CUsually Ships: Same DayPrice: $655.60 -
5616C BSR-NO Failsafe Battery Kit - InstalledStock #: 561107CUsually Ships: Same DayPrice: $655.59
