ISO DIN Connector 1/2" Conduit Connection
Stock #
588002
Series
Accessory
List Price: $7.00
Price: $5.60
- Buy 10 for $5.04 each
Usually Ships: Same Day

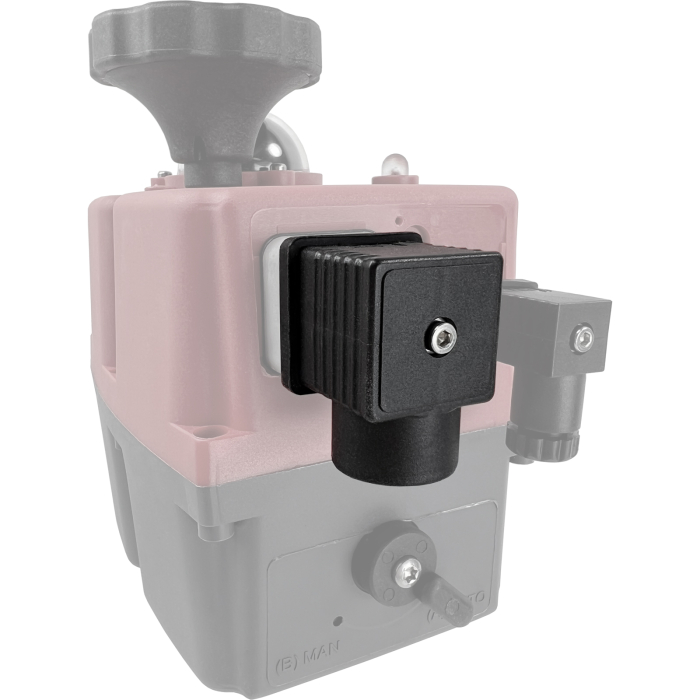

ISO plug connectors with 1/2" female conduit connection are made to DIN 43650 and ISO 4400 industry standards. These connectors offer distinct advantages over "hardwired" connections with their built in screw terminals and modular plug (unplug) design. These plug connectors are rated IP67 for dust and water resistance. Maximum wire size 18 gauge.
| Type | Connector Type |
|---|---|
| Disc Seat/Liner | EPDM |
| Enclosure Protection | IP67 weatherproof |
| Connector Type | ISO 43650 Form A |
| Housing | 22 x 22 mm square |
| Number of conductors | 3 |
| Pin Spacing | 18 mm (pin 1 to pin 2) |
| Wire Size (max) | 18/3 AWG |
