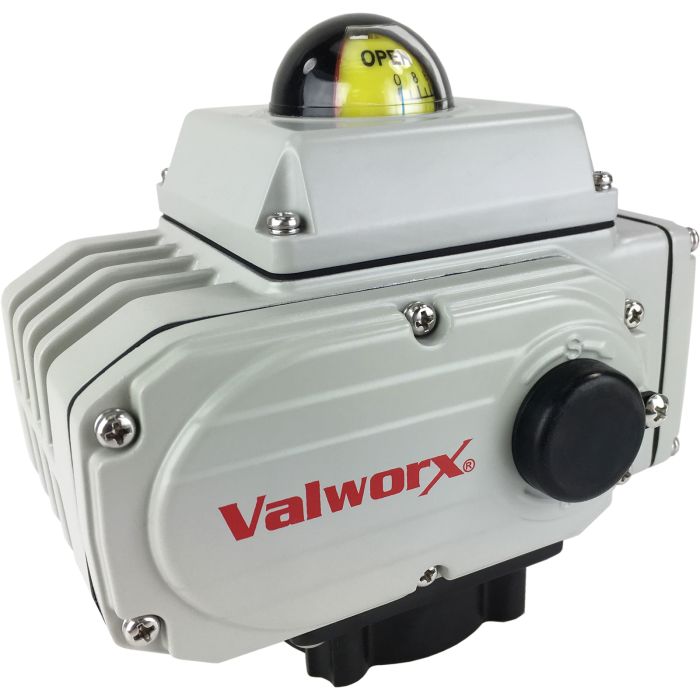

Electric Actuator 5310 in.lbs (600Nm), 110 VAC, EPS Positioner

SKU

561896A

Series

5618

List Price: $3,081.60

Price: $2,465.28

Buy 3 for $2,218.75 each and save 10%

Description

Electric Actuator Standard Features

EPS-Electronic Positioning System

Quarter turn operation with mechanical limits

Rugged Type 4X weatherproof aluminum alloy enclosure

Visual valve position indicator

Manual override

Heavy duty motor with overload protection

Thermostatic anti-condensation heater

Self-locking all metal gear drive, no additional brake required

Standard ISO5211 multi-flange valve mounting

CSA Listed per UL429 and CSA C22.2 standards, CE mark

Valworx 561896A electric actuator with EPS- Electronic Positioning System is controlled by a 4-20mA input control signal. Changing the input control signal results in a corresponding and proportional change in the position of the actuator output drive.

The EPS system is self-calibrating which virtually eliminates "hunting" and provides an output position monitoring signal as standard. The positioning module is fully potted to help protect the electronics from vibration and moisture. Actuator will remain in the last known position with loss of electric power. With main power on and a loss of control signal, actuator can be set to fail closed, fail open or fail in place.

These rugged electric actuators are typically used to automate quarter turn ball valves, butterfly valves or dampers. The actuator is easy to install with international standard ISO5211 multi-flange mounting and a double square output drive. Unique integral motor/housing design provides higher torque in a very small package. Actuators are tested to rigorous UL and CSA standards and certified by CSA. Anti-condensation heater is standard and will help protect actuator against damage caused by condensation.

Specifications

More Information
Anti-Condensation Heater	4 watts thermostatically controlled
Approvals	CSA Listed. Conforms to UL Std 429 Certified to CSA Std C22.2 No. 139. CE Mark
Current Rating	1.27A (full load amps)
Cycle Time	45 seconds per 90° rotation (no load)
Duty Cycle	0.7
Electrical Connections	Terminal strip, 1/2" NPT conduit (optional) / cable connector (included)
Enclosure	Aluminum alloy, polyester painted, SS fasteners
Enclosure Protection	Type 4X (IP67) weatherproof
Input Control Signal	4-20mA
ISO 5211 Mount	F07, F10 (multi-flange)
Manual Override	6mm hex drive with protective cover
Max Torque	5310 in lbs (600Nm)
Motor Protection	Thermal overload
Output Drive	27mm double square (female)
Temperature Range	-22 to 140 °F (-30 to +60 °C)
Type	EPS Positioner
Valve Position Confirmation	4-20mA output monitoring signal (same type as input signal)
Voltage	110 VAC 50/60 Hz
Working Rotation	90° (quarter turn)
