1 1/2" Explosion Proof 150# Flanged SS Ball Valve 110 VAC

Description

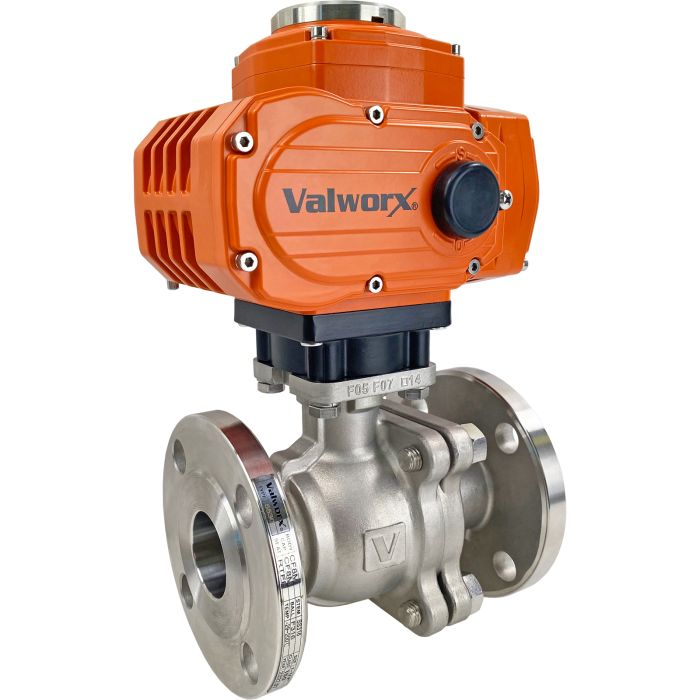

Valworx 586003 explosion proof, low emission 2-piece 150# flanged stainless steel ball valves for on-off control of oil & gas, water, air and other media compatible with the materials of construction. Dual-certified fire-safe/low emission valve made of 316 stainless steel mounts between standard ANSI 150 pound pipe flanges. The explosion-proof actuator is power-to-open and power to close, stays in last known position with loss of power. On receipt of a continuous voltage signal, the motor runs and via a self-locking gear drive rotates the ball one quarter turn. The motor is stopped by internal cams striking limit switches. On receipt of a reversing continuous signal, the motor turns in the opposite direction reversing the valve position.

The valve is direct mounted to the actuator using the international standard ISO5211 mounting pad. Rugged unique integral motor/housing design provides higher torque in a very small package. Actuators certified for UL Class I Div I Groups C & D, and are tested to rigorous UL and CSA standards and certified by CSA.

Ball Valve Standard Features

275 PSI working pressure (see P/T chart)

Direct mounting valve per ISO5211

Full port for unrestricted flow

316 stainless steel body, ball and stem

Blow out proof stem

RTFE ball seats extend cycle life

Braided graphite/Viton stem seal design, live loaded and adjustable

Electric Actuator Standard Features

Explosion proof rated for UL Class I Div I Groups C & D, Ex db IIC T5 Gb Class 1 Zone 1, AEx db IIC T5 Gbs

Rugged Type 4X weatherproof aluminum alloy housing

Visual valve position indicator

Manual override

Heavy duty motor with overload protection

Thermostatically controlled anti-condensation heater

Two auxiliary limit switches to confirm valve position

Self-locking all metal gear drive, no additional brake required

CSA Listed per UL429 and CSA C22.2, CE mark as well as ExP ratings listed above

Options (see Accessories tab)

Specifications

More Information
Actuator Temperature Range	-13 to 131 °F (-25 to +55 °C)
Anti-Condensation Heater	4 watts thermostatically controlled
Ball	316 Stainless Steel
Ball Seats	RTFE (reinforced Teflon)
Current Rating	0.27A (full load amps)
Cycle Time	21 seconds per 90° rotation (no load)
Duty Cycle	0.7
Electrical Connections	Two 1/2" NPT threaded ports. Requires Exp rated connector or pipe (not included).
Enclosure	Aluminum alloy, polyester painted, SS fasteners
Enclosure Rating	Type 4X (IP67) weatherproof
Explosion Proof	UL Class I Div I Groups C & D, Ex db IIC T5 Gb Class 1 Zone 1, AEx db IIC T5 Gb
Fire Safe	API 607
Flange Dimensions	ANSI B16.5 Class 150
Flange Face to Face	ANSI B16.10 Class 150
Low Emission	API 641
Manual Override	5mm hex drive with protective cover
Max Fluid Velocity	10 feet per second
Motor Protection	Thermal overload
Pipe Size	1 1/2" ANSI 150# flanged
Pipeline Use	API 608
Port Size	Full Port, orifice 1.50 inches, Cv 60
Pressure (Max)	275 PSI (see P/T chart), 21 PSI steam with kit, vacuum service to 29" Hg
Stem Seals	Braided Graphite/ FKM (Viton)
Stem Packing	API 622
Type	2-way Flanged On-Off
Valve Body	316 Stainless Steel
Valve Position Confirmation	2 x SPST auxiliary limit switches rated 3A@121/210VAC,30VDC resistive load
Valve Temperature Range	-4 to +392 °F (-20 to +200 °C)
Voltage	110 VAC 50/60 Hz
