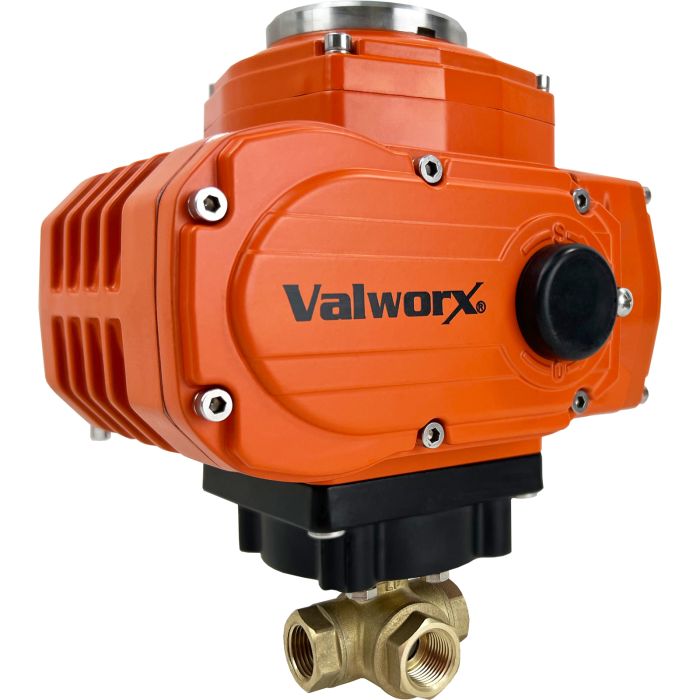

3/8" Explosion Proof 3-way Brass T-Diverter Valve 110 VAC

Valworx 583603 explosion proof 3-way FULL PORT lead free ball valves are used to control the flow of water, air, oil, and other media compatible with the materials of construction. These 3-way T-Port valves are typically used as diverter or mixing valves. Four ball seat design allows for full pressure at any port. Ideal where lead free and NSF approved construction are required for potable drinking water, or other general industrial applications in hazardous environments. Actuator uses power-to-open (position 2) and power-to-close (position 1), stays in last known position with loss of power. On receipt of a continuous voltage signal, the motor runs and via an all metal self-locking gear drive rotates the ball one quarter turn. The motor is automatically stopped by internal cams striking limit switches. On receipt of a reversing continuous signal, the motor turns in the opposite direction reversing the valve position. There is no flow shutoff position with this type valve.

The ball valve is direct mounted to the actuator using the international standard ISO5211 mounting pad. Valworx does not recommend the use of high temperature brackets with explosion proof actuators. Rugged unique integral motor/housing design provides higher torque in a very small package.

Actuators certified for UL Class I Div I Groups C & D, and are tested to rigorous UL and CSA standards and certified by CSA. Two auxiliary limit switches are provided to confirm valve position.

High performance ball and stem are made of 316 stainless steel rather than the typical plated brass. Energized PTFE ball seats are designed for low torque and extended cycle life. These ball valves offer a unique triple PTFE/Viton leak free stem seal design.

Ball Valve Standard Features

Full Port design

Lead free brass body

400 PSI working pressure (see P/T chart)

Direct mounting valve per ISO5211

Stainless steel ball and stem

Four ball seat design allows for full pressure at any port

Energized PTFE ball seats for extended cycle life and reduced torque

Leak free triple PTFE/Viton stem seal design

Certified per NSF372 and NSF61 for use with potable/drinking water

Electric Actuator Standard Features

Explosion proof rated for UL Class I Div I Groups C & D, Ex db IIC T5 Gb Class 1 Zone 1, AEx db IIC T5 Gbs

Rugged Type 4X weatherproof aluminum alloy enclosure

Visual valve position indicator

Manual override

Heavy duty motor with overload protection

Two auxiliary limit switches to confirm valve positions

Self-locking all metal gear drive, no additional brake required

CSA Listed per UL429 and CSA C22.2, CE mark as well as ExP ratings listed above

Options (see Accessories tab)
