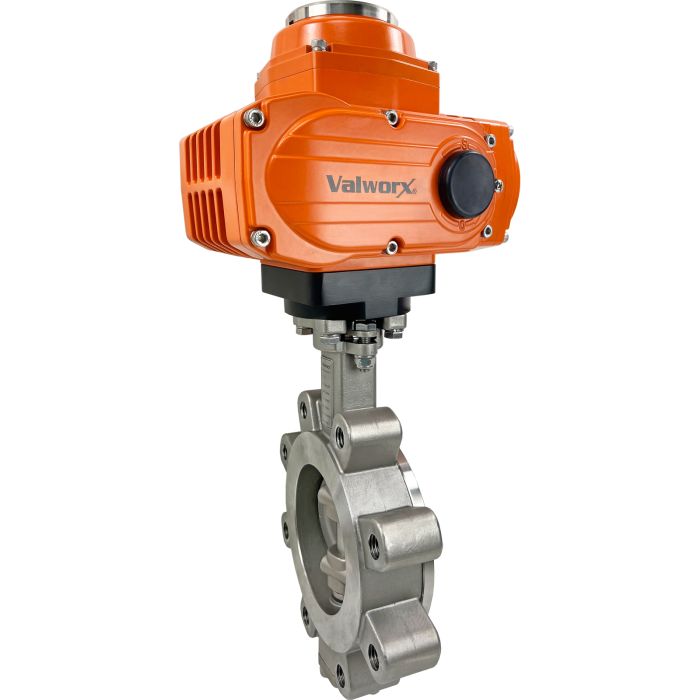

4" Explosion Proof High Performance Butterfly Valve, Lug, 110 VAC
SKU
589504A
Series
5895
List Price: $2,424.46
Price:
$1,939.57
- Buy 3 for $1,745.61 each and save 10%
Valworx 589504A explosion proof high performance butterfly valve is used for on-off control of water, air, oil, and other media compatible with the materials of construction. Standard unit is power-to-open and power to close, stays in last known position with loss of power. On receipt of a continuous voltage signal, the motor runs and via a self-locking gear drive rotates the disc. The motor is stopped by internal cams striking limit switches. On receipt of a reversing continuous signal, the motor turns in the opposite direction reversing the valve position.
The valve is direct mounted to the actuator using the international standard ISO5211 mounting pad. Rugged unique integral motor/housing design provides higher torque in a very small package. Actuator certified for UL Class I Div I Groups C & D, and are tested to rigorous UL and CSA standards and certified by CSA.
High Performance Butterfly Valve Standard FeaturesDouble offset design greatly reduces seal wear 17-4PH stainless steel, single piece shaft RPTFE valve seats and stem seals Heavy duty, single piece cast and machined disc with integral mounting sleeve Bi-directional seal design ensures increased sealing force in either flow direction Integral ISO 5211 mounting pad eliminates additional mounting brackets
Electric Actuator Standard FeaturesExplosion proof rated for UL Class I Div I Groups C & D, Ex db IIC T5 Gb Class 1 Zone 1, AEx db IIC T5 Gbs Rugged Type 4X weatherproof aluminum alloy enclosure Visual valve position indicator Manual override Heavy duty motor with overload protection Two auxiliary limit switches to confirm valve positions Self-locking all metal gear drive, no additional brake required CSA Listed per UL429 and CSA C22.2, CE mark as well as ExP ratings listed above
Options (see Accessories tab)
The valve is direct mounted to the actuator using the international standard ISO5211 mounting pad. Rugged unique integral motor/housing design provides higher torque in a very small package. Actuator certified for UL Class I Div I Groups C & D, and are tested to rigorous UL and CSA standards and certified by CSA.
High Performance Butterfly Valve Standard Features
Electric Actuator Standard Features
Options (see Accessories tab)
| Actuator Temperature Range | -13 to +131 °F (-25 to +55 °C) |
|---|---|
| Current Rating | 0.63A (full load amps) |
| Cycle Time | 30 seconds per 90° rotation (no load) |
| Disc | Single piece, machined 316 stainless steel |
| Disc Seat/Liner | RPTFE |
| Disc Size | 3.6 inches |
| Duty Cycle | 70% |
| Electrical Connections | Two 1/2" NPT threaded ports. Requires Exp rated connector or pipe (not included) |
| Enclosure | Aluminum alloy, polyester painted, SS fasteners |
| Enclosure Rating | Type 4X (IP67) weatherproof |
| Flow Factor | Cv 375 (Cv = number of GPM of 60 °F water at 1 psi pressure drop) |
| Manual Override | 5mm hex drive with protective cover |
| Max Fluid Velocity | 10 feet per second |
| Motor Protection | Thermal overload |
| Pipe Size | 4 inch (DN100) |
| Pressure Rating | 285 PSI (19 Bar), Full Vacuum |
| Stem Packing | RPTFE |
| Suitable Flanges | ANSI /ASME B16.5 Class150, MSSSP44 Class 150, API605 Class 150, JIS B2212 10K, JIS B2212 16K |
| Type | Explosion Proof High Performance Butterfly Valve- On/Off |
| Valve Body | 316 Stainless Steel |
| Valve Position Confirmation | 2 SPDT auxiliary limit switches 3A @125/250VAC, 30VDC resistive load |
| Valve Temperature Range | -40 to 450 °F (-40 to 230 °C) |
| Voltage | 110 VAC 50/60 Hz |
