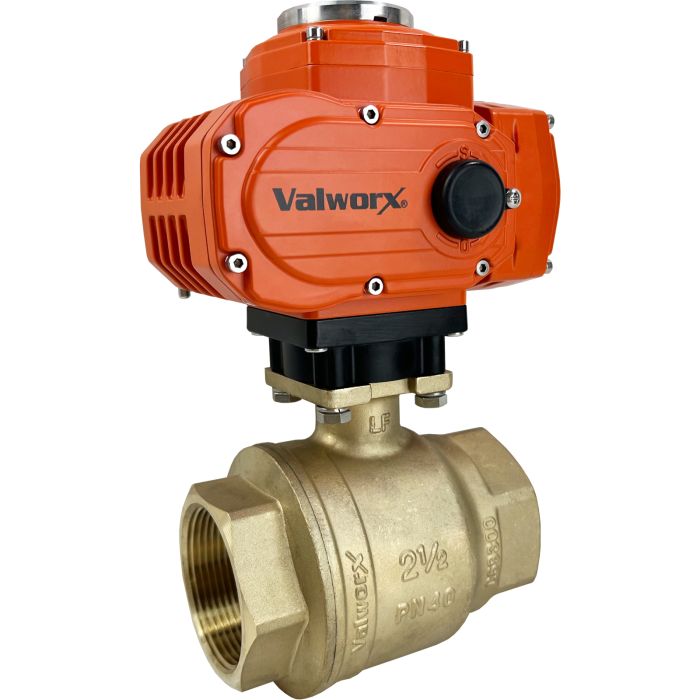

2-1/2" Explosion Proof Brass Ball Valve 110 VAC

Description

Valworx 583017 explosion proof lead free brass ball valve is used for on-off control of water, air, oil, and other media compatible with the materials of construction. Ideal where lead free and NSF construction are required for potable drinking water as well as other industrial applications. The explosion proof actuator uses power-to-open and power to close, stays in last known position with loss of power. On receipt of a continuous voltage signal, the motor runs and via a self-locking all metal gear drive rotates the ball. The motor is stopped by internal cams striking limit switches. On receipt of a reversing continuous signal, the motor turns in the opposite direction reversing the valve position.

The valve is direct mounted to the actuator using the international standard ISO5211 mounting pad. Valworx does not recommend the use of high temperature brackets with explosion proof actuators. Rugged unique integral motor/housing design provides higher torque in a very small package. Actuators certified for UL Class I Div I Groups C & D, and are tested to rigorous UL and CSA standards and certified by CSA.

Ball Valve Standard Features

Lead free brass body

600 PSI working pressure (see P/T chart)

Direct mount ball valve per ISO5211

Full port design for unrestricted flow

316 Stainless steel ball and stem

Blow out proof stem

Energized PTFE ball seats for lower torque and extended cycle life

Leak free triple PTFE/Viton stem seal packing

Certified per NSF372 and NSF 61 for potable/drinking water

Electric Actuator Standard Features

Explosion proof rated for UL Class I Div I Groups C & D, Ex db IIC T5 Gb Class 1 Zone 1, AEx db IIC T5 Gbs

Rugged Type 4X weatherproof aluminum alloy enclosure

Visual valve position indicator

Manual override

Heavy duty motor with overload protection

Two auxiliary limit switches to confirm valve positions

Self-locking all metal gear drive, no additional brake required

CSA Listed per UL429 and CSA C22.2, CE mark as well as ExP ratings listed above

Options (see Accessories tab)

Specifications

More Information
Actuator Temperature Range	-13 to +131 °F (-25 to +55 °C)
Ball Seats	PTFE (Teflon) energized with FKM (Viton)
Ball Stem	316 Stainless Steel
Current Rating	0.27A (full load amps)
Cycle Time	20 seconds per 90° rotation (no load)
Duty Cycle	70%
Electrical Connections	Two 1/2" NPT threaded ports. Requires Exp rated connector or pipe (not included)
Enclosure	Aluminum alloy, polyester coating, SS fasteners
Enclosure Rating	Type 4X (IP67) weatherproof
Explosion Proof	UL Class I Div I Groups C & D, Ex db IIC T5 Gb Class 1 Zone 1, AEx db IIC T5 Gb
Manual Override	5mm hex drive with protective cover
Max Fluid Velocity	10 feet per second
Motor Protection	Thermal overload
Pipe Size	1/4" NPT female
Port Size	Full Port, orifice 2.5 inches, Cv 320
Pressure Rating	300 PSI CWP non-shock (see P/T chart), Vacuum service to 29"Hg, 25 PSI steam with kit
Stem Seals	PTFE (Teflon) with dual FKM (Viton) seals
Type	2-way Explosion Proof On-Off
Valve Body	Lead Free Brass C69300
Valve Position Confirmation	2 x SPST auxiliary limit switches rated 3A@125/250VAC,30VDC resistive load
Valve Temperature Range	0 to 366 °F (-18 to +185 °C)
Voltage	110 VAC 50/60Hz
