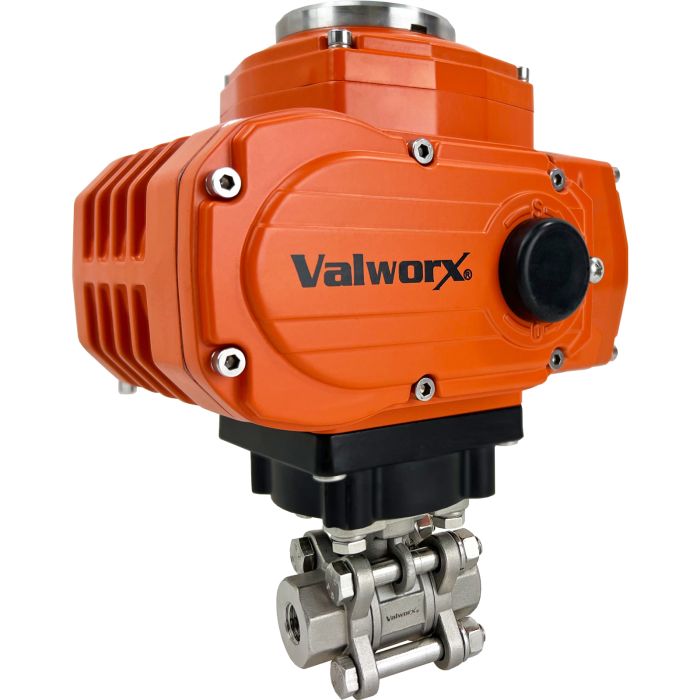

1/4" Explosion Proof V-Port SS Ball Valve 110 VAC
Stock #
586802
Series
5868
List Price: $1,783.80
Price: $1,427.04
- Buy 3 for $1,284.34 each
Usually Ships: Same Day
Select the desired V-port vertex angle (30°, 60°, or 90°) from the Accessories tab.
Valworx 586802 explosion proof V-port stainless steel ball valves are designed for applications requiring precise flow control in potentially hazardous environments. Suitable for use with water, air, oil, and other media compatible with the materials of construction. Unique three piece investment cast bolted body design offers the advantage of a swing out body for easy inline maintenance . The EPS- Electronic Positioning System provides an accurate valve positioning function whereby the movement of the actuator is controlled by a 4-20mA input control signal. Any change in the control input signal results in a corresponding and proportional change in the position of the ball. The internal microprocessor and closed loop feedback system continuously monitors and maintains accurate valve position. The valve will remain in the last known position with loss of electric power.
The valve is direct mounted to the actuator using the international standard ISO5211 mounting pad. Valworx does not recommend the use of high temperature brackets with explosion proof actuators. Rugged unique integral motor/housing design provides higher torque in a very small package. Actuators certified for UL Class I Div I Groups C & D, and are tested to rigorous UL and CSA standards and certified by CSA.
Ball Valve Standard Features1000 PSI working pressure (see P/T chart) Three piece swing out design for easy maintenance Direct mounting valve per ISO5211 V-port valves available in 30, 60 & 90° vertex angles 316 stainless steel body, ball and stem Blow out proof stem RTFE ball seats extend cycle life Triple PTFE/Viton stem seal design, live loaded
Electric Actuator Standard FeaturesExplosion proof rated for UL Class I Div I Groups C & D, Ex db IIC T5 Gb Class 1 Zone 1, AEx db IIC T5 Gbs Rugged Type 4X weatherproof aluminum alloy enclosure Visual valve position indicator Manual override Heavy duty motor with overload protection Self-locking all metal gear drive, no additional brake required CSA Listed per UL429 and CSA C22.2, CE mark as well as ExP ratings listed above
Options (see Accessories tab)
Valworx 586802 explosion proof V-port stainless steel ball valves are designed for applications requiring precise flow control in potentially hazardous environments. Suitable for use with water, air, oil, and other media compatible with the materials of construction. Unique three piece investment cast bolted body design offers the advantage of a swing out body for easy inline maintenance . The EPS- Electronic Positioning System provides an accurate valve positioning function whereby the movement of the actuator is controlled by a 4-20mA input control signal. Any change in the control input signal results in a corresponding and proportional change in the position of the ball. The internal microprocessor and closed loop feedback system continuously monitors and maintains accurate valve position. The valve will remain in the last known position with loss of electric power.
The valve is direct mounted to the actuator using the international standard ISO5211 mounting pad. Valworx does not recommend the use of high temperature brackets with explosion proof actuators. Rugged unique integral motor/housing design provides higher torque in a very small package. Actuators certified for UL Class I Div I Groups C & D, and are tested to rigorous UL and CSA standards and certified by CSA.
Ball Valve Standard Features
Electric Actuator Standard Features
Options (see Accessories tab)
| Type | Explosion Proof Electric Actuated V-Port Ball Valve- Positioner |
|---|---|
| Actuator Voltage | 110 VAC 50/60Hz |
| Current Rating | 0.27A (full load amps) |
| Cycle Time | 20 seconds per 90° rotation |
| Duty Cycle | 70% |
| Pipe Size (in)-Specs | 1/4" NPT female |
| Cv V-Port | 2.0/4.5/5.7 |
| Pressure Rating | 1000 PSI |
| Valve Temperature Range | -4 to 392°F (-20 to 200°C) |
| Actuator Temperature Range | -13 to 131°F (-25 to 55°C) |
| Valve Body/Ball | 316 SS |
| Body/Ball Material | 316 Stainless Steel |
| Ball Seat Material | RTFE (reinforced Teflon) |
| Stem Seal Material | PTFE/ Viton (live loaded and adjustable) |
| Disc Seat/Liner | EPDM |
| Enclosure | Aluminum alloy, polyester painted, SS fasteners |
| Enclosure Protection | IP67, NEMA 4, 4X weatherproof |
| Electrical Connections | Two 1/2" NPT threaded ports. Requires Exp rated connector or pipe (not included) |
| Input Control Signal | 4-20mA |
| Output signal | 4-20mA output monitoring signal (same type as input signal) |
| Valve Position Indicator | Dial Indicator |
| Manual Override | 5mm hex drive with protective cover |
| Motor Protection | Thermal overload |
| Explosion Proof Approval | UL Class I Div I Groups C & D, Ex db IIC T5 Gb Class 1 Zone 1, AEx db IIC T5 Gb |
| V-Port Orifice Size (inches) | 0.45 |
| Max Fluid Velocity | 10 feet per second |
