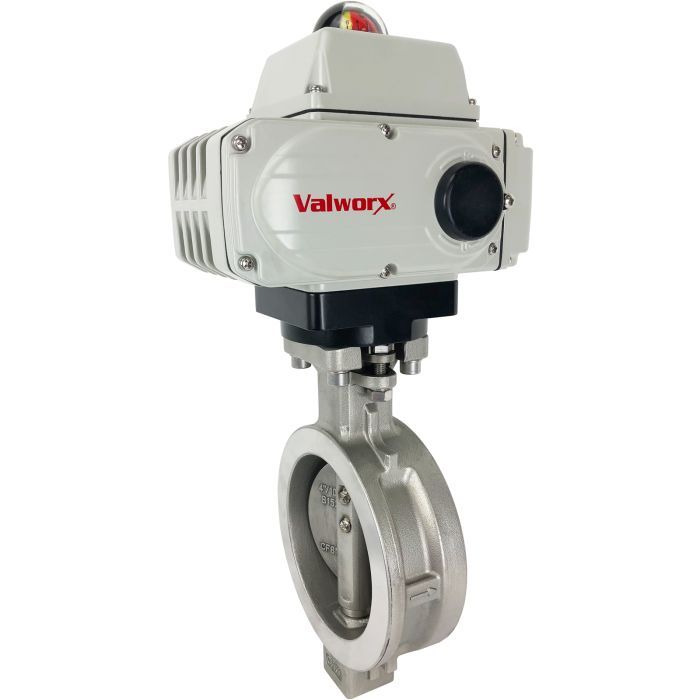

4" High Performance Butterfly Valve, Wafer, RPTFE, 24 VDC

Valworx 569304A high performance stainless steel butterfly valve for on-off control of air, oil and other media compatible with the materials of construction. Wafer style valve sandwich mounts between customer supplied ANSI /ASME Class 150 and other international standard flanges and gaskets. Standard unit is power-to-open and power to close, stays in last known position with loss of power. On receipt of a continuous voltage signal, the motor runs and via an all metal self-locking gear drive rotates the disc one quarter turn. The motor is automatically stopped by internal cams striking limit switches at both open and closed positions. On receipt of a reversing continuous signal, the motor turns in the opposite direction reversing the valve position.

The valve is direct mounted to the actuator using the international standard ISO5211 mounting pad. Actuator has a rugged unique integral motor/housing design which provides higher torque in a very small package.

Actuators are tested to rigorous UL and CSA standards and certified by CSA. Anti-condensation heater is standard and will help protect actuator against damage caused by condensation.

High Performance Butterfly Valve Standard Features

316 stainless steel (CF8M) body

Double offset design greatly reduces seal wear.

17-4PH stainless steel, single piece shaft

RPTFE valve seats and stem seals

Heavy duty, single piece cast and machined disc with integral mounting sleeve

Bi-directional seal design ensures increased sealing force in either flow direction

Integral ISO 5211 mounting pad eliminates additional mounting brackets

Electric Actuator Standard Features

Quarter turn operation with mechanical limits

Rugged Type 4X weatherproof aluminum alloy housing

Visual valve position indicator

Manual override

Heavy duty motor with overload protection

Thermostatically controlled anti-condensation heater

Two auxiliary limit switches to confirm valve position

Self-locking all metal gear drive, no additional brake required

CSA Listed per UL429 and CSA C22.2, CE mark
