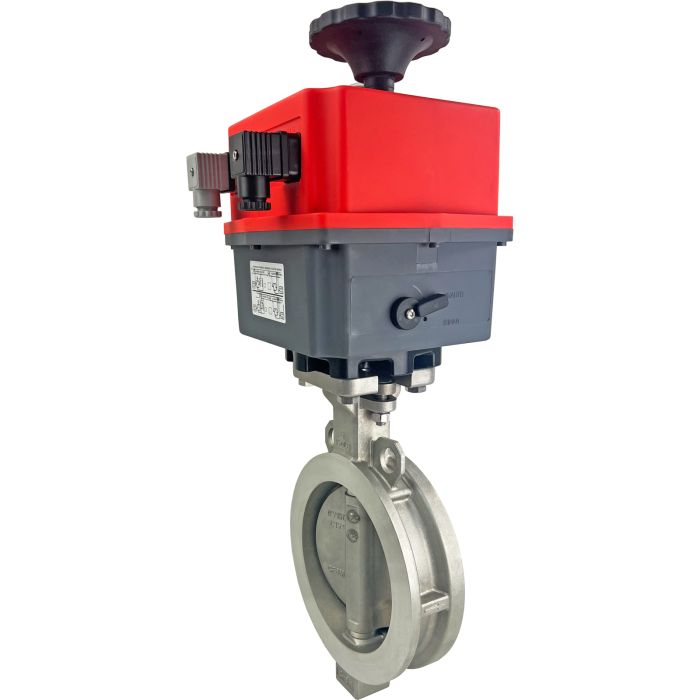

6" High Performance Butterfly Valve, Wafer, RPTFE, 24- 240V
SKU
569906A
Series
5699
List Price: $2,911.07
Price:
$2,328.86
- Buy 3 for $2,095.97 each and save 10%
Valworx 569906A high performance stainless steel butterfly valve for on-off control of air, oil and other media compatible with the materials of construction. Wafer style valve sandwich mounts between standard ANSI / ASME Class 125 / 150 flanges. Standard unit is power-to-open and power to close, stays in last known position with loss of power. On receipt of a continuous voltage signal, the motor runs and via a flat gear system rotates the disc. The motor is automatically stopped by internal cams striking micro switches at both open and closed positions. On receipt of a reversing continuous signal, the motor turns in the opposite direction reversing the valve position.
High Performance Butterfly Valve Standard FeaturesHigh quality, passivated 316 stainless steel (CF8M) body for excellent corrosion resistance Double offset design greatly reduces seal wear 17-4PH stainless steel, single piece shaft RPTFE valve seats and stem seals Heavy duty, single piece cast and machined disc with integral mounting sleeve Bi-directional seal design ensures increased sealing force in either flow direction Integral ISO 5211 mounting pad eliminates additional mounting brackets
Electric Actuator Standard FeaturesHighly visible LED light gives continuous actuator status indication Multi-voltage capable with auto-voltage sensing Electronic torque limiter - protects against valve jams without causing damage to the actuator Standard anti-condensation heater Manual override with visual dome style valve position indicator All electrical connections via external DIN plugs (included) - no need to remove cover for wiring or service Two auxiliary dry contact limit switches for confirming open/closed valve position Rugged IP67 dust and watertight enclosure, CE marked
Options (see Accessories tab)
High Performance Butterfly Valve Standard Features
Electric Actuator Standard Features
Options (see Accessories tab)
Digital Positioner System
-
5616C DPS-Digital Positioner System Kit 4-20mA - InstalledStock #: 561108CUsually Ships: Same DayPrice: $655.59 -
5616C DPS-Digital Positioner System Kit 0-10v - InstalledStock #: 561109CUsually Ships: Same DayPrice: $655.59
Failsafe Battery Kit
-
5616C BSR-NC Failsafe Battery Kit - InstalledStock #: 561106CUsually Ships: Same DayPrice: $655.60 -
5616C BSR-NO Failsafe Battery Kit - InstalledStock #: 561107CUsually Ships: Same DayPrice: $655.59
Connectors & Cables
-
Electric Actuator 3097 in.lbs (300Nm), 24-240VStock #: 561604CUsually Ships: 2- 3 WeeksPrice: $1,482.12 -
