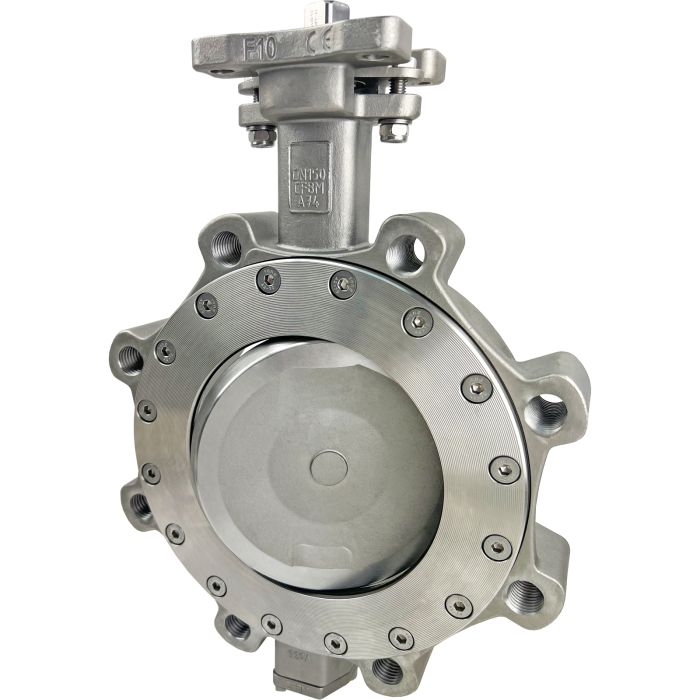

6" High Performance Butterfly Valve Lug

SKU

547006A

Series

5470

List Price: $2,364.59

Price: $1,891.67

Buy 3 for $1,702.50 each and save 10%

Description

Valworx 547006A high performance stainless steel butterfly valve for on-off control of air, oil and other media compatible with the materials of construction. Lug style valve sandwich mounts between customer supplied ANSI /ASME Class 150 and other international standard flanges and gaskets. High quality, passivated 316 stainless steel (CF8M) body for excellent corrosion resistance. Bi-directional seal design ensures increased sealing force in either flow direction. Reinforced Teflon (RPTFE) disc seat for expanded temperature range. Bolted faceplate ensures proper seal alignment and facilitates maintenance. Belleville washers for consistent, self-adjusting stem seal pressure. Double offset design greatly reduces seal wear. Integral ISO5211 top mounting allows for easy air actuator, electric actuator or manual handle installation without external brackets. This valve is a bare stem direct mount design. Suitable for end of line applications. Full vacuum rating.

Specifications

More Information
Actuator Mount	ISO5211, F10, 17mm square stem
Actuator Seals	NBR
Air Connections	1/4" NPT (plus NAMUR pad for solenoid valve)
Air Pilot Pressure	80-120 PSI
Cycle Time	Approx. 1 second per 90° rotation
Disc	Single piece, machined 316 stainless steel
Disc Seat/Liner	RPTFE
Flow Capacity	Cv 1350 (Cv = number of GPM of 60 °F water at 1 psi pressure drop)
Pipe Size	6 inch lug design
Pressure Rating	285 PSI (19 Bar), Full Vacuum
Stem	17-4PH
Stem Packing	RPTFE
Suitable Flanges	ANSI /ASME B16.5 Class150, MSSSP44 Class 150
Temperature Range	-40 to 450 °F (-40 to 230 °C)
Type	High Performance Butterfly Valve
Valve Body	316 Stainless Steel
