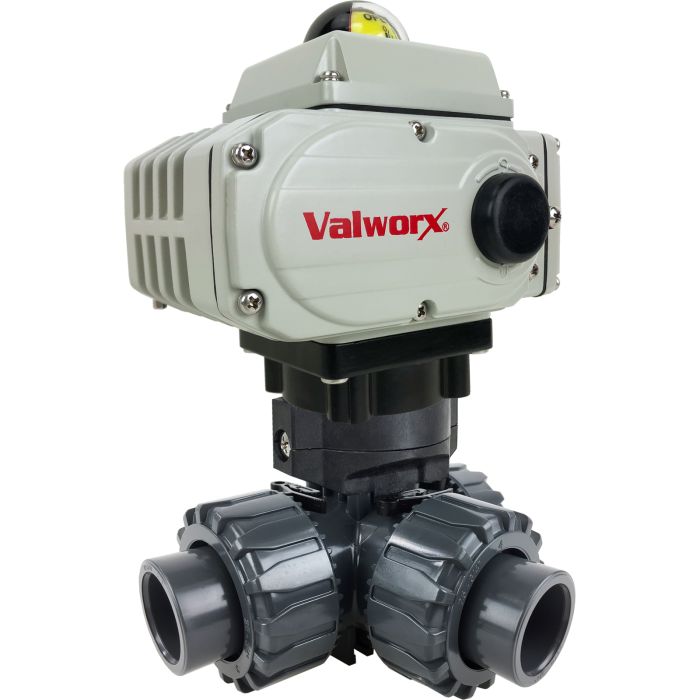

3/4" Electric 3-way PVC T-port Ball Valve PTFE/EPDM, 24 VDC, EPS Positioner
SKU
555806
Series
5558
List Price: $1,610.49
Price:
$1,288.39
- Buy 3 for $1,159.55 each and save 10%
Valworx 555806 electric actuated 3-way T-port PVC ball valves are typically used as a diverter, selector, or mixing valve to control the flow of water and other liquid media compatible with the materials of construction (not suitable for air or gas). Ideal for applications where NSF certified construction is required for potable drinking water as well as other industrial applications.
The EPS- Electronic Positioning System provides an accurate valve positioning function whereby the movement of the actuator is controlled by a 4-20mA input control signal. Any change in the control input signal results in a corresponding and proportional change in the position of the ball. The internal microprocessor and closed loop feedback system continuously monitors and maintains accurate valve position. The valve will remain in the last known position with loss of electric power. There is no flow shutoff position with this type valve. Actuators are tested to rigorous UL and CSA standards and certified by CSA. Anti-condensation heater is standard and will help protect actuator against damage caused by condensation. Two auxiliary limit switches are provided to confirm valve position. Typical applications include industrial/process piping, pulp and paper, food processing, water treatment and irrigation.
Modbus control is available as a factory-installed option. Click on the Accessories tab for details.
Ball Valve Standard FeaturesIndustrial grade full port PVC ball valve Tru Union nuts with locking device prevents back-off Energized PTFE ball seats for lower torque and extended life Four ball seat design allows for full pressure at any port Leak free dual stem seal design Micro-adjustable ball seat carrier Pressure rated 232 PSI at 73°F Series 5514 NSF/ANSI/CAN 60 and NSF/ANSI 372 certified valve for use with potable drinking water Includes IPS glue sockets and NPT end connectors
Electric Actuator Standard FeaturesQuarter turn operation with mechanical limits Rugged Type 4X weatherproof aluminum alloy housing Visual valve position indicator Manual override Heavy duty motor with overload protection Thermostatically controlled anti-condensation heater Self-locking all metal gear drive, no additional brake required CSA Listed per UL429 and CSA C22.2, CE mark
The EPS- Electronic Positioning System provides an accurate valve positioning function whereby the movement of the actuator is controlled by a 4-20mA input control signal. Any change in the control input signal results in a corresponding and proportional change in the position of the ball. The internal microprocessor and closed loop feedback system continuously monitors and maintains accurate valve position. The valve will remain in the last known position with loss of electric power. There is no flow shutoff position with this type valve. Actuators are tested to rigorous UL and CSA standards and certified by CSA. Anti-condensation heater is standard and will help protect actuator against damage caused by condensation. Two auxiliary limit switches are provided to confirm valve position. Typical applications include industrial/process piping, pulp and paper, food processing, water treatment and irrigation.
Modbus control is available as a factory-installed option. Click on the Accessories tab for details.
Ball Valve Standard Features
Electric Actuator Standard Features
| Actuator Temperature Range | -13 to +131 °F (-25 to +55 °C) |
|---|---|
| Anti-Condensation Heater | 4 watts thermostatically controlled |
| Ball and Stem | PVC |
| Ball Seats | PTFE (Teflon) energized with EPDM seals |
| Current Rating | 1.00A (full load amps) |
| Cycle Time | 20 seconds per 90° rotation (no load) |
| Duty Cycle | 70% |
| Electrical Connections | Terminal strip, 1/2" NPT conduit (optional) / cable connector (included) |
| Enclosure | Aluminum alloy, polyester coating, SS fasteners |
| Enclosure Rating | Type 4X (IP67) weatherproof |
| Input Control Signal | 4-20mA |
| Manual Override | 5mm hex drive with protective cover |
| Motor Protection | Thermal overload |
| Pipe Size | 1/4" (both IPS glue socket and NPT end connectors included) |
| Port Size | Full Port, Cv 10 |
| Pressure Rating | 232 PSI (16 Bar) see P/T chart, Vacuum 29"Hg Not suitable for air or gas |
| Stem Seals | Dual EPDM seals |
| Type | Electric Actuated PVC 3 Way Valve- Positioner |
| Valve Body | PVC |
| Valve Position Confirmation | 4-20mA output monitoring signal (same type as input signal) |
| Valve Temperature Range | 32-140 °F (0 to 60 °C) |
| Voltage | 24 VDC |
Modbus Control System
Connectors & Cables
-
Conduit Adapter 1/2" NPT for 5618 Series Electric ActuatorsStock #: 561890Usually Ships: Same DayPrice: $21.40 -
7-Conductor Cable for 5618 Series Electric Actuators- 8ftStock #: 588008AUsually Ships: Same DayPrice: $28.37 -
7-Conductor Cable for 5618 Series Electric Actuators- 16ftStock #: 588009AUsually Ships: Same DayPrice: $53.50 -
7-Conductor Cable for 5618 Series Electric Actuators- 32ftStock #: 588010AUsually Ships: Same DayPrice: $103.75
-
3/4" 3-Way T-port PVC Ball Valve - EPDM/Teflon SealsStock #: 551431Usually Ships: Same DayPrice: $150.79 -
Electric Actuator 442 in.lbs (50 Nm), 24 VDC, EPS PositionerStock #: 561857CUsually Ships: Same DayPrice: $1,164.16 -
-
-
-
Single Block Mechanism- 1/2 to 3/4 5514 SeriesStock #: R5514XX09Usually Ships: Same DayPrice: $20.88
