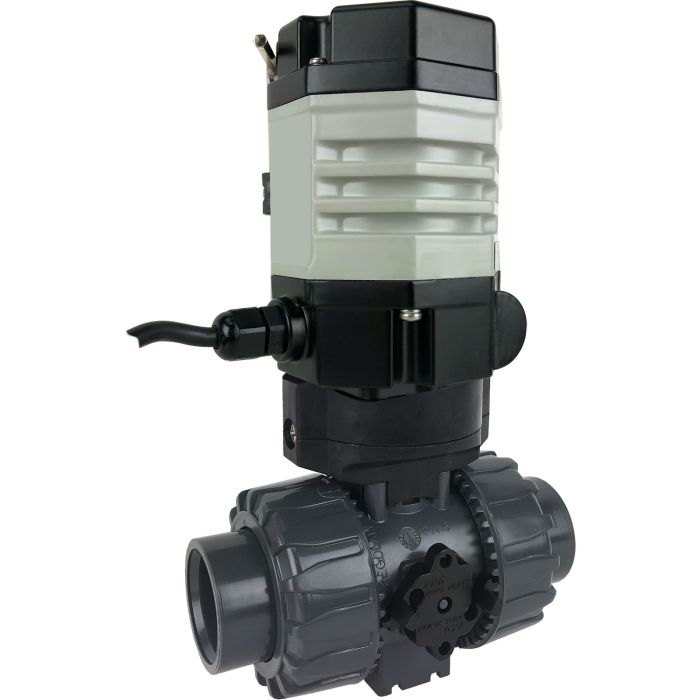

1" Compact Electric Actuated PVC Ball Valve PTFE/EPDM, 24 VDC EPS Positioner
SKU
566269
Series
5662
List Price: $992.86
Price:
$794.29
- Buy 3 for $714.86 each and save 10%
Valworx 566269 compact electric actuated PVC ball valves are typically used to control the flow of water and liquid media compatible with the materials of construction (not suitable for air or gas). Ideal where NSF certified construction is required for potable drinking water as well as other industrial applications.
The EPS- Electronic Positioner System provides an accurate valve positioning function whereby the movement of the actuator is controlled by a 4-20mA input control signal. Any change in the input signal results in a corresponding and proportional change in the position of the ball. The internal microprocessor and closed loop feedback system continuously monitors and maintains accurate valve position. Valve can be set to fail closed, in-place or open with loss of control signal (4-20mA input). The valve will remain in the last known position with loss of electric power. Valve position can be monitored with onboard analog output signal.
Rugged unique integral motor/housing design provides higher torque in a very small package. Typical applications include industrial/process piping, pulp and paper, food processing, water treatment and irrigation.
Ball Valve Standard FeaturesIndustrial grade full port PVC ball valve Tru Union with bi-directional flow Union nut locking device prevents back-off Energized PTFE ball seats for lower torque and extended life Leak free dual stem seal design Micro-adjustable ball seat carrier Pressure rated 232 PSI at 73°F Series 5510 NSF/ANSI/CAN 60 and NSF/ANSI 372 certified valve for potable drinking water Includes IPS glue sockets and NPT end connectors
Electric Actuator Standard FeaturesEPS-Electronic Positioner System with 4-20mA input Quarter turn operation Rugged Type 4X weatherproof aluminum alloy housing Visual valve position indicator Manual override Heavy duty motor with overload protection Analog output signal to confirm valve position All metal gear drive CSA Listed per UL429 and CSA C22.2, CE mark
The EPS- Electronic Positioner System provides an accurate valve positioning function whereby the movement of the actuator is controlled by a 4-20mA input control signal. Any change in the input signal results in a corresponding and proportional change in the position of the ball. The internal microprocessor and closed loop feedback system continuously monitors and maintains accurate valve position. Valve can be set to fail closed, in-place or open with loss of control signal (4-20mA input). The valve will remain in the last known position with loss of electric power. Valve position can be monitored with onboard analog output signal.
Rugged unique integral motor/housing design provides higher torque in a very small package. Typical applications include industrial/process piping, pulp and paper, food processing, water treatment and irrigation.
Ball Valve Standard Features
Electric Actuator Standard Features
| Actuator Temperature Range | -13 to +131 °F (-25 to 55 °C) |
|---|---|
| Ball and Stem | PVC |
| Ball Seats | PTFE (Teflon) energized with EPDM seals |
| Current Rating | 0.7A (full load amps) |
| Cycle Time | 15 seconds per 90° rotation (no load) |
| Duty Cycle | 60% |
| Electrical Connections | Prewired cable with flying leads 3 meter (9.8 feet) |
| Enclosure | Aluminum alloy, polyester coating, SS fasteners |
| Enclosure Rating | Type 4X and IP67 weatherproof |
| Manual Override | 5mm hex drive with protective cover |
| Motor Protection | Thermal overload |
| Pipe Size | 1 inch (both IPS glue socket and NPT end connectors included) |
| Port Size | Full Port, Cv 54 |
| Pressure Rating | 232 PSI (16 Bar) see P/T chart, Vacuum 29"Hg Not suitable for air or gas |
| Stem Seals | Dual EPDM seals |
| Type | Electric Actuated PVC Ball Valve- Positioner |
| Valve Body | PVC |
| Valve Position Confirmation | 2 x SPDT auxiliary limit switches rated 3A@125/250VAC,30VDC resistive load |
| Valve Temperature Range | 32-140 °F (0 to 60 °C) |
| Voltage | 24 VDC |
