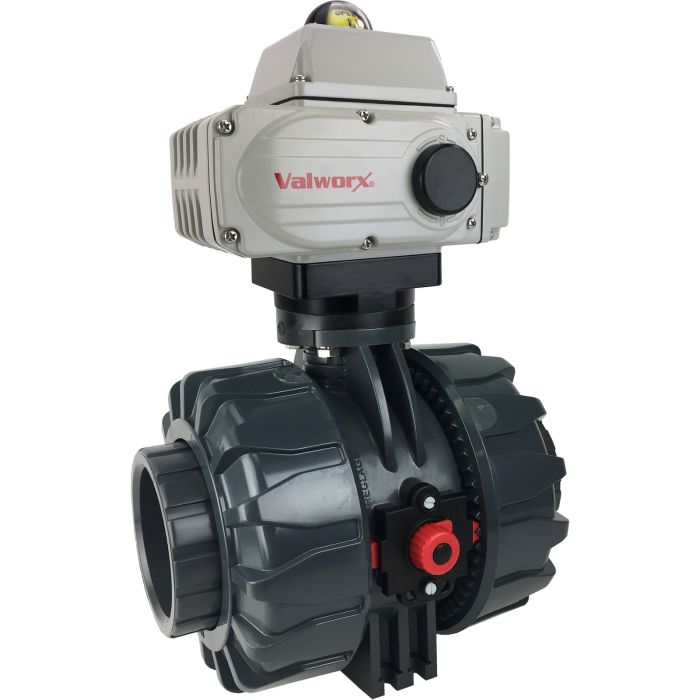

3" Electric Actuated PVC Ball Valve 24 VDC, EPS Positioner
SKU
565474E
Series
5654
List Price: $2,059.46
Price:
$1,647.57
- Buy 3 for $1,482.81 each and save 10%
Valworx 565474E electric actuated PVC ball valves are typically used to control the flow of water and liquid media compatible with the materials of construction (not suitable for air or gas). Ideal where NSF certified construction is required for potable drinking water as well as other industrial applications.
The EPS- Electronic Positioner System provides an accurate valve positioning function whereby the movement of the actuator is controlled by a 4-20mA input control signal. Any change in the input signal results in a corresponding and proportional change in the position of the ball. The internal microprocessor and closed loop feedback system continuously monitors and maintains accurate valve position. Valve can be set to fail closed, in-place or open with loss of control signal (4-20mA input). The valve will remain in the last known position with loss of electric power. The positioning module is self-calibrating and fully potted to help protect the electronics against vibration and moisture. Valve position can be monitored with onboard analog output signal.
Rugged unique integral motor/housing design provides higher torque in a very small package. Actuators are tested to rigorous UL and CSA standards and certified by CSA. Anti-condensation heater is standard and will help protect actuator against damage caused by condensation. Typical applications include industrial/process piping, pulp and paper, food processing, water treatment and irrigation.
Modbus control is available as a factory-installed option. Click on the Accessories tab for details.
Ball Valve Standard FeaturesIndustrial grade full port PVC ball valve Tru Union with bi-directional flow Union nut locking device prevents back-off Energized PTFE ball seats for lower torque and extended life Leak free dual stem seal design Micro-adjustable ball seat carrier Pressure rated 232 PSI at 73°F Series 5510 NSF/ANSI/CAN 60 and NSF/ANSI 372 certified valve for potable drinking water
Electric Actuator Standard Features EPS-Electronic Positioner System with 4-20mA input Quarter turn operation with mechanical limits Rugged Type 4X weatherproof aluminum alloy housing Visual valve position indicator Manual override Heavy duty motor with overload protection Thermostatically controlled anti-condensation heater Analog output signal to confirm valve position Self-locking all metal gear drive, no additional brake required CSA Listed per UL429 and CSA C22.2, CE marked
The EPS- Electronic Positioner System provides an accurate valve positioning function whereby the movement of the actuator is controlled by a 4-20mA input control signal. Any change in the input signal results in a corresponding and proportional change in the position of the ball. The internal microprocessor and closed loop feedback system continuously monitors and maintains accurate valve position. Valve can be set to fail closed, in-place or open with loss of control signal (4-20mA input). The valve will remain in the last known position with loss of electric power. The positioning module is self-calibrating and fully potted to help protect the electronics against vibration and moisture. Valve position can be monitored with onboard analog output signal.
Rugged unique integral motor/housing design provides higher torque in a very small package. Actuators are tested to rigorous UL and CSA standards and certified by CSA. Anti-condensation heater is standard and will help protect actuator against damage caused by condensation. Typical applications include industrial/process piping, pulp and paper, food processing, water treatment and irrigation.
Modbus control is available as a factory-installed option. Click on the Accessories tab for details.
Ball Valve Standard Features
Electric Actuator Standard Features
| Actuator Temperature Range | -13 to +131 °F (-25 to +55 °C) |
|---|---|
| Anti-Condensation Heater | 4 watts thermostatically controlled |
| Ball and Stem | PVC |
| Ball Seats | PTFE (Teflon) energized with EPDM seals |
| Current Rating | 2.03A (full load amps) |
| Cycle Time | 30 seconds per 90° rotation (+/- 10% no load) |
| Duty Cycle | 70% |
| Electrical Connections | Terminal strip, 1/2" NPT conduit (optional) / cable connectors (included) |
| Enclosure | Aluminum alloy, polyester coating, SS fasteners |
| Enclosure Rating | Type 4X (IP67) weatherproof |
| Input Control Signal | 4-20mA |
| Manual Override | 6mm hex drive with protective cover |
| Motor Protection | Thermal overload |
| Pipe Size | 3 inch (IPS glue socket end connectors) |
| Port Size | Full Port, Cv 497 |
| Pressure Rating | 232 PSI (16 Bar) see P/T chart, Vacuum 29"Hg Not suitable for air or gas |
| Stem Seals | Dual EPDM seals |
| Type | Electric Actuated PVC Ball Valve- Positioner |
| Valve Body | PVC |
| Valve Position Confirmation | 4-20mA output monitoring signal (same type as input signal) |
| Valve Temperature Range | 32-140 °F (0 to 60 °C) |
| Voltage | 24 VDC |
