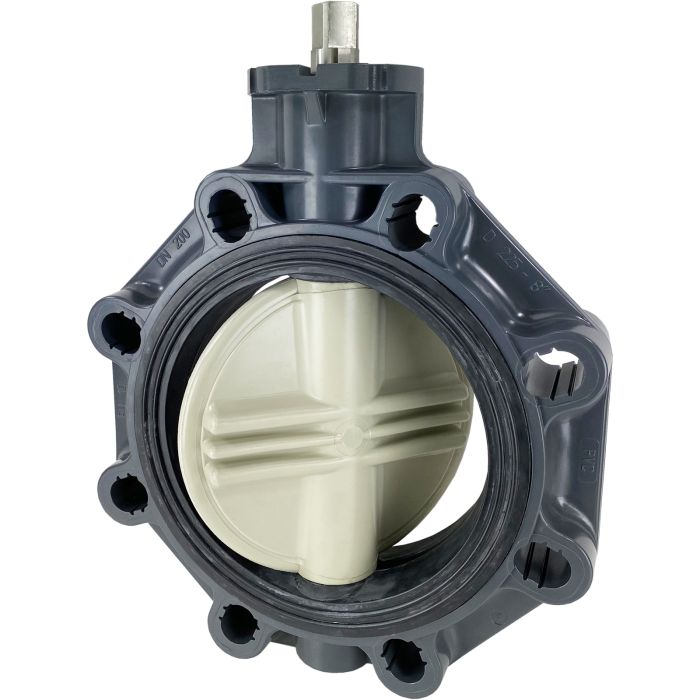

8" PVC Butterfly Valve - EPDM/Bare Stem
Stock #
540210
Series
5402
List Price: $1,496.45
Price: $1,197.16
- Buy 3 for $1,077.44 each
Usually Ships: Same Day
Valworx 540210 PVC butterfly valves are used for on-off control of water and other compatible media. Ideal for industrial apps and where NSF certified construction is required for potable/drinking water. Typical applications might include potable water, general services, industrial, process, corrosive environments, commercial plumbing, food processing and irrigation. For manual operation, combine with a hand lever or gear operator. For automation, combine with adapter plate. (See accessories tab for further details.).
PVC butterfly valves should never be used for compressed gas applications.
Industrial grade PVC butterfly valve Pressure rated 150 PSI at 73°F Polypropylene (PP) disc ANSI 150 wafer-style flange connection 316 stainless steel shaft EPDM primary liner Series 5402 NSF/ANSI/CAN 60 and NSF/ANSI 372 certified valve for potable drinking water
PVC butterfly valves should never be used for compressed gas applications.
| Type | PVC Butterfly Valve |
|---|---|
| Pipe Size (in)-Specs | 8" (DN200) |
| Disc Size (inches) | 7.87 |
| Suitable Flanges | ANSI B16.5 |
| Cv | 2135 |
| Pressure Rating | 150 PSI |
| Temperature Range | 32 to 140°F (0 to 60°C) |
| Valve Body-Specs | PVC |
| Disc | Polypropylene (PP) |
| Stem | 316 Stainless Steel |
| ISO 5211 Mount | F10, 22mm |
