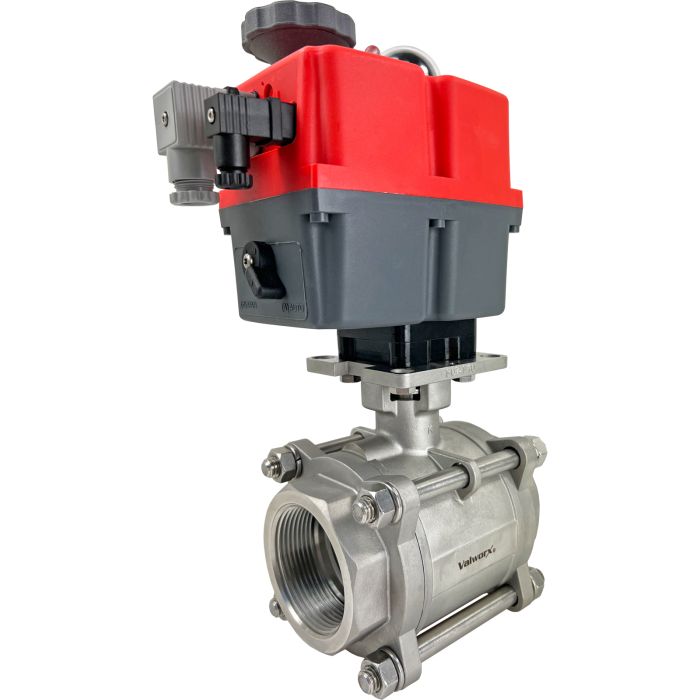

2-1/2" Electric Actuated 3 pc SS Ball Valve 24-240V
SKU
560420F
Series
5604
List Price: $2,062.64
Price:
$1,650.11
- Buy 3 for $1,485.10 each and save 10%
Valworx 560420F electric actuated 3-piece stainless steel ball valves for on-off control of water, air, oil, and other media compatible with the materials of construction. Unique three piece investment cast bolted body design offers the advantage of a swing out body for easy inline maintenance. Standard unit is power-to-open and power to close, stays in last known position with loss of power. On receipt of a continuous voltage signal, the motor runs and via a flat gear system rotates the ball valve. The motor is stopped by internal cams striking micro switches. On receipt of a reversing continuous signal, the motor turns in the opposite direction reversing the valve position. High temperature valve mounting kit available for extended temperature range or wall mounting applications.
Ball Valve Standard Features800 PSI working pressure Direct mounting valve per ISO5211 Full port for unrestricted flow 316 stainless steel body, ball and stem Blow out proof stem RTFE ball seats extend cycle life Triple PTFE/Viton stem seal design, live loaded
Electric Actuator Standard FeaturesHighly visible LED light gives continuous actuator status indication Multi-voltage capable with auto-voltage sensing Electronic torque limiter - protects against valve jams Anti-condensation heater Manual override with visual valve position indicator All electrical connections via external DIN plugs (included) - no need to remove cover Two dry contact limit switches used to confirm open/closed valve position Rugged IP67 weatherproof housing, CE marked
Options (see Accessories tab)
Ball Valve Standard Features
Electric Actuator Standard Features
Options (see Accessories tab)
| Actuator Temperature Range | -4 to 158 °F (-20 to 70 °C) |
|---|---|
| Anti-Condensation Heater | 4 watts thermostatically controlledlocity |
| Ball and Stem | 316 Stainless Steel |
| Ball Seats | RTFE (reinforced Teflon) |
| Current Rating | 0.8A @ 115V, 0.5A @ 240V, 3.3A @ 24VAC 2.7A @ 24VDC (full load amps) |
| Cycle Time | 29 seconds per 90° rotation (+/- 10% no load) |
| Duty Cycle | 75% |
| Electrical Connections | DIN plugs with cable entry (included), optional 1/2" conduit plugs |
| Enclosure | Anti-corrosive polyamide, SS fasteners |
| Enclosure Rating | IP67 weatherproof, UV protection |
| Manual Override | Hand knob |
| Max Fluid Velocity | 10 feet per second |
| Motor Protection | Electronic over-torque with LED status light |
| Pipe Size | 2-1/2" NPT female |
| Port Size | Full Port, Orifice 2.56 inches, Cv 289 |
| Pressure Rating | 800 PSI (see P/T chart), 25 PSI saturated steam with kit, vacuum service to 29" Hg |
| Stem Seals | PTFE/ Viton |
| Type | Electric Actuated 3 Piece Ball Valve- Multivoltage |
| Valve Body | 316 Stainless Steel |
| Valve Position Confirmation | 2 x SPST limit switches 3A @ 125/250VAC, 30VDC resistive load |
| Valve Temperature Range | -4 to 392 °F (-20 to 200 °C) |
| Voltage | 24 to 240 Volts AC/DC (1 ph,50/60Hz) auto-voltage sensing |
Digital Positioner System
-
5610E DPS-Digital Positioner System Kit 4-20mA - InstalledStock #: 561101EUsually Ships: Same DayPrice: $400.54 -
5610E DPS-Digital Positioner System Kit 0-10v - InstalledStock #: 561102EUsually Ships: Same DayPrice: $400.54
Failsafe Battery Kit
-
5610E BSR-NC Failsafe Battery Kit - InstalledStock #: 561104EUsually Ships: Same DayPrice: $422.76 -
5610E BSR-NO Failsafe Battery Kit - InstalledStock #: 561105EUsually Ships: Same DayPrice: $422.76
Connectors & Cables
-
-
-
Sub-Micro DIN Plug Connector with 16 foot CableStock #: 588007AUsually Ships: Same DayPrice: $28.32
-
2-1/2" 3-Piece Stainless Ball Valve - Direct MountStock #: 551520CUsually Ships: Same DayPrice: $683.07 -
Electric Actuator 752 in.lbs (85Nm), 24-240VStock #: 561085EUsually Ships: Same DayPrice: $909.14
