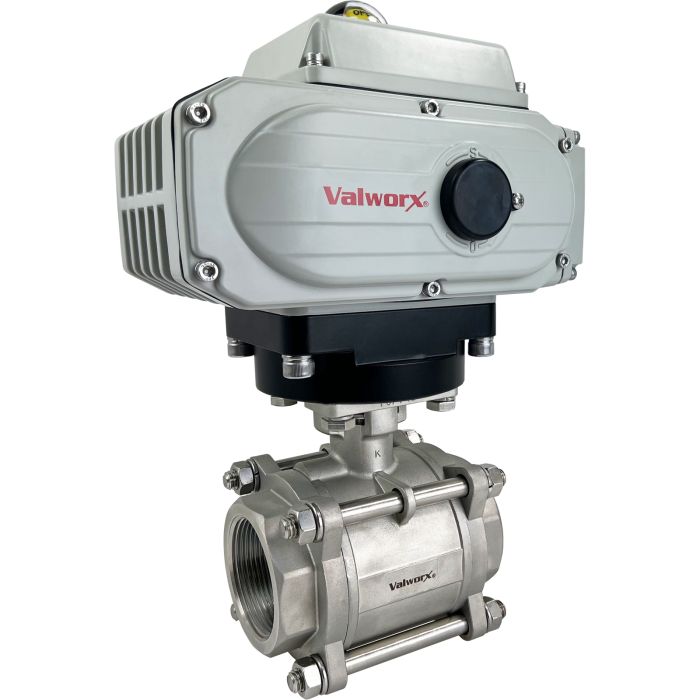

2-1/2" Electric Actuated 3 pc SS Ball Valve 24 VDC
SKU
565353C
Series
5653
List Price: $1,813.78
Price:
$1,451.02
- Buy 3 for $1,305.92 each and save 10%
Valworx 565353C electric actuated 3-piece stainless steel ball valve is used for on-off control of water, air, oil, and other media compatible with the materials of construction. The valve has a unique three piece investment cast bolted body design with the advantage of a swing out body for easy inline maintenance. Standard unit is power-to-open and power to close, stays in last known position with loss of power. On receipt of a continuous voltage signal, the motor runs and via a self-locking all metal gear drive rotates the ball. The motor is stopped by internal cams striking limit switches. On receipt of a reversing continuous signal, the motor turns in the opposite direction reversing the valve position.
The valve is direct mounted to the actuator using the international standard ISO5211 mounting pad. Rugged unique integral motor/housing design provides higher torque in a very small package. Actuators are tested to rigorous UL and CSA standards and certified by CSA. Anti-condensation heater is standard and will help protect actuator against damage caused by condensation.
High temperature valve mounting kit available for extended temperature range or wall mounting applications.
Ball Valve Standard Features800 PSI working pressure 3-piece swing out design for easy maintenance Direct mounting valve per ISO5211 Full port for unrestricted flow 316 stainless steel body, ball and stem Blow out proof stem RTFE ball seats extend cycle life Triple PTFE/Viton stem seal design, live loaded
Electric Actuator Standard FeaturesQuarter turn operation with mechanical limits Rugged Type 4X weatherproof aluminum alloy housing Visual valve position indicator Manual override Heavy duty motor with overload protection Thermostatically controlled anti-condensation heater Two auxiliary limit switches to confirm valve position Self-locking all metal gear drive, no additional brake required CSA Listed per UL429 and CSA C22.2, CE mark
Options (see Accessories tab)
The valve is direct mounted to the actuator using the international standard ISO5211 mounting pad. Rugged unique integral motor/housing design provides higher torque in a very small package. Actuators are tested to rigorous UL and CSA standards and certified by CSA. Anti-condensation heater is standard and will help protect actuator against damage caused by condensation.
High temperature valve mounting kit available for extended temperature range or wall mounting applications.
Ball Valve Standard Features
Electric Actuator Standard Features
Options (see Accessories tab)
| Actuator Temperature Range | -13 to 131 °F (-25 to +55 °C) |
|---|---|
| Anti-Condensation Heater | 4 watts thermostatically controlled |
| Ball | 317 stainless steel |
| Ball Seats | RTFE (reinforced Teflon) |
| Current Rating | 3.57A (full load amps) |
| Cycle Time | 30 seconds per 90° rotation (no load) |
| Duty Cycle | 70% |
| Electrical Connections | Terminal strip, 1/2" NPT conduit (optional) / cable connector (included) |
| Enclosure | Aluminum alloy, polyester painted, SS fasteners |
| Enclosure Rating | Type 4X (IP67) weatherproof |
| Manual Override | 6mm hex drive with protective cover |
| Max Fluid Velocity | 10 feet per second |
| Motor Protection | Current sensor |
| Pipe Size | 2-1/2" NPT female |
| Port Size | Full Port, Orifice 2.56 inches, Cv 289 |
| Pressure (Max) | 800 PSI, 25 PSI steam with kit, vacuum service to 29" Hg |
| Stem Seals | PTFE/ Viton |
| Type | Electric Actuated 3 Piece Ball Valve- On/Off Voltage |
| Valve Body | 316 Stainless Steel |
| Valve Position Confirmation | 2 x SPST auxiliary limit switches rated 3A@125/250VAC,30VDC resistive load |
| Valve Temperature Range | -4 to 392 °F (-20 to 200 °C) |
| Voltage | 24 VDC |
