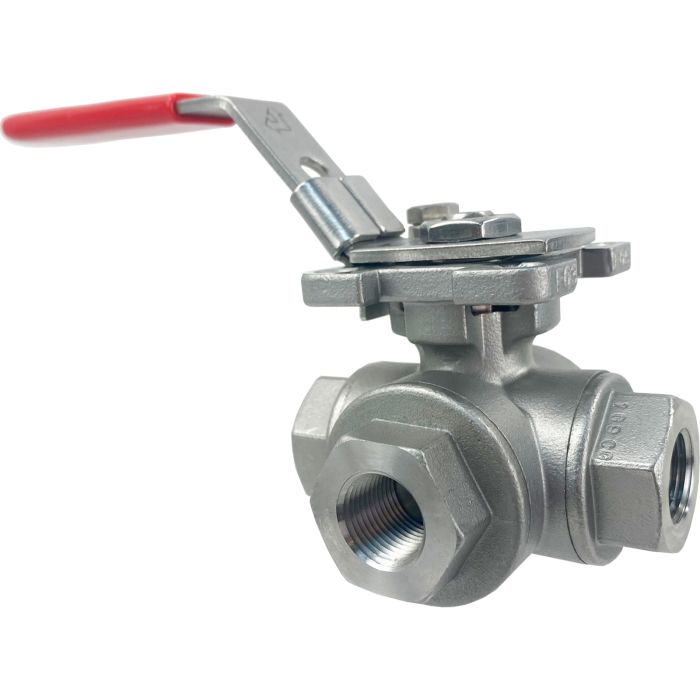

1/4" Stainless 3-Way Ball Valve, L-Port, Direct Mount

Valworx 552802C stainless steel full port three way ball valves are designed for use with water, air, oil, and other media compatible with the materials of construction. These L-port valves can be used as either a diverter valve or a selector valve. When using as a diverter valve, inlet flow to the center inlet port is diverted to either side outlet port one or side outlet port two. When using as a selector valve, there are two separate inlet ports (side ports) and one common outlet port (center port). Low operating torque with quarter turn latch-locking handle. Removing handle allows for easy mounting of electric or pneumatic actuators with the industry standard ISO5211 direct mounting pad. This insures precision shaft alignment and eliminates the need for additional brackets and couplings. Triple stem seal design is live-loaded and self-adjusting, compensating for wear, pressure, and temperature fluctuations. All valves are tested per API 598.

Full Port for Unrestricted Flow

316 Stainless Steel Body, Ball and Stem

Four Seats Design allows for Full Pressure at Any Port

RTFE Ball Seats Extend Cycle Life and Reduce Torque

Triple PTFE/Viton Stem Seal Design, Live Loaded

Latch Locking Handle (padlockable)

Actuator Ready ISO5211 Direct Mounting Pad
