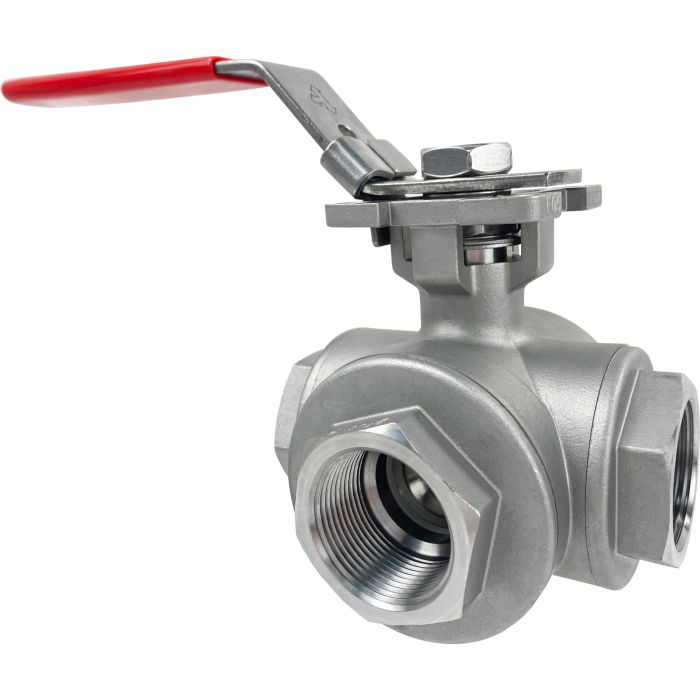

1-1/2" Stainless 3-Way Ball Valve, T-Port, Direct Mount

SKU

552912C

Series

5529

List Price: $712.27

Price: $569.82

Buy 3 for $512.83 each and save 10%

Description

Valworx 552912C stainless steel full port three way ball valves are designed for use with water, air, oil, and other media compatible with the materials of construction. Valves can be set-up in any one of four different flow patterns (T1-T4) in the field by simply moving the valve stem and handle (factory setup T2 flow pattern). These valves require low operating torque and feature a quarter turn latch-locking handle. Removing handle allows for easy mounting of electric or pneumatic actuators with the industry standard ISO5211 direct mounting pad. This insures precision shaft alignment and eliminates the need for additional brackets and couplings. Triple stem seal design is live-loaded and self-adjusting, compensating for wear, pressure, and temperature fluctuations. All valves are tested per API 598.

Full Port for Unrestricted Flow

316 Stainless Steel Body, Ball and Stem

Four Seats Design allows for Full Pressure at Any Port

RTFE ball seats Extend Cycle Life and Reduce Torque

Triple PTFE/Viton Stem Seal Design, Live Loaded

Latch Locking Handle (padlockable)

Actuator Ready ISO5211 Direct Mounting Pad

Specifications

More Information
Ball Seats	Four RTFE (reinforced Teflon)
Body/Ball	316 stainless steel (ASTM A351 CF8M)
Handle	304 stainless steel with vinyl grip
ISO 5211 Mount	F05/F07, 14mm square stem
Max Fluid Velocity	10 feet per second
Pipe Size	1-1/2" NPT female
Port Size	Full port, 1.50 inch orifice, Cv 52.1
Pressure (Max)	1000 PSI (see P/T chart), 125 PSI saturated steam, vacuum up to 29inHg
Stem Seals	PTFE/ Viton (live loaded and adjustable)
Stem	316 Stainless Steel
Temperature Range	-4 to 392 °F (-20 to 200 °C)
Type	Manual 3 Way Diverter Valve
