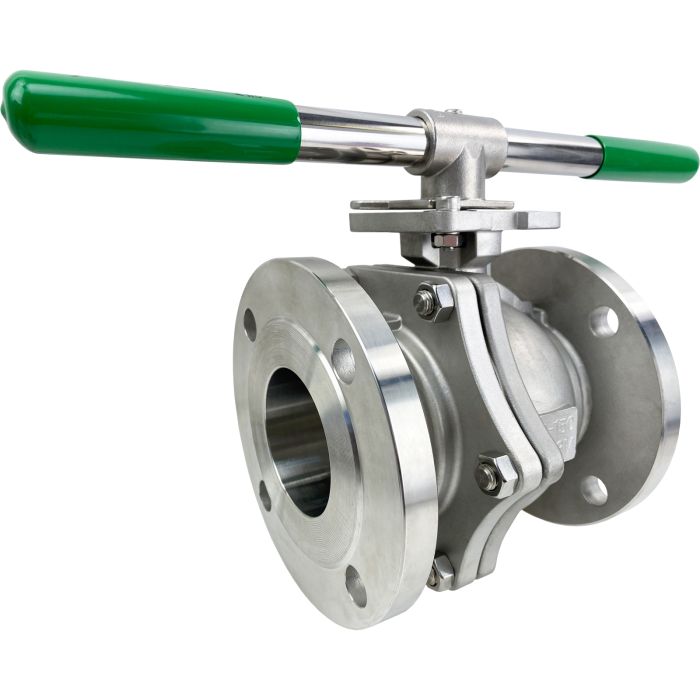

3" Stainless ANSI 150# Flanged Ball Valve - ISO Direct Mount

Stock #

553024A

Series

5530

List Price: $1,825.20

Price: $1,460.16

Buy 3 for $1,314.14 each

Usually Ships: 4- 6 Weeks

Description

Valworx 553024A low emission stainless steel 2-piece full port ANSI 150# flanged ball valves are designed for oil and gas as well as general chemical and industrial applications. Dual-certified low-emission (API 641) and fire-safe (API 607). These investment cast valves offer low operating torque with quarter turn latch-locking handle. Removing handle allows for easy mounting of electric or pneumatic actuators with the industry standard ISO5211 direct mounting pad. This insures precision shaft alignment and eliminates the need for additional brackets and couplings. Triple stem seal design is live-loaded and self-adjusting, compensating for wear, pressure, and temperature fluctuations. All valves are tested per API 598.

Not suitable for potable water or high purity applications.

Full Port for Unrestricted Flow

316 Stainless Steel Body, Ball and Stem

Blow Out Proof Stem

RTFE Ball Seats Extend Cycle Life and Reduce Torque

Braided Graphite Stem Seals, Live Loaded

Latch Locking Handle (Padlockable)

Actuator Ready ISO5211 Direct Mounting Pad

Anti-Static Design

Fire Safe Design (API 607)

Pipeline Design (API 608)

Low Emission Stem Packing (API 622)

Low Emission Design (API 641)

Specifications

More Information
Type	Manual Flange Valve
Pipe Size (in)-Specs	3" ANSI Class 150# Flanged (RF)
Full Port Orifice Size (inches)	3.20
Cv	580
Pressure Rating	275 PSI (see P/T chart ), 75 PSI saturated steam, vacuum up to 29.91 InHg (3.7 x 10-1 Torr)
Valve Temperature Range	-4 to 392°F (-20 to 200°C)
Valve Body/Ball	316 SS
Body/Ball Material	316 Stainless Steel
Stem	316 Stainless Steel
Ball Seat Material	RTFE (reinforced Teflon)
Stem Seal Material	Braided Graphite/ FKM (Viton)
ISO 5211 Mount	F07/F10, 17mm
Handle	304 Stainless Steel with vinyl grip
Low Emission Approval	API 641
Fire Safe Approval	API 607
Pipeline Use Approval	API 608
Stem Packing Approval	API 622
Flange Dimensions	ANSI B16.5 Class 150
Flange Face to Face	ANSI B16.10 Class 150
Max Fluid Velocity	10 feet per second
