3" V-Port Stainless Steel Ball Valve 24-240V

Select the desired V-port vertex angle (30°, 60°, or 90°) from the Accessories tab.

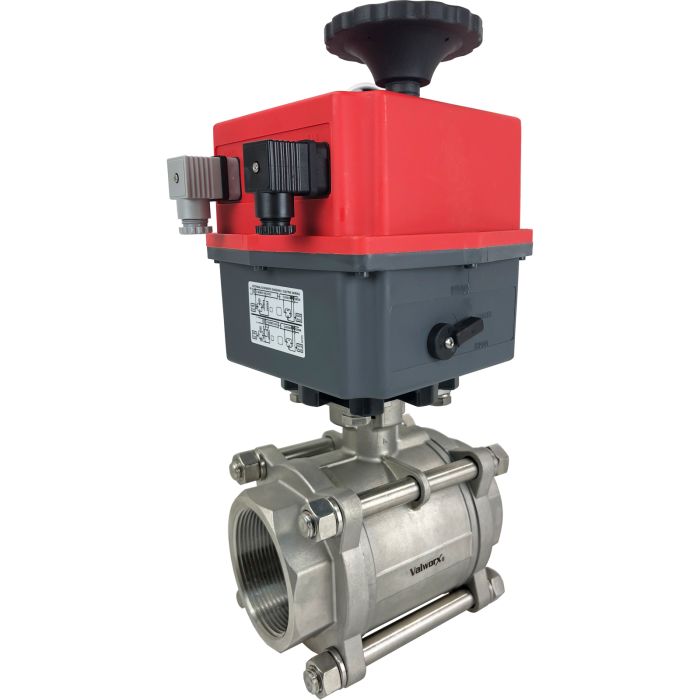

Valworx 550524 electric actuated stainless steel v-port valves are designed for applications requiring precise control. Factory-installed digital positioning kit for modulating control using a 4-20mA signal. Suitable for use with water, air, oil, and other media compatible with the materials of construction. Unique three piece investment cast bolted body design offers the advantage of a swing out body for easy inline maintenance. Standard unit is power-to-open and power to close, stays in last known position with loss of power. On receipt of a continuous voltage signal, the motor runs and via a flat gear system rotates the ball valve. The motor is stopped by internal cams striking micro switches. On receipt of a reversing continuous signal, the motor turns in the opposite direction reversing the valve position. High temperature valve mounting kit available for extended temperature range or wall mounting applications.

4- 20mA, normally closed (NC) control signal is standard. For 4- 20mA normally open (NO) or 0- 10V NC or NC please note in the Comments section on the Checkout page.

Ball Valve Standard Features

800 PSI working pressure

Direct mounting valve per ISO5211

Full port for unrestricted flow

316 stainless steel body, ball and stem

Blow out proof stem

RTFE ball seats extend cycle life

Triple PTFE/Viton stem seal design, live loaded

Electric Actuator Standard Features

Highly visible LED light gives continuous actuator status indication

Multi-voltage capable with auto-voltage sensing

Electronic torque limiter - protects against valve jams

Anti-condensation heater

Manual override with visual valve position indicator

All electrical connections via external DIN plugs (included) - no need to remove cover

Two dry contact limit switches used to confirm open/closed valve position

Rugged IP67 weatherproof housing, CE marked

Options (see Accessories tab)
