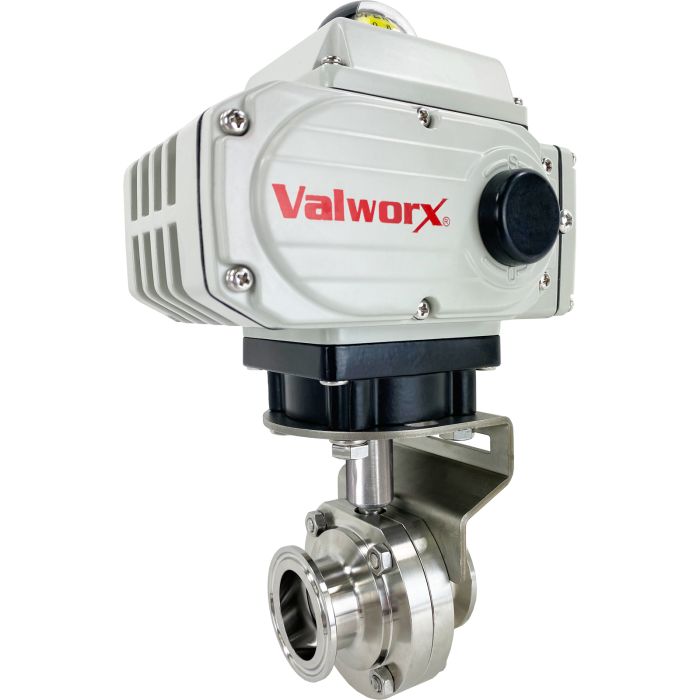

1 1/2" Sanitary Butterfly Valve, 24 VDC EPS-Positioner, Tri-Clamp
Stock #
574403
Series
5744
List Price: $1,573.10
Price: $1,258.48
- Buy 3 for $1,132.63 each
Usually Ships: 4- 6 Weeks
Valworx 574403 electric actuated sanitary butterfly valves are typically used for food, beverage, pharmaceutical, personal care and pet care applications where sanitary construction is required, as well as for utility, process and corrosive environment applications where quick clamp applications are needed.
Modbus control is available as a factory-installed option. Click on the Accessories tab for details.
Butterfly Valve Standard Features
Forged valve bodies are machined and chamfered in a single set-up for a precise fit. Single piece disc/stem with disc polished to mirror finish 32 Ra finish on all wetted surfaces EPDM seat materials meets FDA CFR 177.2600 All materials comply with FDA and USDA requirements 316L stainless steel valve body and disc for superior corrosion resistance Standard Tri-Clamp ends for sanitary connections All valves are tested per API 598 Suitable for vacuum up to 29.5inHg
Electric Actuator Standard Features
EPS-Electronic Positioning System with 4-20mA input Quarter turn operation with mechanical limits Rugged Type 4X weatherproof aluminum alloy housing Visual valve position indicator Manual override Heavy duty motor with overload protection Thermostatically controlled anti-condensation heater Analog output signal to confirm valve position Self-locking all metal gear drive, no additional brake required CSA Listed per UL429 and CSA C22.2, CE marked
Options (see Accessories tab)
Modbus control is available as a factory-installed option. Click on the Accessories tab for details.
Butterfly Valve Standard Features
Electric Actuator Standard Features
Options (see Accessories tab)
| Type | Electric Actuated Sanitary Butterfly Valve- Positioner |
|---|---|
| Actuator Voltage | 24 VDC |
| Current Rating | 1.28A (full load amps) |
| Cycle Time | 20 seconds per 90° rotation |
| Duty Cycle | 70% |
| Pipe Size ~ Tri-Clamp (inches) | 1-1/2" ~ 1-1/2" |
| Full Port Orifice Size (inches) | 1.37 |
| Cv | 80 |
| Shell Pressure | 160 PSI WOG |
| Valve Temperature Range | -67 to 302°F (-55 to 150°C) |
| Actuator Temperature Range | -13 to 131°F (-25 to 55°C) |
| Internal Finish | 32 Ra |
| Disc/Stem | 316L Stainless Steel |
| Disc Seat/Liner | EPDM |
| Enclosure | Aluminum alloy, polyester painted, SS fasteners |
| Enclosure Protection | IP67, NEMA 4, 4X weatherproof |
| Electrical Connections | Terminal strip, 1/2" NPT conduit (optional) / cable connector (included) |
| Input Control Signal | 4-20mA |
| Output signal | 4-20mA output monitoring signal (same type as input signal) |
| Valve Position Indicator | Dome Indicator |
| Manual Override | 5mm hex drive with protective cover |
| Motor Protection | Thermal overload |
| Anti-Condensation Heater | 4 watts thermostatically controlled |
| Body | 316L Stainless Steel |
| Bolts/Nuts | 304 Stainless Steel |
| Bushings | Polypropylene |
