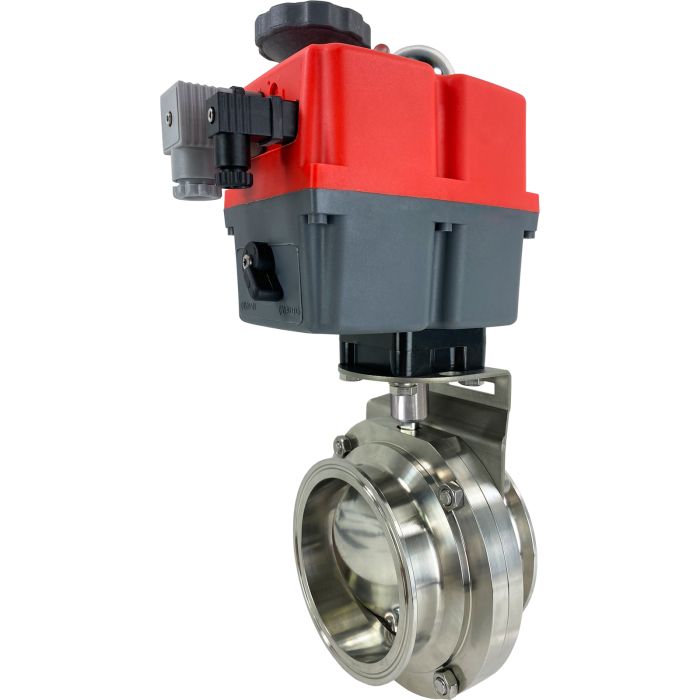

4" Sanitary Butterfly Valve, 24- 240V, Tri-Clamp
SKU
574507
Series
5745
List Price: $1,341.48
Price:
$1,073.18
- Buy 3 for $965.87 each and save 10%
Valworx 574507 electric actuated sanitary butterfly valves are typically used for food, beverage, pharmaceutical, personal care and pet care applications where sanitary construction is required, as well as for utility, process and corrosive environment applications where quick clamp applications are needed.
Butterfly Valve Standard Features
Forged valve bodies are machined and chamfered in a single set-up for a precise fit. Single piece disc/stem with disc polished to mirror finish 32 Ra finish on all wetted surfaces EPDM seat materials meets FDA CFR 177.2600 All materials comply with FDA and USDA requirements 316L stainless steel valve body and disc for superior corrosion resistance Standard Tri-Clamp ends for sanitary connections Pressure tested per API 598 Suitable for vacuum up to 29.5inHg
Electric Actuator Standard Features
Highly visible LED light gives continuous actuator status indication Multi-voltage capable with auto-voltage sensing Electronic torque limiter - protects against valve jams Anti-condensation heater Manual override with visual valve position indicator All electrical connections via external DIN plugs (included) - no need to remove cover Two dry contact limit switches used to confirm open/closed valve position Rugged IP67 weatherproof housing, CE marked
Options (see Accessories tab)
Butterfly Valve Standard Features
Electric Actuator Standard Features
Options (see Accessories tab)
| Anti-Condensation Heater | 4 watts thermostatically controlled |
|---|---|
| Body | ASTM 316L stainless steel |
| Bolts/Nuts | ASTM 304 stainless steel |
| Bushings | Polypropylene |
| Cycle Time | 29 seconds per 90° rotation (no load) |
| Disc/Stem | ASTM 316L stainless steel |
| Duty Cycle | 75% |
| Electrical Connections | DIN plugs with cable entry (included), optional 1/2" conduit plugs |
| Enclosure | Anti-corrosive polyamide, SS fasteners |
| Enclosure Rating | IP67 weatherproof, UV protection |
| Internal Finish | 32 Ra |
| Manual Override | Hand knob |
| Motor Protection | Electronic over-torque with LED status light |
| Pipe Size | 4" ~ 4" |
| Port Size | 3.8 inch orifice, Cv 800 |
| Pressure (Max) | 140 PSI WOG |
| Temperature Range | -67 to 302 °F (-55 to 150 °C) |
| Type | 2-Way Electric Actuated 24 to 240 Volts AC or 24 to 135 Volts DC |
| Valve Position Confirmation | 2 x SPST auxiliary limit switches rated 3A@125/250VAC,30VDC resistive load |
| Valve Seat | EPDM |
Digital Positioner System
-
5610E DPS-Digital Positioner System Kit 4-20mA - InstalledStock #: 561101EUsually Ships: Same DayPrice: $400.54 -
5610E DPS-Digital Positioner System Kit 0-10v - InstalledStock #: 561102EUsually Ships: Same DayPrice: $400.54
Failsafe Battery Kit
-
5610E BSR-NC Failsafe Battery Kit - InstalledStock #: 561104EUsually Ships: Same DayPrice: $422.76 -
5610E BSR-NO Failsafe Battery Kit - InstalledStock #: 561105EUsually Ships: Same DayPrice: $422.76
Connectors & Cables
-
-
Sub-Micro DIN Connector 1/2" Conduit ConnectionStock #: 588003Usually Ships: Same DayPrice: $14.64 -
-
Sub-Micro DIN Plug Connector with 16 foot CableStock #: 588007AUsually Ships: Same DayPrice: $28.32
Tri Clamp
-
4" Sanitary Butterfly Valve, Tri-Clamp, Bare StemStock #: 573807Usually Ships: Same DayPrice: $211.01 -
Electric Actuator 752 in.lbs (85Nm), 24-240VStock #: 561085EUsually Ships: Same DayPrice: $909.14 -
-
4" Sanitary Butterfly Valve Seal Kit, VitonStock #: R5740XX17Usually Ships: Same DayPrice: $67.58
