Sub-Micro DIN Connector 1/2" Conduit Connection
Stock #
588003
Series
Accessory
List Price: $18.30
Price: $14.64
- Buy 10 for $13.18 each
Usually Ships: Same Day

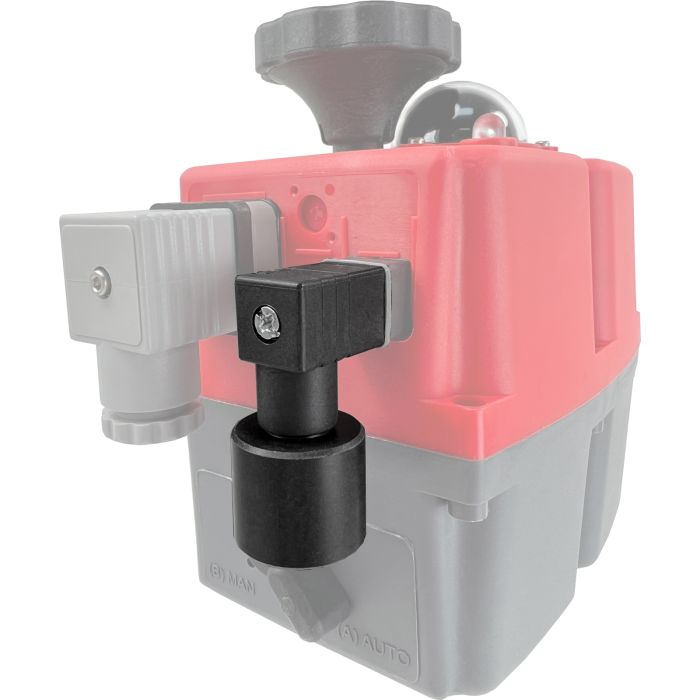

Sub-Micro plug connectors with 1/2" female conduit connection are made to DIN 43650 and ISO 4400 industry standards. These connectors offer distinct advantages over "hardwired" connections with their built in screw terminals and modular plug (unplug) design. This DIN plug will replace the existing 5610/5615 series auxiliary switch (open/close confirmation) output plug and/or the modulating plug. Plug rated IP65 and NEMA 4 for weatherproof applications. Used where 1/2" conduit connection is desired. Maximum wire size 20 gauge.
| Type | Connector Type |
|---|---|
| Disc Seat/Liner | EPDM |
| Enclosure Protection | IP67 weatherproof |
| Connector Type | ISO 43650 Form C |
| Housing | 15.5 x 15.5 mm square |
| Number of conductors | 3 |
| Pin Spacing | 9.4 mm (pin 1 to pin 2) |
| Wire Size (max) | 20/3 AWG |
