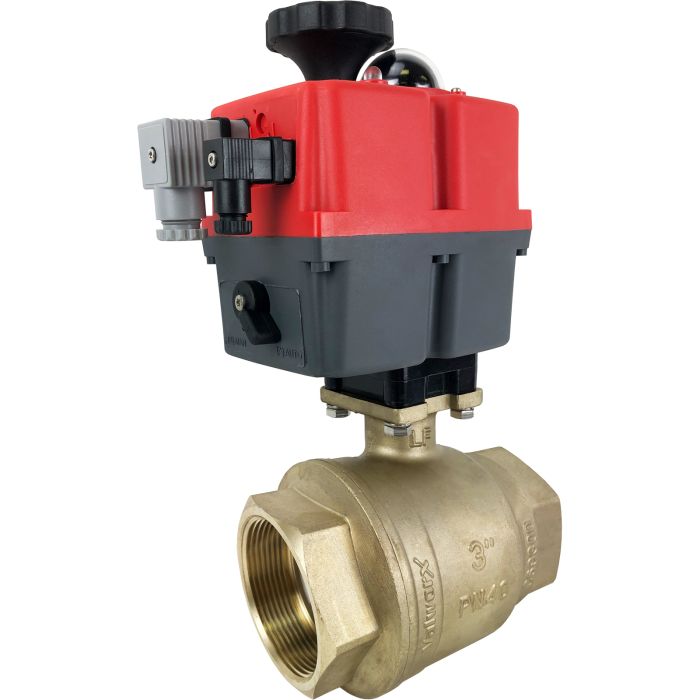

3" Electric Actuated Brass Ball Valve 24-240V

SKU
568018E
Series
5680

List Price: $1,451.12

Price: $1,160.90
  • Buy 3 for $1,044.81 each and save 10%
- +
Valworx 568018E electric actuated lead free brass ball valve is used for on-off control of water, air, oil, and other media compatible with the materials of construction. Ideal where lead free and NSF construction are required for potable drinking water as well as other industrial applications. Standard unit is power-to-open and power to close, stays in last known position with loss of power. On receipt of a continuous voltage signal, the motor runs and via a self locking flat gear drive, rotates the ball. The motor is stopped by internal cams striking limit switches. On receipt of a reversing continuous signal, the motor turns in the opposite direction reversing the valve position.

The ball valve is direct mounted to the actuator using the international standard ISO5211 mounting pad. Anti-condensation heater is standard and will help protect actuator against damage caused by condensation. Two limit switches are provided to confirm valve position. Manual override can be used to operate valve during setup or with loss of electrical power.

High temperature valve mounting kit available for extended temperature range or wall mounting applications.

Ball Valve Standard Features
  • Direct mount lead free brass valve
  • Full Port for unrestricted flow
  • 316 stainless steel ball and stem
  • Energized PTFE ball seats for lower torque and extended cycle life
  • Leak free triple PTFE/Viton stem seal design
  • Certified per NSF372 and NSF61 for use with potable/drinking water

  • Electric Actuator Standard Features
  • LED light gives continuous actuator status indication
  • Multi-voltage capable with auto-voltage sensing
  • Electronic torque limiter - protects against valve jams
  • Anti-condensation heater
  • Manual override with visual valve position indicator
  • Electrical connections via external DIN plugs (included)
  • Two dry contact limit switches used to confirm open/closed valve position
  • IP65 weatherproof enclosure, CE marked

  • Options (see Accessories tab)
    More Information
    Actuator Temperature Range-4 to 158 °F (-20 to 70 °C)
    Anti-Condensation Heater4 watts thermostatically controlled
    Ball and Stem316 Stainless Steel
    Ball SeatsPTFE (Teflon) energized with FKM (Viton)
    Current Rating0.33A @ 110VAC, 0.18A @ 240VAC, 1.50A @ 24VAC; 1.22A @ 24VDC (full load amps)
    Cycle Time29 seconds per 90° rotation (no load)
    Duty Cycle75%
    Electrical ConnectionsDIN plugs with cable entry (included), optional 1/2" conduit plugs
    EnclosureAnti-corrosive polyamide, SS fasteners
    Enclosure RatingIP67 weatherproof, UV protection
    Manual OverrideHand knob
    Max Fluid Velocity10 feet per second
    Motor ProtectionElectronic over-torque with LED status light
    Pipe Size3" NPT female
    Port SizeFull Port, orifice 3.0 inches, Cv 551
    Pressure Rating300 PSI (see P/T chart), 25 PSI saturated steam with high temp kit, vacuum service to 29" Hg
    Stem SealsPTFE (Teflon) with dual FKM (Viton) seals
    TypeElectric Actuated Brass Ball Valve- Multivoltage
    Valve BodyLead Free Brass C69300
    Valve Position Confirmation2 x SPST auxiliary limit switches rated 3A@125/250VAC,30VDC resistive load
    Valve Temperature Range-4 to 366 °F (-20 to 185 °C)
    Voltage24 to 240 Volts AC/DC (1 ph,50/60Hz) auto-voltage sensing
