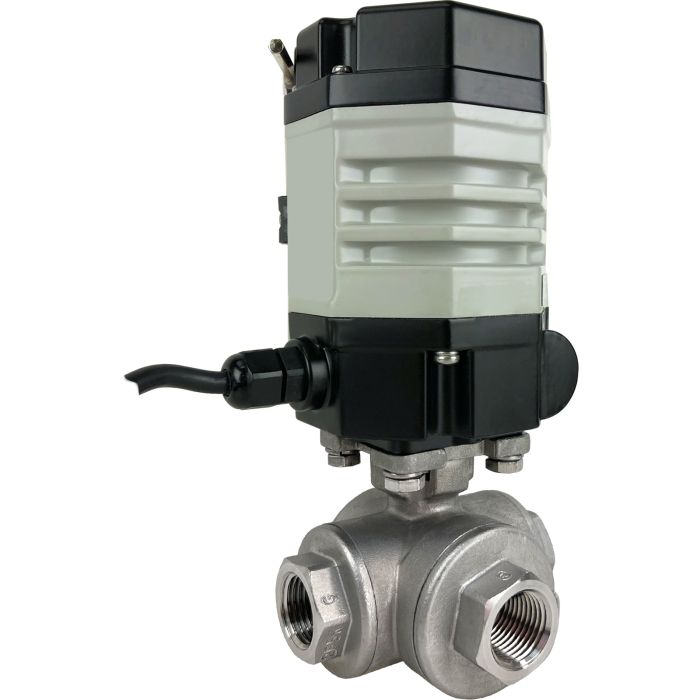

1/2" Compact Electric 3-Way Stainless T-Diverter Valve 24 VDC

Valworx 566846C compact electric actuated 3-way full port stainless steel ball valve is used to control the flow of water, air, oil, and other media compatible with the materials of construction. These valves have a T-port diverter flow path. There is no flow shutoff position with this type valve. Actuator uses power-to-open (position 2) and power-to-close (position 1), stays in last known position with loss of power. On receipt of a continuous voltage signal, the motor runs and via an all metal gear drive rotates the ball one quarter turn. The motor is automatically stopped by internal cams striking limit switches. On receipt of a reversing continuous signal, the motor turns in the opposite direction reversing the valve position.

The ball valve is direct mounted to the actuator using the international standard ISO5211 mounting pad. Rugged unique integral motor/housing design provides higher torque in a very small package. Two auxiliary limit switches are provided to confirm valve position.

High temperature valve mounting kit available for extended temperature range or wall mounting applications.

Ball Valve Standard Features

1000 PSI working pressure (see P/T chart)

Direct mounting valve per ISO5211

Full port design

316 stainless steel body, ball and stem

Four ball seat design allows for Full Pressure at any port

RTFE ball seats for extended cycle life

Triple PTFE/Viton stem seal design, live loaded and adjustable

Electric Actuator Standard Features

Quarter turn operation

Rugged Type 4X weatherproof aluminum alloy housing

Visual valve position indicator

Manual override

Heavy duty motor with overload protection

Two auxiliary limit switches to confirm valve position

All metal gear drive

CSA Listed per UL429 and CSA C22.2, CE mark

Options (see Accessories tab)
