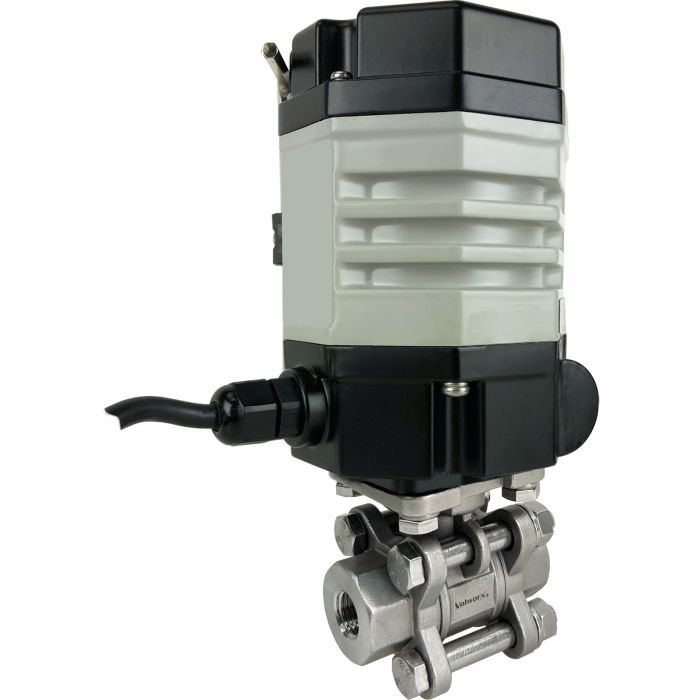

1/4" Compact Electric Actuated 3-Piece Stainless Ball Valve 24 VDC

Valworx 566922A compact electric actuated 3-piece stainless steel ball valve is used for on-off control of water, air, oil, and other media compatible with the materials of construction. 3-piece swing out design for easy cleaning and maintenance. Standard unit is power-to-open (position 1) and power-to-close (position 2), stays in last known position with loss of power. On receipt of a continuous voltage signal, the motor runs and via a metal gear drive rotates the ball. The motor is stopped by internal cams striking limit switches. On receipt of a reversing continuous signal, the motor turns in the opposite direction reversing the valve position.

The valve is direct mounted to the actuator using the international standard ISO5211 mounting pad. Rugged unique integral motor/housing design provides higher torque in a very small package. Actuators are tested to rigorous UL and CSA standards and certified by CSA.

High temperature valve mounting kit available for extended temperature range or wall mounting applications.

Ball Valve Standard Features

1000 PSI working pressure (see P/T chart)

Direct mounting valve per ISO5211

Full port for unrestricted flow

3-piece swing-out design

316 stainless steel body, ball and stem

Blow out proof stem

RTFE ball seats extend cycle life

Triple PTFE/Viton stem seal design, live loaded and adjustable

Electric Actuator Standard Features

Quarter turn operation

Rugged Type 4X weatherproof aluminum alloy housing

Visual valve position indicator

Manual override

Heavy duty motor with overload protection

Two auxiliary limit switches to confirm valve position

All metal gear drive

CSA Listed per UL429 and CSA C22.2, CE mark

Options (see Accessories tab)
